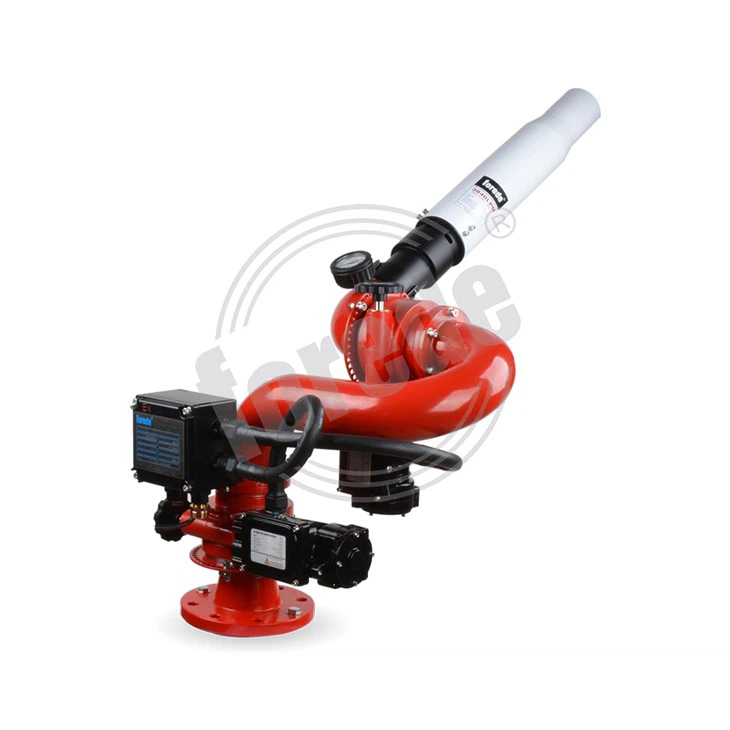

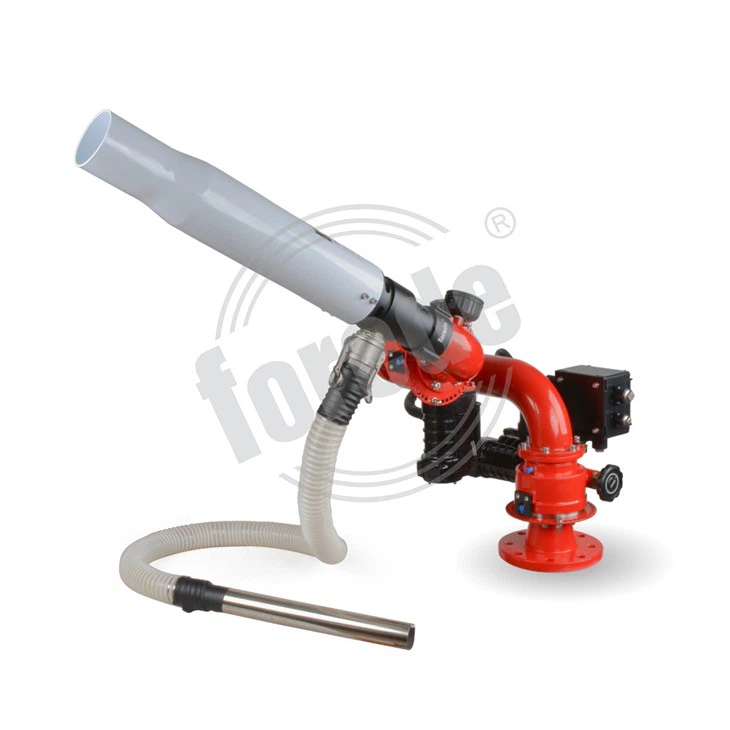

RC Fixed Explosion Proof Fire Water Foam Monitor
RC fixed explsoion proof fire water foam monitor are made of stainless steel, with a constant foam nozzle, which makes RC fixed explsoion proof fire water foam monitor can reach best and put fire out quickly. With two explosion-proof motor, RC fixed explsoion proof fire water foam monitor can use in a high risk area. The max.flow rate can reach 4800LPM, a large flow can put fire out better.
1) SS304 Stainless Steel construction;
2) Constant flow rate,64/80 LPS;
3) Vertical travel of 135°,from -60° to +90°;
4) 360° rotation horizontally;
5) Available for water and foam both;
6) Explosion proof class IICT4;
7) Optional power supply 12V/24V DC(optional), or 100-380 V AC;
Model Number | XFS2.AP064 | XFS2.AP080 |
Flow Rate | 3840 LPM | 4800 LPM |
Working Pressure | 9.5 bar | 8 bar |
Water Max. Reach | 75 meters | 85 meters |
Foam Max. Reach | 70 meters | 80 meters |
Max Range Of Motion | -45° to +90° Vertically, 360° Rotation,other degree available | |
Turing Speed | 24°/Second rotation,10°/Second vertical | |
Power Supply | DC 24V is standard | |
Power Consumption | ≤200W | |
Waterway Size | 3" (80mm) | |
Monitor Outlet | 3" (80mm) NH | |
Monitor Inlet | Flange 4" ANSI 150# is standard,other size and standard available | |
Material | Monitor - SS304 Stainless Steel Nozzle - Hard coated anodized aluminium alloy (SS304 optional) | |
FAQ
Q:How many agents the company currently has overseas?
Currently we have 2 agents abroad. One in Israel and one in Maldives.
Q: Is the sample provided for free?
A few small products like sprinkler decorative covers can be provided for free, but the buyer needs to pay for the shipping. Other products need to be confirmed according to the specific situation.
Q:Can I have a sample order?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Order Information:
Dear Customer,
Before ordering, please contact with our sales team to discuss order information, such as Model Number, Flow Rate, Material, Control Ways, Package,Etc.
If you have any other requirements or wanna know more info about our products, welcome to contact as well. Our Sales team and Technical Department are willing to support you.
