Products Description

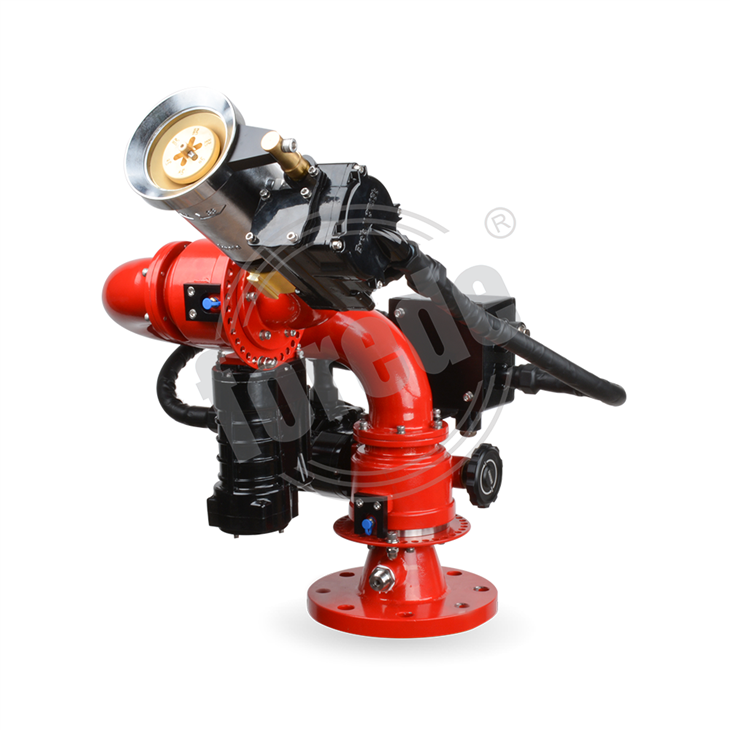

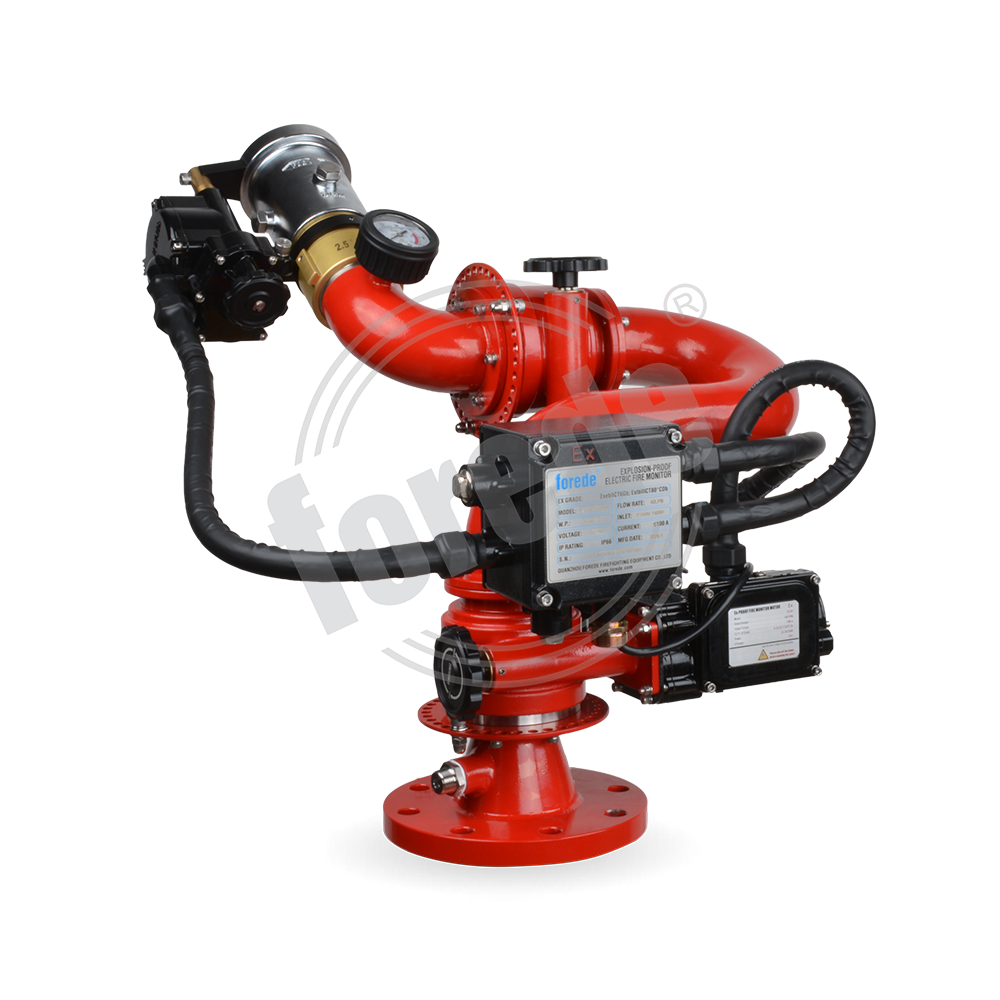

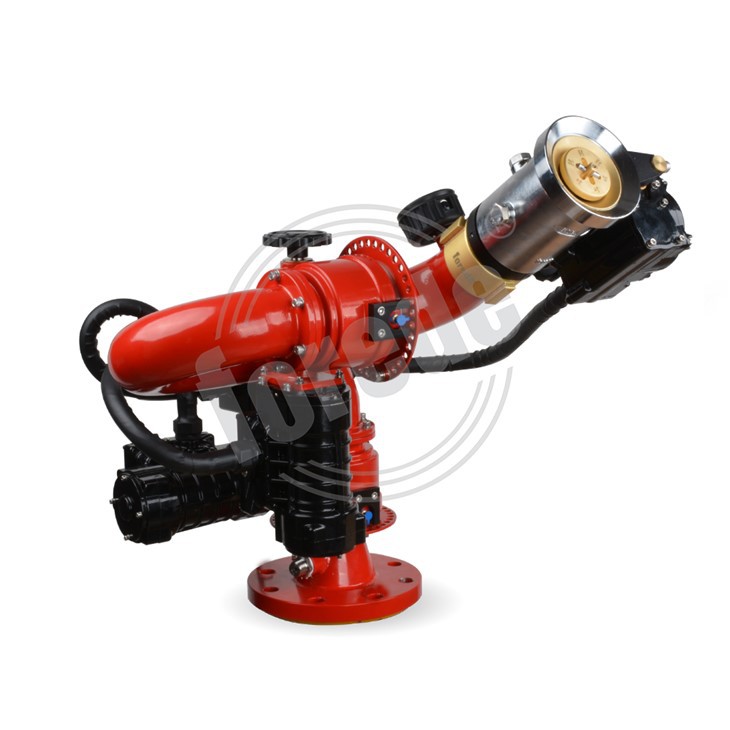

Rotary Fire Monitor Water can be rotated 360 degrees, covering a wide range, can be quickly projected to any area of the fire site, timely elimination of fire sources, prevent fire spread. It can control water flow from a distance, handle fires from a safe distance, and reduce the risk of injury to firefighters. At the same time, Rotary Fire Monitor Water can be remotely controlled through the pipeline system, which can be more comfortable and convenient to operate the equipment and quickly respond to various emergency situations.
Products Parameters
|
Model Number |
XFS1.SF020 | XFS1.SF030 | XFS1.SF040 | XFS1.SS040 |
|---|---|---|---|---|
| Flow Rate |
1200 LPM Constant Flow
|
1800 LPM Constant Flow | 2400 LPM Constant Flow |
1200-1800-2400 LPM Selectable Flow |
|
Working Pressure |
8 Bar | |||
| Max. Reach | 50 meters | 60 meters | 65 meters | 50-65 meters |
| Max Range Of Motion |
-90°to+90° Vertically, 360° Rotation,other degree available
|
|||
| Max.Fog Angle | 120° | |||
| Power Supply |
DC 24V is standard
|
|||
| Power Consumption |
≤200W ,Led Light 50W
|
|||
| Waterway Size |
2 1/2"(65mm)
|
|||
| Monitor Outlet |
2 1/2"(65mm)NH male thread
|
|||
| Monitor Inlet |
Flange2.5" ANSI 150# is standard,other size and standard available
|
|||
| Material |
Monitor&Nozzle-Hardcoatedanodizedaluminiumalloy
|
|||
| Control System |
ICS-EX-01 or VMCS-01
|
|||
monitor Description
