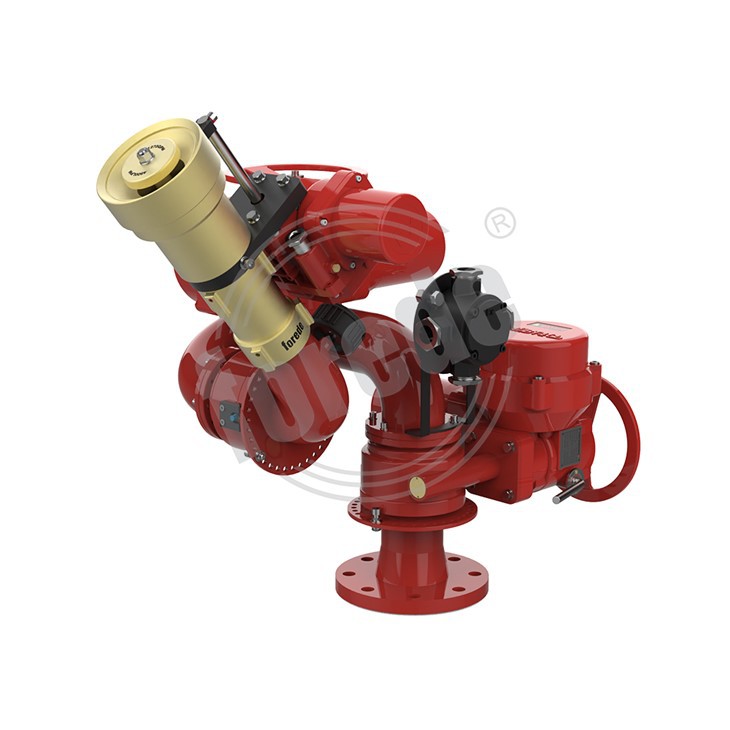

Fire Monitor Information

Fire Monitor Information
Product Introduction:
The Fire Fighting Water Monitor is an important piece of firefighting equipment that is designed to help protect our homes, offices, and communities. Its ability to control and extinguish fires quickly makes it a vital component of any firefighting operation. With ongoing advances in technology, we can expect even higher levels of safety and efficiency in the future.
Send Inquiry
Description
Technical Parameters



4



Precautions for using fire cannons.

Fire cannons are an exciting and entertaining way to celebrate special events or festivals. However, they can also be dangerous if not handled with caution. Here are some precautions to keep in mind when using fire cannons.



First and foremost, it is crucial to follow all safety guidelines provided by the manufacturer of the fire cannon. Failure to do so can result in serious injury and damage to property.



It is essential to position the fire cannon properly and ensure that it is stable before lighting it. A fire cannon should be set up on a flat, even surface, and the base should be secured to prevent it from tipping over.



Before firing the cannon, it is important to clear the area around it of any flammable materials or objects. This includes anything that could be ignited by a spark or flame, such as grass, leaves, or branches.



It's essential to have a fire extinguisher handy in case of an emergency. It is also a good idea to have a bucket of water nearby to douse any flames quickly.



 product parameters
Flow Rate
9000/10800/12000 LPM Automatic Nozzle
Working Pressure 12 Bar
Max.Fog Angle 120º
Max. Reach @ 8 bar
100/105/110 meters
Max Range Of Motion
-45° to +90° Vertically, 340° Rotation,other degree available
Power Supply
AC 220V is standard
Power Consumption
≤300W
Waterway Size
6''
Monitor Outlet
6'' Flange
Monitor Inlet
Flange 6" ANSI 150# is standard,other size and standard available
Material
Monitor - SS304 stainless steel is standard,SS316 is available
Nozzle - Hard coated anodized aluminium alloy
Control System
ICS-01 or VMCS-01






do you have any question?

2



Q. Do your offer free sample for your clients?

A: Yes, we offer free sample for many of the products



Q. What's the MOQ of your products?

A: Our MOQ is one (1) piece/set.



Q. What's your payment terms?

A: We accept T/T, L/C, Western Union, Paypal,etc.

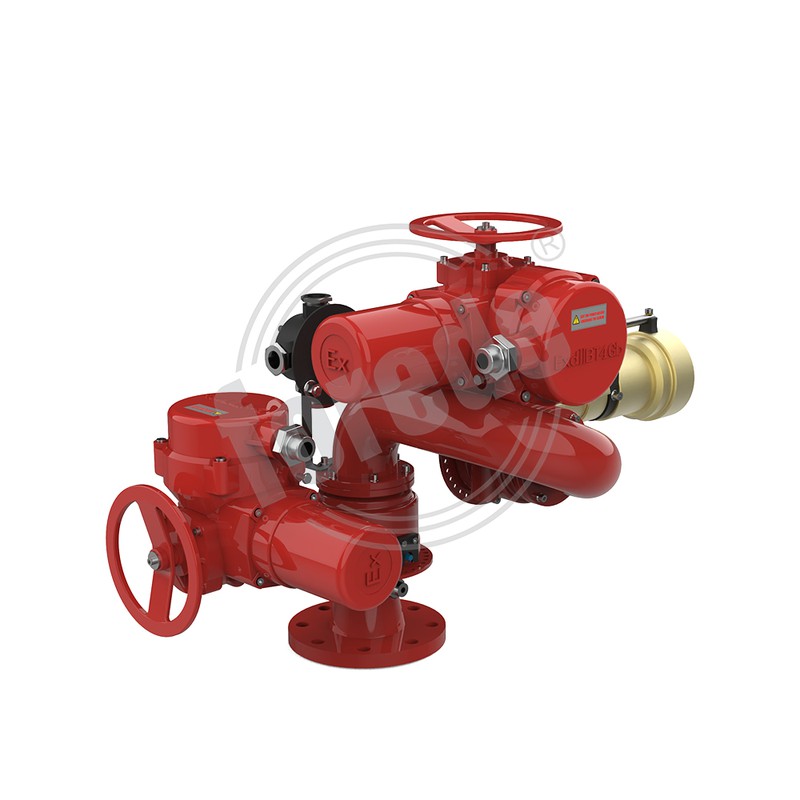

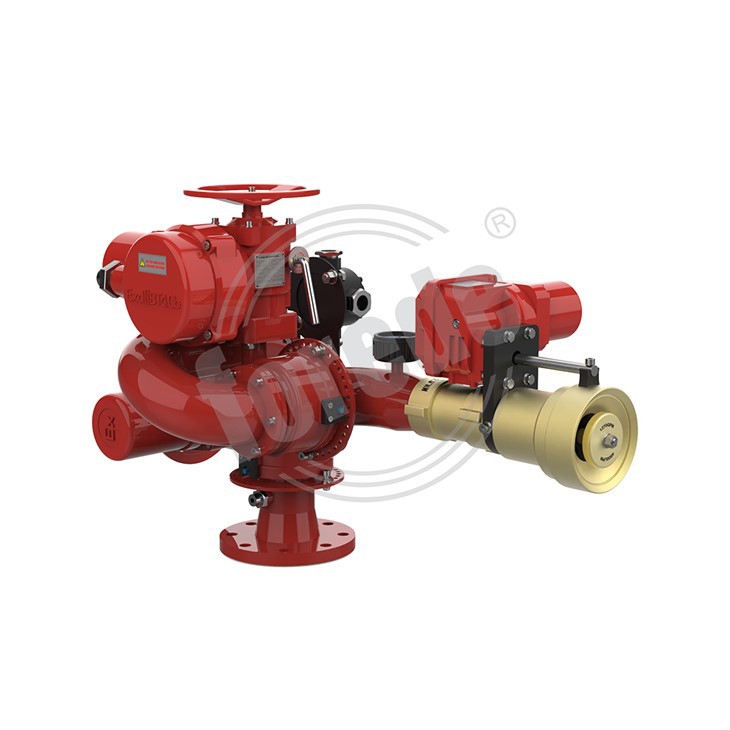

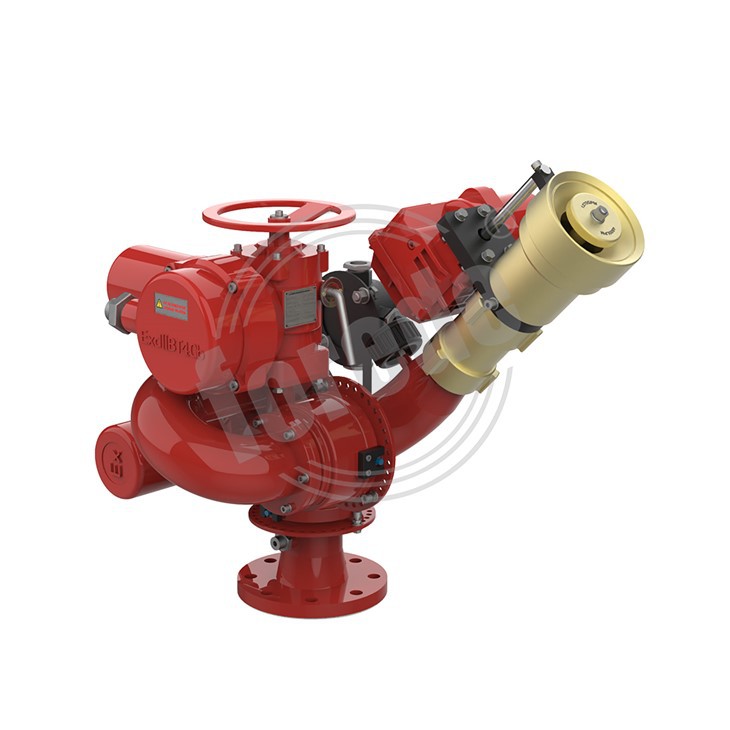

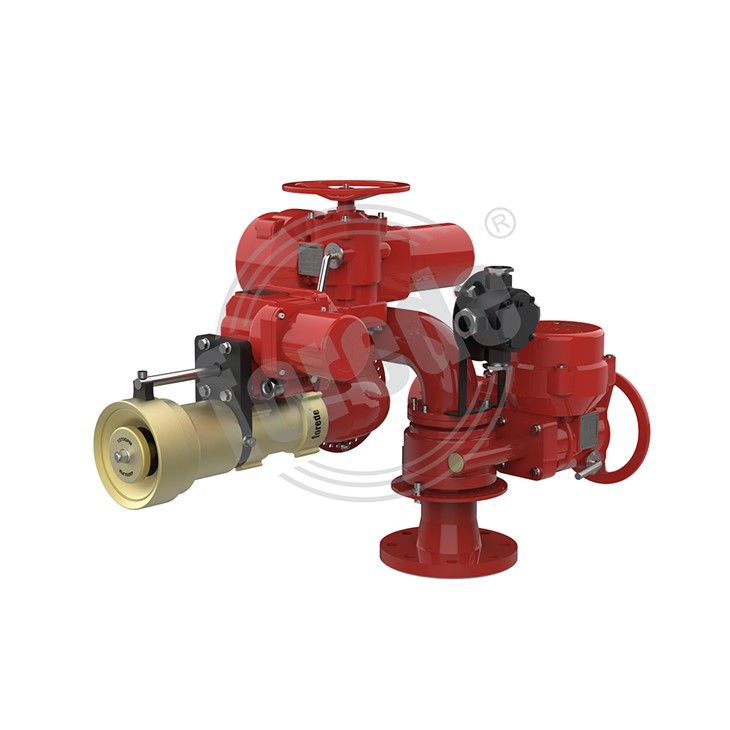

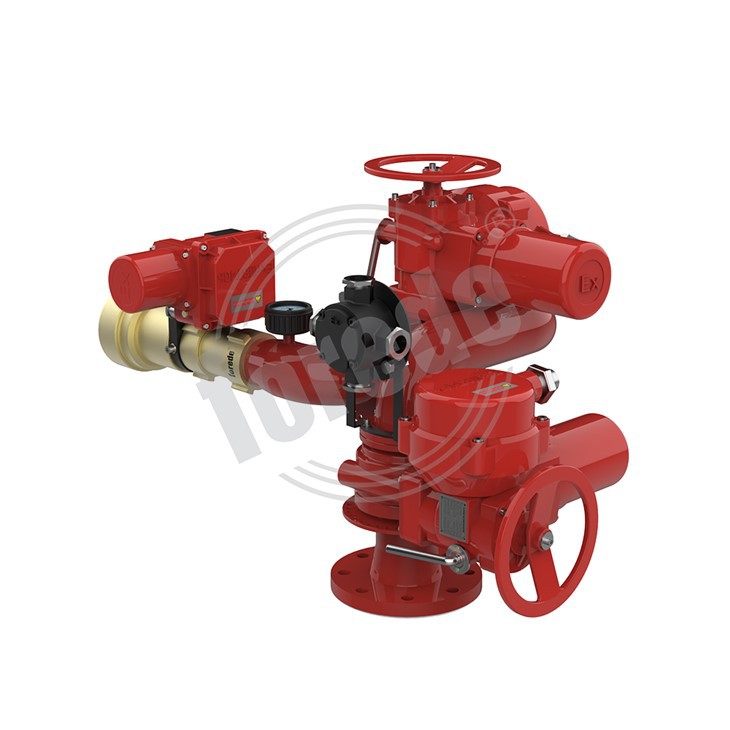

forede® Fire Monitor System Series
图片尺寸 210x210
Title
Title
Title
Title
图片尺寸 210x210
Title
Title
Title
Title







forede® Main Products

How to contact us?
How To Cooperate With Us?

Our address

Nan'an City, Quanzhou City Fujian PRC-china

Phone Number

2





Hot Tags: fire monitor information, China, manufacturers, suppliers, wholesale, price, Pistol Foam Branch Pipe, Butterfly Valves, Adjustable Flow Fire Nozzle, Alarm Check Valve For Sprinkler System, Extended Coverage Fire Sprinklers, Gallonage Fire Nozzle



Features:
304L stainless steel construction;
- Automatic monitor nozzle;
- Vertical travel of 135°,from -45°to +90°;
- 340°rotation horizontally;
- Electric control jetting Pattern: Straight stream,Fog;
- Electric.driver and control unit box are waterproof;
- Optional power supply 24V DC,or 100-220 V AC.
