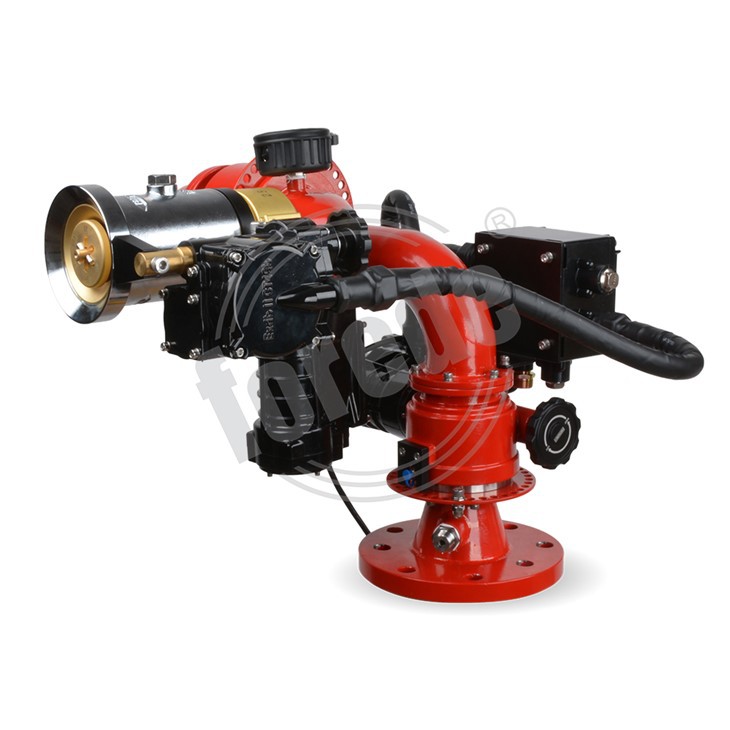

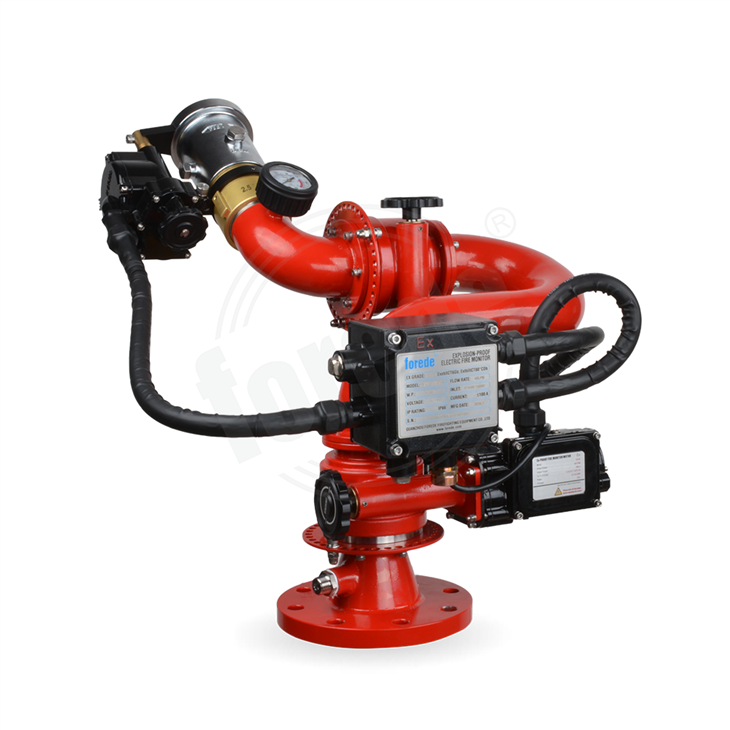

An Explosion Proof Remote Control Fire Monitor is a crucial piece of equipment that plays a vital role in preventing and fighting fires in potentially hazardous environments. This advanced firefighting tool is designed with explosion-proof components, making it suitable for use in combustible atmospheres such as oil rigs, chemical plants, and other industrial sites.
This remote-controlled fire monitor allows firefighters to stand at a safe distance while directing powerful jets of water or foam at the flames. It is equipped with advanced technologies such as infrared cameras, which can detect heat signatures from a distance, allowing them to accurately aim their nozzles with precision.
Max.Flow Rate
Flow Style
Working Pressure
Max. Fog Angle
product parameters
|
Flow Rate
|
1200/1800/2400 LPM Constant or 1200-1800-2400 Selectable Flow
|
|
Max. Reach @ 8 bar
|
53/60/65/53-65 Meters
|
|
Working Pressure
|
8 Bar |
|
Max Range Of Motion
|
-90° to +90° Vertically, 360° Rotation,other degree available
|
|
Turing Speed
|
12°/Second rotation,8°/Second vertical
|
|
Power Supply
|
DC 24V is standard
|
|
Power Consumption
|
24V @ 7.5A
|
|
Waterway Size
|
2 1/2" (65mm)
|
|
Monitor Outlet
|
2 1/2" (65mm) NH male thread
|
|
Monitor Inlet
|
Flange 2.5" ANSI 150# is standard,other size and standard available
|
|
Material
|
Monitor - SS304
|
|
Control System
|
ICS-EX-01 or VMCS-01
|
do you have any question?
Q. Do your offer free sample for your clients?
A: Yes, we offer free sample for many of the products
Q. What's the MOQ of your products?
A: Our MOQ is one (1) piece/set.
Q. What's your payment terms?
A: We accept T/T, L/C, Western Union, Paypal,etc.
Q. How long is the delivery time?
A: Usually around 15 days after payment.
