Chain Operated Fire Monitor

Chain Operated Fire Monitor
Product Introduction:
The forede® Brand Chain operated fire monitors are used in all those situations where it is required to elevate a manual monitor and at the same time it is preferred to relocate the monitor controls at ground level. In such cases the required towers are designed in order to allow for the monitor controls to be relocated at ground level without interfering with their structure. For this reason, the chain operated monitors structure are not intended to be climbed for operational purpose.
Send Inquiry
Description
Technical Parameters
Products Description
20260530161132901163

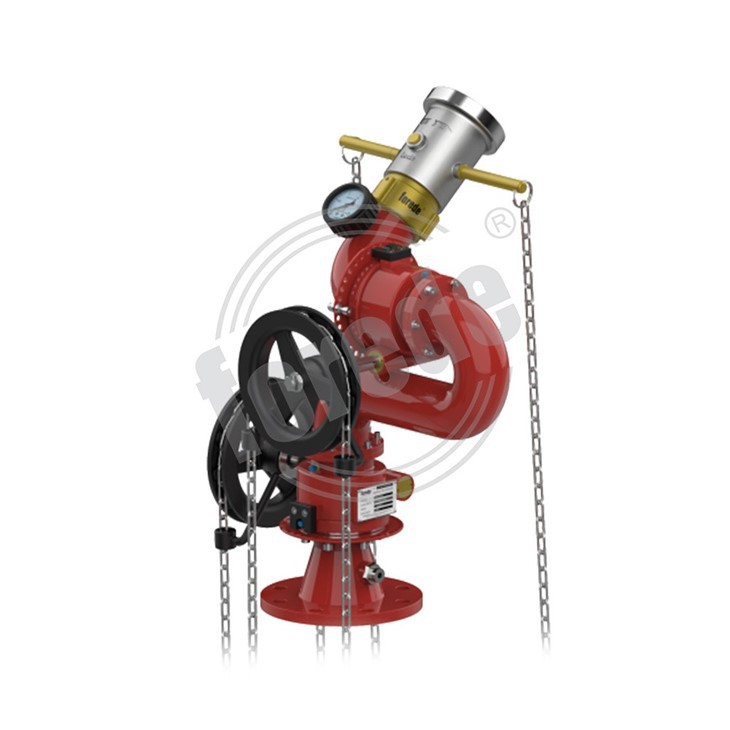

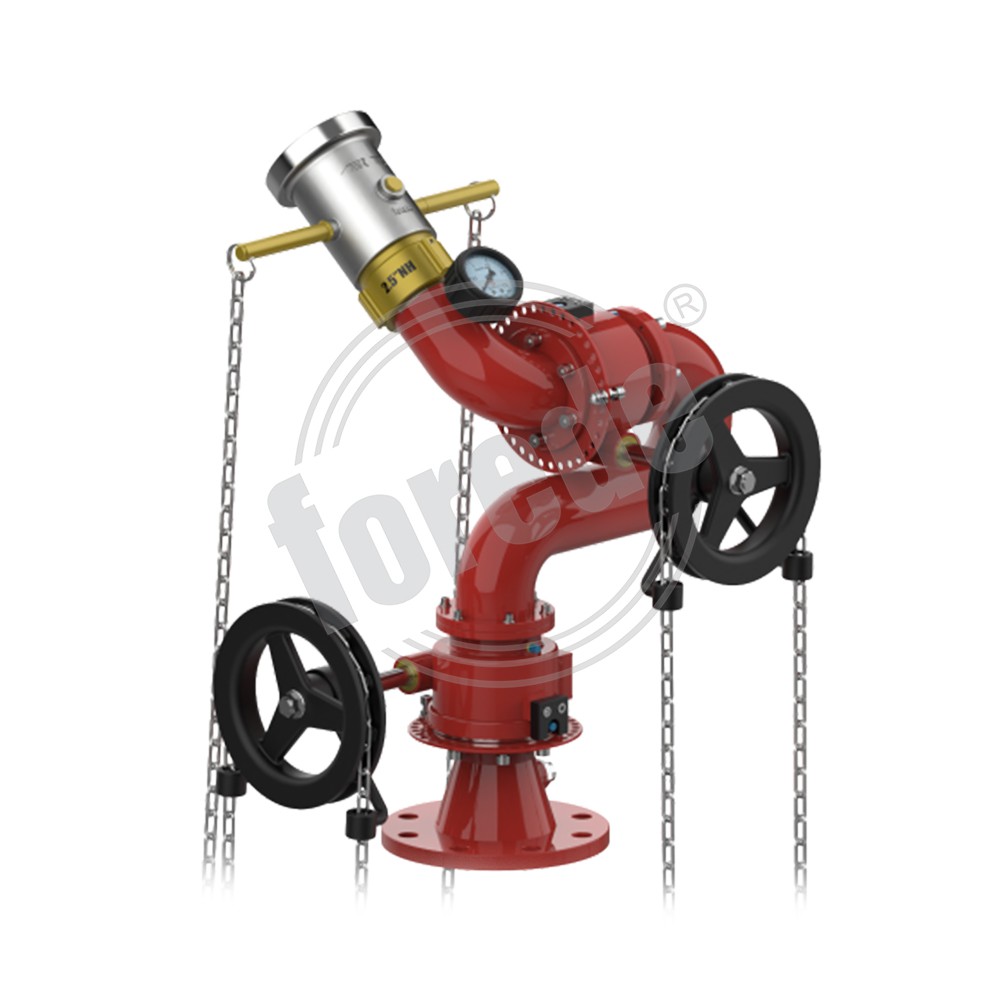

forede® Chain Operated Fire Monitor

The forede® Brand Chain operated fire monitors are used in all those situations where it is required to elevate a manual monitor and at the same time it is preferred to relocate the monitor controls at ground level. In such cases the required towers are designed in order to allow for the monitor controls to be relocated at ground level without interfering with their structure. For this reason, the chain operated monitors structure are not intended to be climbed for operational purpose.



Chain Operated Fire Monitor is a highly efficient and reliable firefighting device designed to deliver powerful streams of water or fire suppressant to control and extinguish fires quickly. Utilizing a robust chain mechanism, this monitor allows for precise and smooth remote operation, enabling firefighters to direct the flow exactly where it is needed without exposing themselves to danger.



Engineered for durability and performance, Chain Operated Fire Monitors are ideal for a variety of applications, including industrial sites, oil refineries, chemical plants, and large warehouses. Their strong construction ensures they can withstand harsh environments while maintaining optimal functionality.



Products Features

 Body Material: Stainless Steel 304/316

 Flow Rate: 1200/1800/2400 LPM

 Jetting Pattern:Straight stream,fog

 Inlet:3"/4" BS4504 flange


Technical Parameter



Model Number

WFS1.SF020 WFS1.SF030 WFS1.SF040
Flow Rate 1200 LPM 1800 LPM 2400 LPM

Working Pressure

8 bar

8 bar 8 bar
Water Jetting Range 50 m

60 m

65 m
Body Material Stainless Steel 304/316

Nozzle

Material

Stainless Steel 304/316 and Brass
Flange Inlet 3"/4" BS4504



FAQ

Q: What is a Chain Operated Fire Monitor?

A: A Chain Operated Fire Monitor is a water or foam delivery device controlled by a chain mechanism, designed to accurately direct firefighting streams to protect lives and property.

Q:How does it work?

A: It uses a durable chain system to rotate and elevate the monitor smoothly, allowing firefighters to adjust the direction and flow of water easily and effectively.

Q:What are the main benefits?

A: Reliable, simple to operate, and durable, these monitors provide precise control with minimal effort, enhancing firefighting efficiency and safety.

Q:What maintenance is required?

A: Routine checks and lubrication keep the chain and moving parts smooth and ready for action, promoting long-term reliability.

Q:Is this product suitable for industrial use?

A: Yes, it's perfect for industrial settings, such as factories, warehouses, and large facilities, where reliable fire control equipment is crucial.
