Products Description
Overview

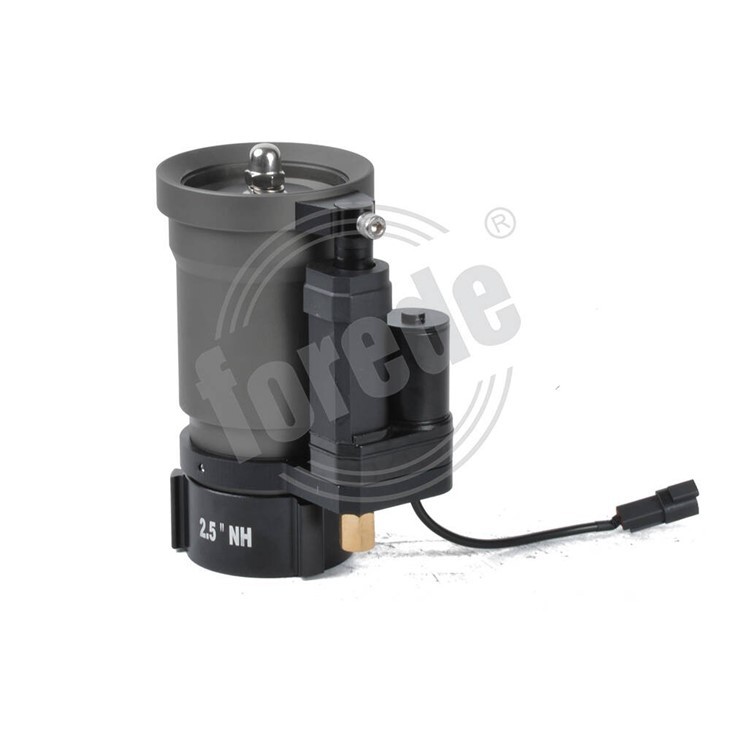

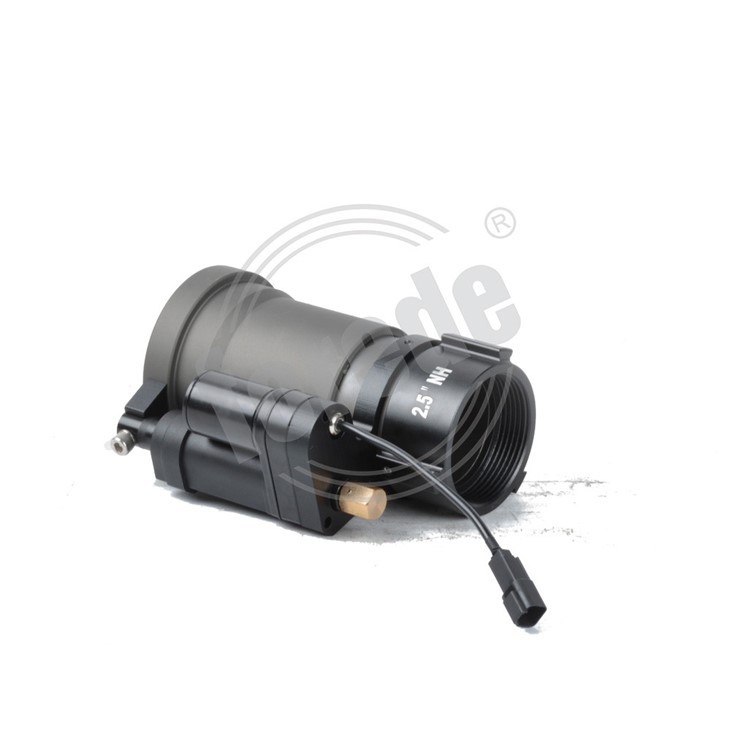

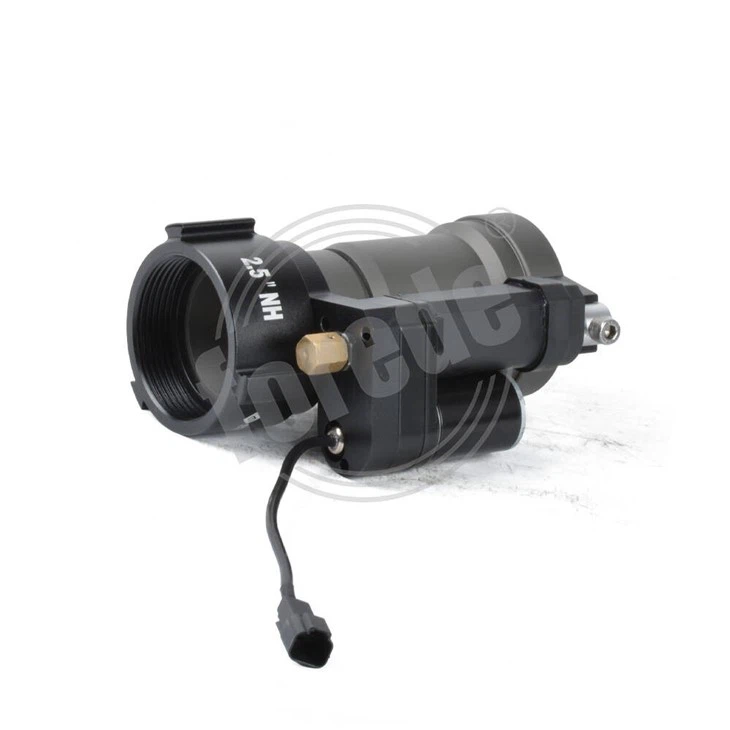

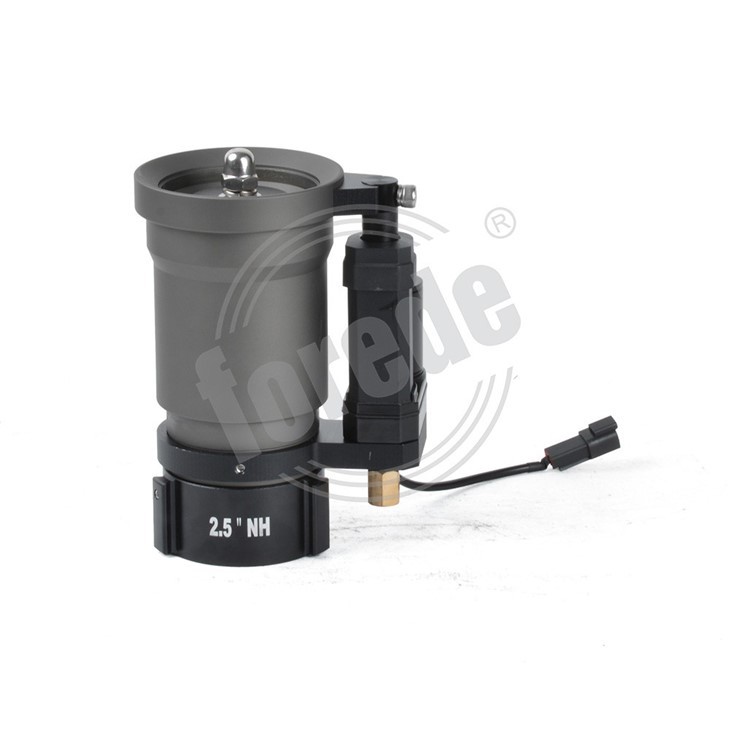

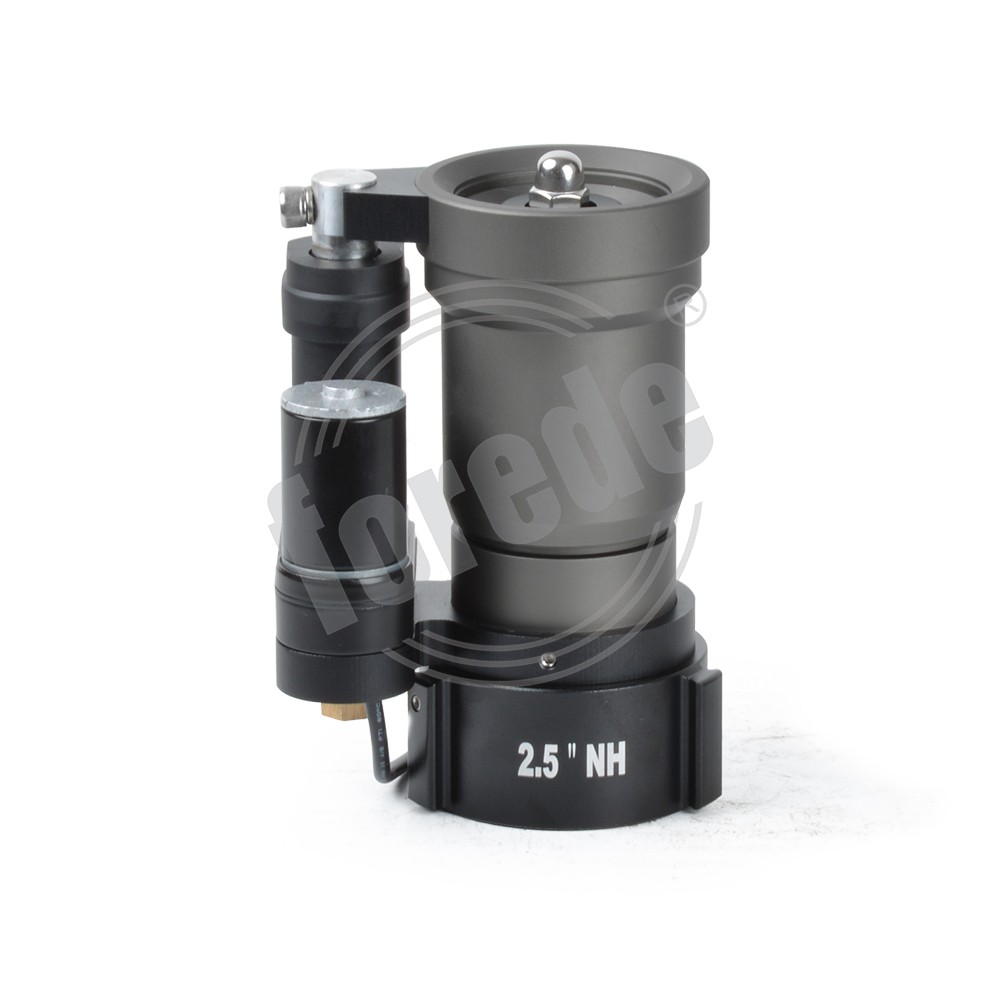

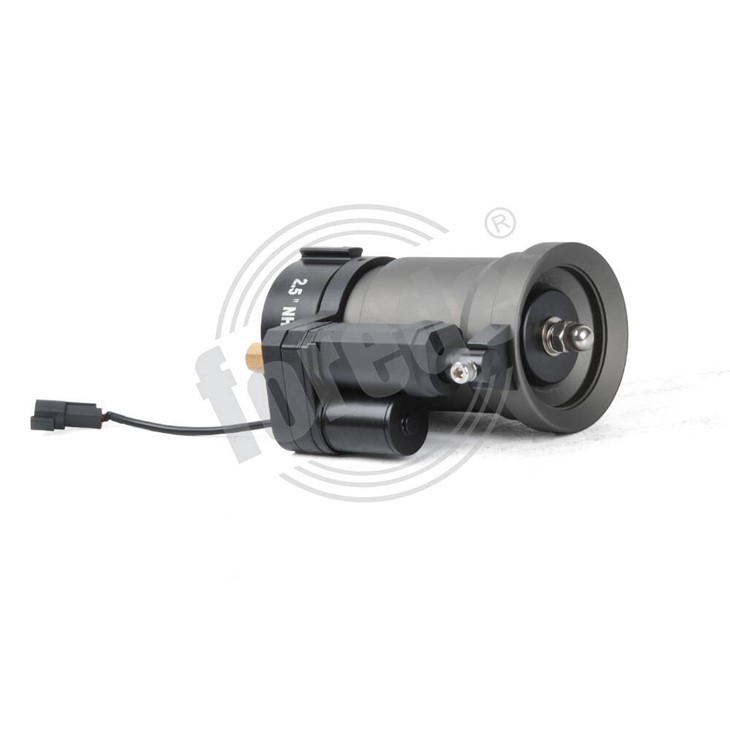

forede® EAF040 Aluminum cannon nozzle (also called a monitor nozzle) is the discharge component of a water cannon or fire monitor. It controls the shape, range, and flow rate of the water stream expelled under pressure.
Aluminum cannon nozzle is a high-flow, directional nozzle mounted on a swivel/boom that throws a concentrated jet or fan of water for firefighting, dust suppression, washing, or irrigation from a vehicle-mounted pump.
Features
Production Name: Aluminum cannon nozzle
Flow Rate: 20-30-40 LPS Selectable
Jetting Pattern: Straight stream, Fog
Max. Reach: 65 meters
Products Description
forede® water truck cannon nozzle
|
Model Number |
EAF040 | |||
|
Flow Rate |
40 LPS Selectable Flow | |||
|
Working Pressure |
8 Bar |
|||
|
Max. Reach |
65 meters @ 2400 LPM |
|||
|
Max. Fog Angle |
120° |
|||
|
Material |
Hard Anodized Aluminum Alloy |
|||
|
Monitor Inlet |
2.5" NH Female |
|||
|
Flow Pattern |
Selectable |
|||
FAQ
Q: What are its advantages over brass/stainless steel?
Lightweight：30–50% lighter than brass, easy to install/operate.
Corrosion-resistant：Type III hard-coat anodized(≥50μm), anti-rust for seawater/harsh environments.
Cost-effective：Lower cost than stainless steel, with sufficient strength.
Good heat dissipation：Aluminum conducts heat well, reducing thermal deformation risk.
Q: Is it suitable for seawater/foam use?
Yes for both. The thick anodized layer resists saltwater corrosion and foam concentrate chemicals. Rinse with fresh water after seawater/foam use to extend life.
Q: How to maintain the aluminum cannon nozzle?
After each use：Flush with clean water; remove debris/foam residue.
Regular inspection：Check for cracks, dents, or anodizing peeling.
Seal check：Replace rubber seals every 6–12 months(or if leaking).
Lubrication：Apply silicone grease to threads/rotating parts(avoid petroleum-based grease).
Storage：Keep in a dry, ventilated place; avoid direct sunlight/chemicals.
Q: How do I choose the right nozzle for my task?
Identify the primary task: dust control favors fog/spray; long-distance reach favors fixed jet.
Match flow and pressure: ensure truck pump can supply required flow at pressure.
Check materials and corrosion resistance: corrosive environments need stainless or coated parts.
Control needs: remote or automated targeting requires motorized or servo control.
Weight & footprint: verify truck deck load and mounting space.
Q: Installation basics of water truck cannon nozzle
Verify inlet size and adaptors before installation.
Mount on a reinforced pedestal with proper bolts and locking hardware.
Ensure piping and supports accommodate pipe forces and vibration.
Install isolation valves and a drain to protect nozzle when not in use.
Electrically bond/ground metal components if required by local code.
