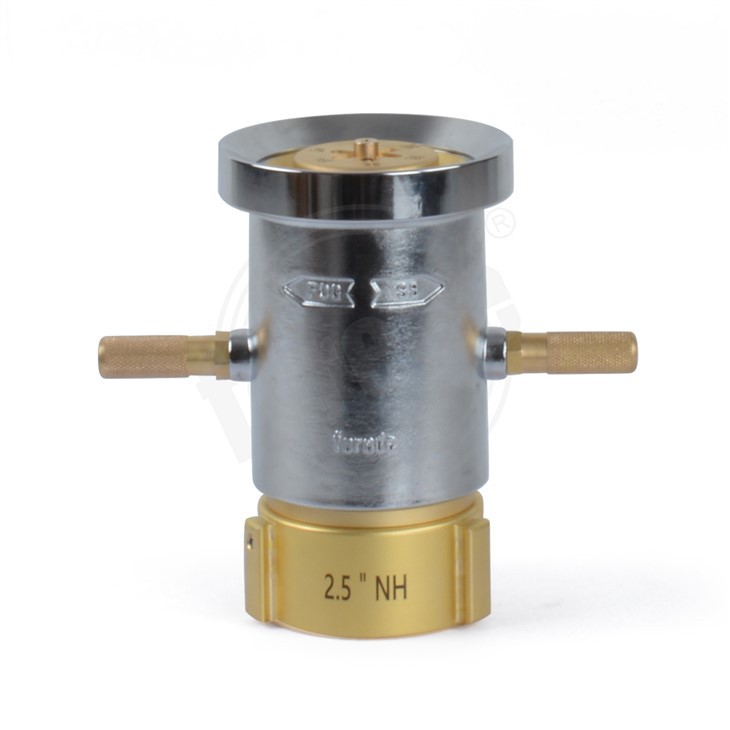

The forede® Brand MBS040 Brass Fire Monitor Nozzle In the realm of fire safety, every second counts and every tool plays a vital role. Among these indispensable tools, the Brass Fire Monitor Nozzle stands out as a symbol of strength, durability, and efficiency. Crafted with precision and designed to perform under the most demanding conditions, this nozzle is a trusted ally for firefighters and safety professionals worldwide.
One of the notable advantages of the brass construction is its excellent resistance to corrosion and wear. This ensures that the nozzle maintains its integrity and functionality even after prolonged use and exposure to harsh environments. The robust nature of brass guarantees a long service life, providing users with confidence and peace of mind during critical operations.
The MBS040 Brass Fire Monitor Nozzle delivers an impressive range and control of water flow, enabling rapid and effective response to fire outbreaks. Its ergonomic design allows for easy handling and precise direction of high-pressure water streams, maximizing firefighting efficiency while minimizing water wastage. This precision is crucial in protecting lives, property, and the environment.
Additionally, the MBS040 Brass Fire Monitor Nozzle can be seamlessly integrated into existing firefighting systems, offering versatility and adaptability. Whether deployed in industrial settings, maritime environments, or urban firefighting scenarios, it proves to be a reliable asset that enhances overall safety measures.
01
Flow Rate Baffle Adjustment, Easy Flow Rate Adjust
The MBS040 nozzle comes with three standard flow rate, supporting flexible flow switching from 1200LPM/1800LPM/ 2400LPM by adjust the flow rate baffle, selectable flow with a fully machined waterway that ensures excellent stream quality.
02
Compact, Solid, Straight Steam With Far Reach And Fog
With bulid-in stream shapers, style MBS040 master stream nozzle forming a tight, solid straight water steam to have an far reach,with narrow and wide fog pattern, Pattern easily changed under flowing conditions from straight stream to 100° fog.
03
Havey Duty Brass Construction
The monitor nozzle core & shell,baffle,shapers,NH couplings are all made by brass material, control handle material is stainless steel 304, which is durable, pressure-resistant and anti-corrosion for corrosive equipment applications.
Durable heavy duty brass construction for corrosive equipment applications
Simple,rugged nozzle with superior stream quality and reach.
Powerful,steady, concentrated,solid stream and fog.
Customized to meet different flow rate @ different working pressure.
Extremly low maintenance, high quality components.
Adjust the flow rate by changing the flow rate baffle.
Suitable for most of fire monitor assembly of forede brand.
Build-in shape for incredible reach and stream quality.
Simply and qucikly twist the adjustment handle to select the straight and fog pattern.
Style Number : MBS040
Monitor Nozzle Material: Brass
Pattern: Straight Steam,Narrow fog,wide fog
Monitor Nozzle Type: Selectable gallonage master stream monitor nozzle.
Max.Flow Rate: 2400 LPM
Media: Water
Control Type: Manual control by handle.
Inlet Size: 2.5 '' NH Female
Application: For fire monitor,for fire fighting.
Suitable Monitor Assembly: TFS1,TFS2.WFS1.WFS2
| Surface Finishing: | Sandblasted & acid-washing brass for corrssion ressistant. | ||||||
| Flow Rate (LPM): | 1200-1800-2400 LPM Selectable Flow by spring loaded baffle (need to closed the valve). | ||||||
| Rated Working Pressure: |
0.8Mpa/8 Bar/115psi. |
||||||
| Max Working Pressure: | 1.38Mpa/13.8bar/200 psi. | ||||||
| Inlet Size: | 2.5" NH Female (Other coupling style is acceptable). | ||||||
| Max.Reach: |
50 meters @1200LPM,60 meters @1800LPM ,65 meters @2400lpm (@ 30 Degree,1.2 Meters To the Ground.Wind Speed ＜2m/s). |
||||||
| Max.Fog Angle: | 100°. | ||||||
Petrochemical
Fuel/Oil Storage Tank Area
Oil Rig
Airport & Hanger
Fire & Rescue Services
Fire Truck
Wildland Forest
Marine & Offshore
The MBS040 is fire nozzle constructed sandblasted & acid-washing brass for corrssion ressistant
It is supporting flexible flow switching from 1200LPM/1800LPM/ 2400LPM by spring loaded baffle.
It operates at a rated working pressure of 8 Bar (115 PSI) and delivers solid straight jetting pattern or fog pattern.
Its 2.5-inch female NH inlet enables quick connection to standard fire monitors.
To select between a straight stream and a fog pattern on a fire monitor, simply twist the pattern adjustment handle (the outer sleeve on the nozzle).
Yes, it is designed for quick and easy operation, allowing firefighters to adjust water flow smoothly and effectively.
By offering precise control over water stream direction and flow rate, it helps firefighters target fires quickly and safely.
⚠️
- Designed for use with fire monitors – not suitable for handheld use
- See Instruction before use.
- Scheduled maintenance is necessary.
- It's used for Class A/B Fire.
3
Materials
Lightweight anodized aluminum alloy
Wear-resistant brass alloy
Anti-corrosion stainless steel 304/316
3
CONTROL TYPES
Manual Control
Electric Remote Control DC24V
Explosion-proof Electric Remote Control DC24V / AC 220V
5
SERIES
Smoothbore,Stacked Tips & Deluge Tip
Constant Flow
Selectable Flow
Automatic(Constant Pressure) Nozzle
Monitor Foam Nozzle
