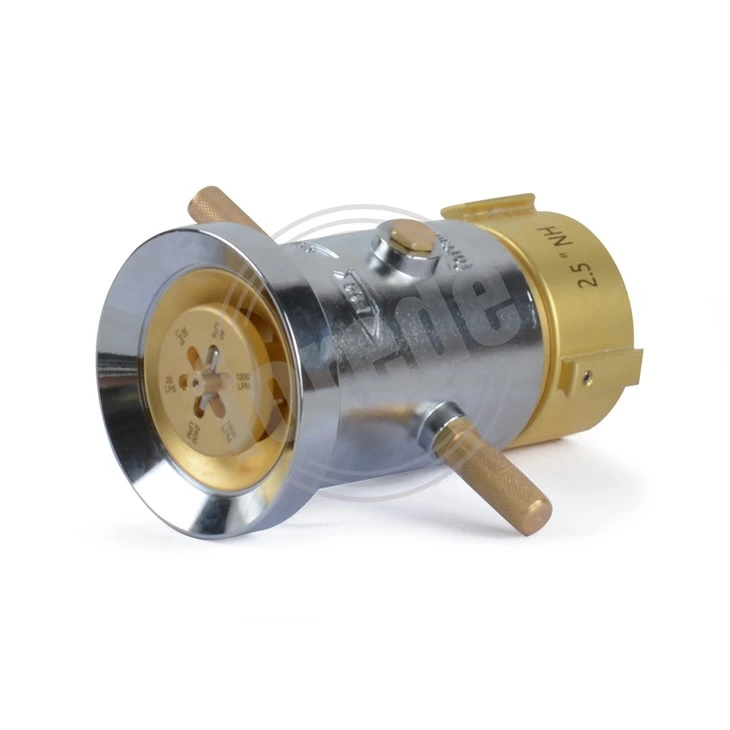

The forede® Brand MSS040 SS304 Brass Fire Monitor Nozzle is a high-quality firefighting device designed to deliver powerful and reliable water streams, ensuring effective fire suppression in various environments. Crafted from durable SS304 stainless steel and brass materials, this nozzle guarantees exceptional resistance to corrosion and wear, making it ideal for long-term use in demanding fire protection applications.
Engineered for superior performance, the nozzle offers a smooth and adjustable water flow, allowing firefighters to control the spray pattern with ease-ranging from a focused jet to a wide fog-enhancing versatility on the fireground. Its ergonomic design ensures ease of handling and quick maneuverability, supporting rapid response during emergency situations.
This MSS040 fire monitor nozzle is an indispensable tool in industrial facilities, oil refineries, docks, and large-scale firefighting scenarios, where reliable and robust equipment is essential for safeguarding lives and property. The combination of SS304 stainless steel and brass not only ensures durability but also promotes consistent operation under high pressure.
Choosing the MSS040 SS304 Brass Fire Monitor Nozzle means investing in safety, efficiency, and durability. Its outstanding craftsmanship and superior materials empower firefighting teams to perform confidently and effectively, contributing to safer communities and workplaces. With this nozzle, every firefighting mission is supported by technology designed to protect and preserve, making it a trusted choice for professionals worldwide.
01
Flow Rate Baffle Adjustment, Easy Flow Rate Adjust
The MSS040 nozzle comes with three standard flow rate, supporting flexible flow switching from 1200LPM/1800LPM/ 2400LPM by adjust the flow rate baffle, selectable flow with a fully machined waterway that ensures excellent stream quality.
02
Compact, Solid, Straight Steam With Far Reach And Fog
With bulid-in stream shapers, style MSS040 master stream nozzle forming a tight, solid straight water steam to have an far reach,with narrow and wide fog pattern, Pattern easily changed under flowing conditions from straight stream to 100° fog.
03
Havey Duty Stainless Steel And Brass
The whole nozzle body adopts stainless steel 304/316 shell and brass core material, which is durable, pressure-resistant and anti-corrosion for corrosive and non-corrosive applications.
Durable heavy duty stainless steel 304/316 with brass construction for corrosive and non-corrosive applications
Simple,rugged nozzle with superior stream quality and reach.
Powerful,steady, concentrated,solid stream and fog.
Customized to meet different flow rate @ different working pressure.
Extremly low maintenance, high quality components.
Adjust the flow rate by changing the flow rate baffle.
Suitable for most of fire monitor assembly of forede brand.
Build-in shape for incredible reach and stream quality.
Simply and qucikly twist the adjustment handle to select the straight and fog pattern.
Style Number : MSS040
Monitor Nozzle Material: Stainless Steel 304/316 and Brass
Pattern: Straight Steam,Narrow fog,Wide fog
Monitor Nozzle Type: Selectable gallonage Master stream monitor nozzle.
Max.Flow Rate: 2400 LPM
Media: Water
Control Type: Manual control by handle.
Inlet Size: 2.5 '' NH Female
Application: For fire monitor,for fire fighting.
Suitable Monitor Assembly: TFS1,TFS2.WFS1.WFS2
| Surface Finishing: | Chromed Stainless steel304/316, sandblasted & acid-washing brass for corrssion ressistant. | ||||||
| Flow Rate (LPM): | 1200-1800-2400 LPM Selectable Flow by spring loaded baffle (need to closed the valve). | ||||||
| Rated Working Pressure: |
0.8Mpa/8 Bar/115psi. |
||||||
| Max Working Pressure: | 1.38Mpa/13.8bar/200 psi. | ||||||
| Inlet Size: | 2.5" NH Female (Other coupling style is acceptable). | ||||||
| Max.Reach: |
50 meters @1200LPM,60 meters @1800LPM ,65 meters @2400lpm (@ 30 Degree,1.2 Meters To the Ground.Wind Speed ＜2m/s). |
||||||
| Max.Fog Angle: | 100°. | ||||||
Petrochemical
Fuel/Oil Storage Tank Area
Oil Rig
Airport & Hanger
Fire & Rescue Services
Fire Truck
Wildland Forest
Marine & Offshore
The nozzle combines durable SS304 stainless steel and brass, offering excellent corrosion resistance and long-lasting performance.
Yes, it is designed to withstand outdoor environments, making it ideal for various firefighting applications.
To select between a straight stream and a fog pattern on a fire monitor, simply twist the pattern adjustment handle (the outer sleeve on the nozzle).
The stainless steel with brass offers heavy duty construction with strong corrosion resistance and abrasion resistance.
It maintains stable performance under long-term high-pressure fire service .
Its precision jet stream and fog enhances water reach and control, helping firefighters manage fires efficiently.
⚠️
- Designed for use with fire monitors – not suitable for handheld use
- See Instruction before use.
- Scheduled maintenance is necessary.
- It's used for Class A/B Fire.
3
Materials
Lightweight anodized aluminum alloy
Wear-resistant brass alloy
Anti-corrosion stainless steel 304/316
3
CONTROL TYPES
Manual Control
Electric Remote Control DC24V
Explosion-proof Electric Remote Control DC24V / AC 220V
5
SERIES
Smoothbore,Stacked Tips & Deluge Tip
Constant Flow
Selectable Flow
Automatic(Constant Pressure) Nozzle
Monitor Foam Nozzle
