Cannon Nozzle Brass Type

Cannon Nozzle Brass Type
Product Introduction:
forede® Cannon Nozzle Brass Type, Model Number ESF040, is a high-quality nozzle designed for firefighting applications.
Send Inquiry
Description
Technical Parameters

Products Description

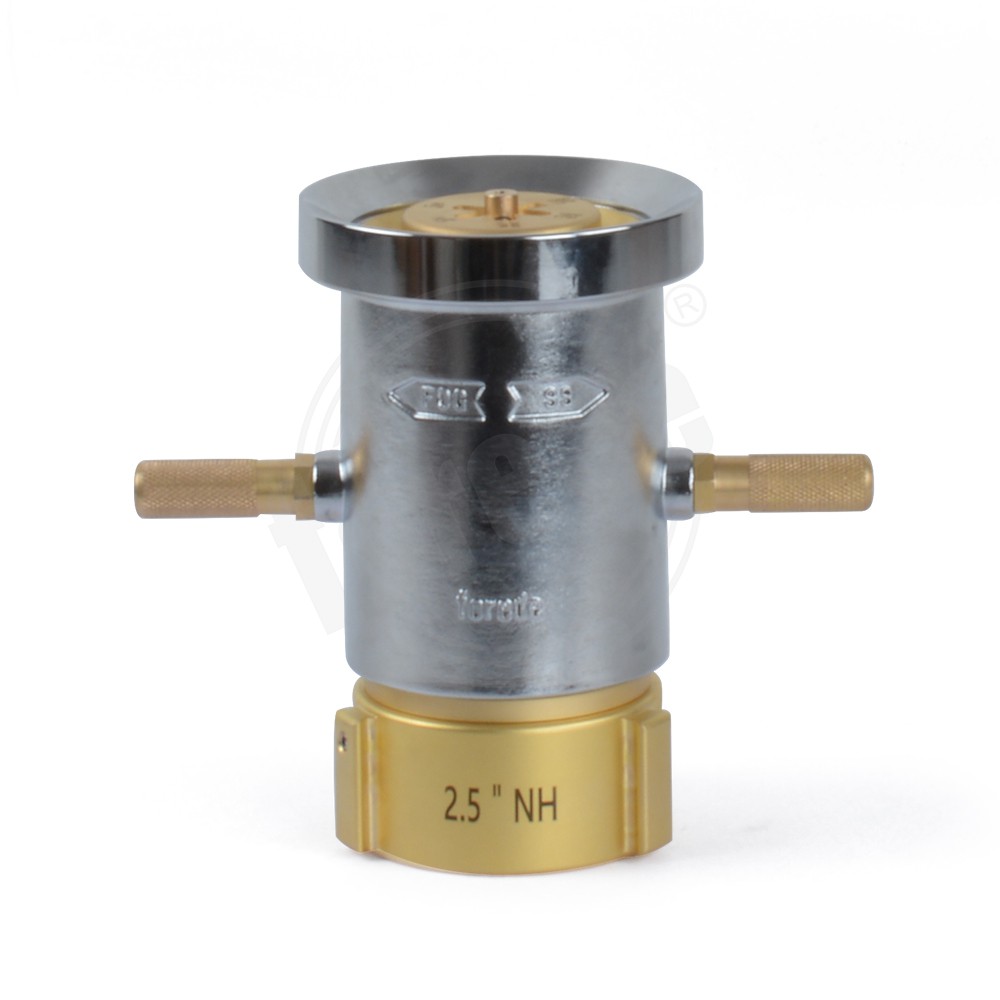

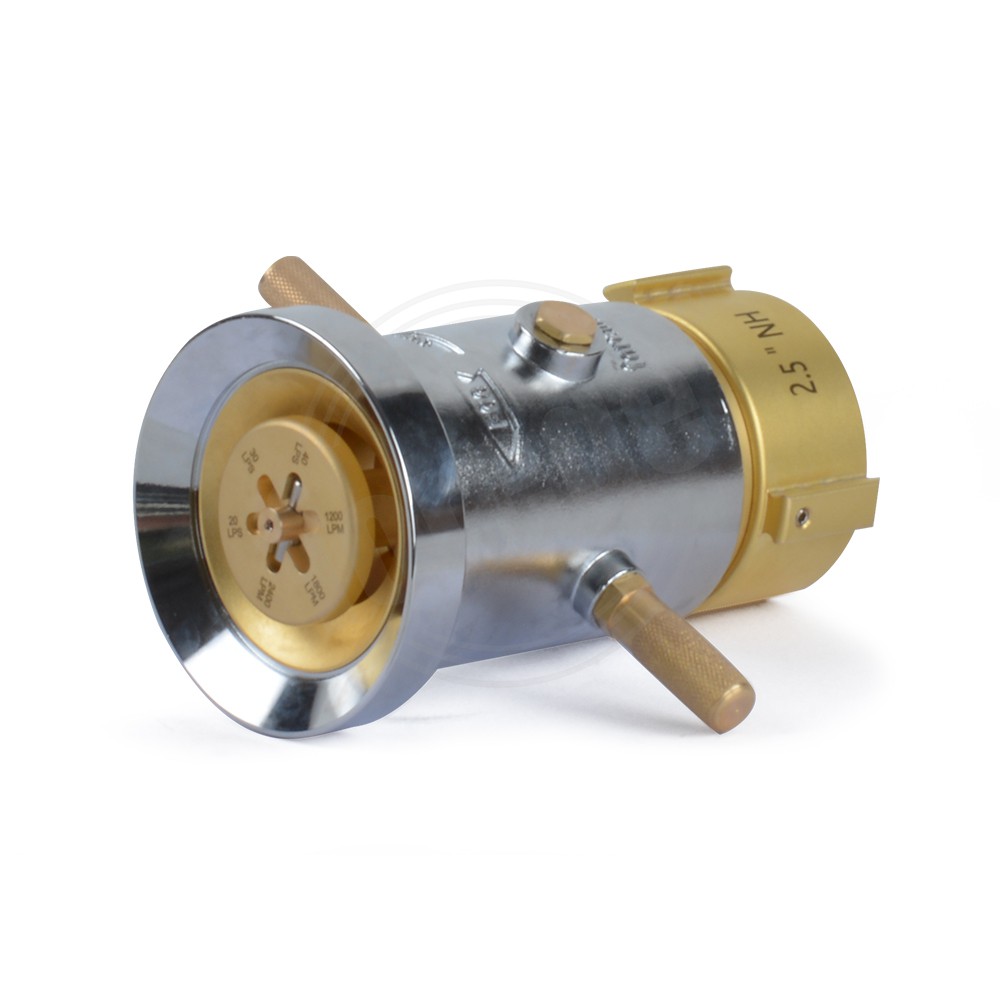

forede ® Cannon Nozzle Brass Type



Forede® Cannon Nozzle Brass Type, Model Number ESF040, is a high-quality nozzle designed for firefighting applications. With a flow rate of 20-30-40 LPS selectable flow and a working pressure of 8 bar, this nozzle is capable of delivering a powerful stream of water to combat fires effectively.
The Forede® Cannon Nozzle features a maximum fog angle of 120° and a water jetting range of 65m at 2400LPM at 8 bar, making it suitable for a wide range of firefighting scenarios. Made from durable stainless steel and brass materials, this nozzle is built to withstand the rigors of firefighting operations.
It adopts electric control mode, enabling remote adjustment of flow rate and spray pattern for flexible onsite operation. Equipped with a 2.5" NH female inlet, the Forede® Cannon Nozzle is easy to connect to standard fire hoses for quick deployment. Its rugged construction and reliable performance make it an essential tool for firefighters and emergency responders.
In conclusion, the Forede® Electric Controlled Cannon Nozzle Brass Type is a top-quality firefighting nozzle that is reliable, durable, and effective in combatting fires. Remote electric control greatly improves operation convenience. Its positive impact in saving lives and protecting property makes it a valuable tool for firefighting professionals.

  • 1

    01

  • 2

    02

  • 1
    NR8AVjViQ1FBek5EUTJNRE13TkRhZyp4Wm5wR2RVSFEhIQUAcXVuZ3o

    03

  • 2
    04

Products Feature

 Monitor Nozzle Material: SS + Brass ;

 Patterm:Straight jetting,Staright Stream, fog;

 Monitor Nozzle Type: Selectable ;

 Flow Rate : 1200LPM - 1800LPM - 2400LPM ;

 Control Type: Remote Control;

 Application: For fire monitor,for fire fighting,for fire hydrant;

 Media : Water;

 Inlet Size: 2.5 '' NH Female .

Technical Parameter

forede ® Cannon Nozzle Brass Type



Its positive impact in saving lives and protecting property makes it a valuable tool for firefighting professionals.

Model Number

ESF040
Flow Rate 20-30-40 LPS Selectable Flow

Working Pressure

8 bar

Water Jetting Range 65m@2400LPM@8bar
Material Stainless steel and brass
Inlet 2.5" NH female




Frequently Ased Questiones



Q: What power supply does the ESF040 nozzle require?

A: This electric controlled nozzle adopts DC 24V power supply for operation.

Q: Can we adjust both flow rate and spray pattern remotely?

A: Yes. It supports remote switching between 20/30/40 LPS flow rates, and the jetting pattern can be switched between straight stream and fog.

Q: What is the working pressure of ESF040 monitor nozzle?

A: Rated working pressure is 8 bar (115 PSI).

Q: What connection interface is equipped for installation?

A: It comes with a 2.5 inch Female NH inlet, compatible with standard firefighting pipelines and fire monitors.

Q: What materials is the nozzle made of?

A: Constructed from stainless steel and brass alloy, corrosion-resistant and durable for long-term firefighting use.

Application Area




123

High-rise Buildings

1233

Commercial Structures



222

Large Industrial Facilities

1111

Factory Space
