Products Description

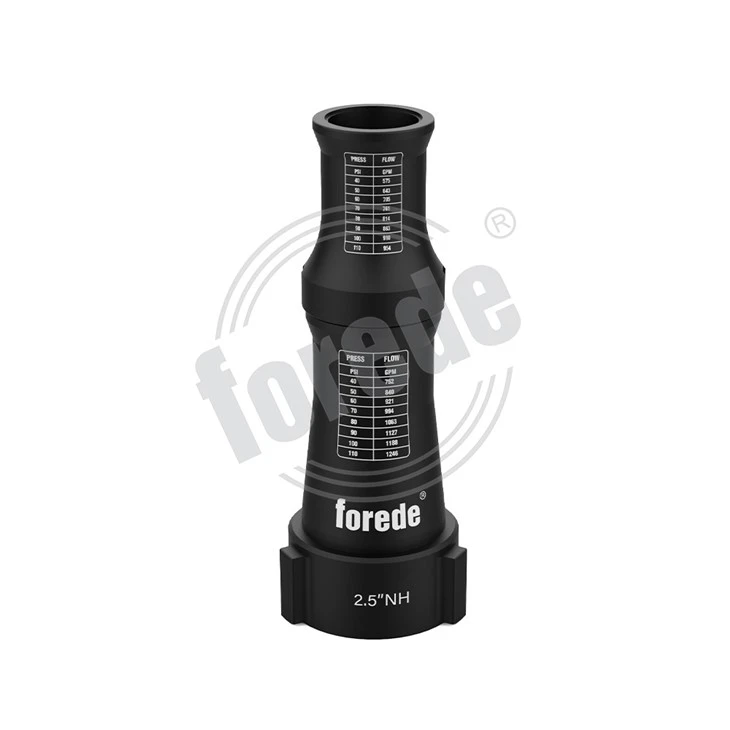

forede ® Stack Tips
forede® Stack Tips is its hard anodized aluminum alloy construction. This makes the forede® Stack Tips strong, durable, and highly resistant to wear and tear, heat, and corrosion. This means that the forede® Stack Tips can withstand the harsh conditions of firefighting without deteriorating in quality.
forede® Stack Tips comes in two patterns- straight jetting and straight stream. The straight jetting pattern is used for breaking up solid materials, while the straight stream is used for directing a concentrated water flow to a specific area. This makes the forede® Stack Tips versatile and suitable for various firefighting applications.
03
Products Feature
Monitor Nozzle Material:Hard anodized aluminum alloy construction;
Patterm:Straight jetting,Staright Stream;
Monitor Nozzle Type: Stacked Tips;
Flow Rate : 2230LPM / 2655LPM / 3610LPM / 4716LPM
Control Type: Manual;
Application: For fire monitor,for fire fighting,for fire hydrant;
Media : Water ;
Inlet Size: 2.5" NH Female / Male for choice.
Technical Parameter
forede ® Stack Tips
The forede® Stack Tips has manual controls, allowing operators to adjust the flow rate, spray pattern, and direction of the water flow. This makes forede® Stack Tips easy to direct the water flow to the exact location of the fire, maximizing efficiency and minimizing water usage.
|
Model |
Inlet |
Nozzle Diameter |
Flow Rate |
Flow Pattern |
Working Pressure |
|
PTZC-PS-4ST |
2.5'' NH female |
1.375'' (35mm) |
2230 LPM @ 8 bar |
Constant |
8 bar |
|
|
1.5'' (38mm) |
2655 LPM @ 8 bar |
Constant |
8 bar |
|
|
1.75'' (45mm) |
3610 LPM @ 8 bar |
Constant |
8 bar |
||
|
2'' (50mm) |
4716 LPM @ 8 bar |
Constant |
8 bar |
Frequently Ased Questiones
Q: What is the material of the Stack Tips products feature Monitor Nozzle?
Q: What is the pattern of the Monitor Nozzle?
A: The pattern is straight jetting, straight stream.
Q: What type of Monitor Nozzle is used?
Q: What is the Flow Rate of the Monitor Nozzle?
Q: How is the Control Type of the Monitor Nozzle?
Application Area
High-rise Buildings
Commercial Structures
Large Industrial Facilities
Factory Space
