Name: China Ball Shut Off Valve 1-1/2" NH Swivel Manufacturers, Suppliers - Wholesale Price - FOREDE
Brand: FOREDE
SKU: 261193967

Description

Technical Parameters

Products Description

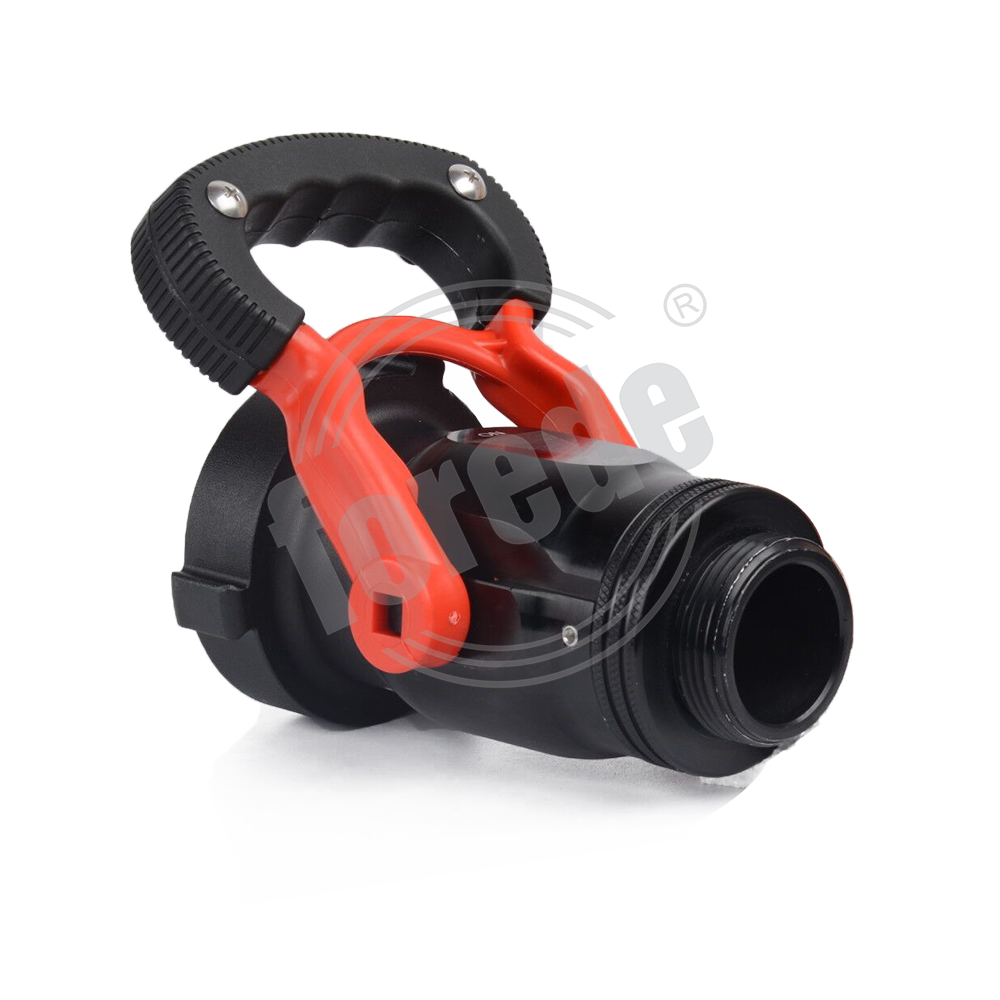

Ball Shut Off Valve 1-1/2" NH Swivel

forede ® Ball Shut Off Valve 1-1/2" NH Swivel. These lightweight full flow shut offs operate easily to pressures of 87 psi. Precision manufactured with full 1" waterways and replaceable seats. Available in 1-1/2", 2" ,2-1/2"Storz, NH, INST, GOST, Machino, etc coupling to accept any variety of forede nozzles. Pistol Grip type handle assures easy and positive control.

Products Specification

Features

Flow Rate: Max. 475 LPM;

Ball Valve Diameter: 25 mm;

360° Swivel inlet, full time, even after tightening;

Coupling Standard: Storz, NH, INST, GOST, Machino, etc.

Model	Material	Inlet Size	Outlet Size	Working Pressure
BV/25-40	Hard Anodized Aluminum Alloy	1.5" / 40 mm	1" / 25 mm	6 bar
BV/25-50	Hard Anodized Aluminum Alloy	2" / 50 mm	1" / 25 mm	6 bar
BV/25-65	Hard Anodized Aluminum Alloy	2.5" / 65 mm	1" / 25 mm	6 bar

FAQ

1.What is a Ball Shut Off Valve 1-1/2"?

The Ball Shut Off Valve 1-1/2" for fire nozzles ensures quick, reliable water flow control in fire protection systems.

2. How to use the Ball Shut Off Valve 1-1/2"?

To use the Ball Shut Off Valve 1-1/2" for a fire nozzle, rotate the handle clockwise to open and allow water flow, and counterclockwise to close and stop the flow. Ensure smooth rotation and no leaks. Regularly inspect and maintain the valve for safe and reliable operation.

3. How to operate a fire hose nozzle?

Turn the valve on the fire hose reel on (in line with the pipe) This will allow the fire hose reel nozzle to be released. Point the nozzle in the direction of the fire and open the nozzle by twisting to the right.
