Products Description
Overview
1 inch fire nozzle is a small-diameter firefighting nozzle designed to connect to a 1″ fire hose (often used in forestry, industrial, or light firefighting applications).
Size: Fits 1″ (25 mm) hose couplings (often NST/NH, NPSH, or BSP).
Material: Brass, aluminum, or composite.
Flow Range: ~10–100 GPM (40–400 LPM) depending on pressure and type.
Operating Pressure: Commonly 100 psi (7 bar).
Weight: Lightweight for easy handling.
Features

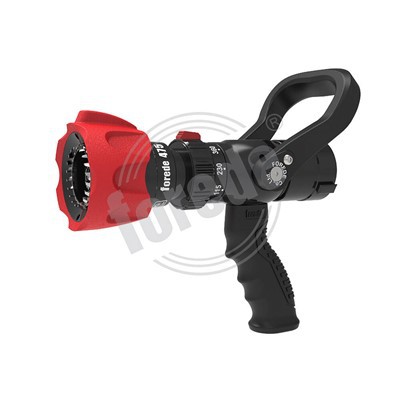

Product Name: Handheld hose nozzle
Flow Rate: 19 - 38 - 95 - 150 LPM - Flush (Selectable)
Jetting Pattern: Straight stream, Narrow fog, Wide fog
Coupling Standard: Storz, NH, INST, GOST, Machino, etc
Products Parameter
forede® 1 inch fire nozzle with different size and standard for option:
| Model | Material | Inlet Size | Working Pressure | Max. Reach |
|
QLD6.0/2.5III-25
|
Hard Anodized Aluminum Alloy |
1"/ 25 mm
|
7 bar | 42 m @ 6 bar |
| QLD6.0/2.5III-40 | Hard Anodized Aluminum Alloy | 1.5/40mm | 7 bar | 42 m @ 6 bar |
| QLD6.0/2.5III-50 | Hard Anodized Aluminum Alloy | 2''/50mm | 7 bar | 42 m @ 6 bar |
| QLD6.0/2.5III-65 | Hard Anodized Aluminum Alloy | 2.5''/65mm | 7 bar | 42 m @ 6 bar |
FAQ
Q: What is a 1-inch fire nozzle?
A 1-inch fire nozzle is a firefighting nozzle designed to connect to a 1-inch fire hose, commonly used for light-duty fire protection, forestry firefighting, and industrial washdown applications.
Q: What materials are 1-inch fire nozzles made of?
They are typically made from brass, aluminum, or composite materials. Brass offers durability and corrosion resistance, while aluminum provides lightweight handling.
Q: What types of spray patterns are available?
Most 1-inch fire nozzles can provide:
Straight stream (long-range, high pressure)
Fog/adjustable spray (wide coverage, protective shield)
Shut-off option (ON/OFF control)
Q: What is the typical flow rate of a 1-inch nozzle?
Flow rates usually range from 20 to 100 GPM (gallons per minute) depending on pressure and nozzle design.
Q: What pressure is recommended for operation?
Standard operating pressure is around 100 PSI, though low-pressure models (50–75 PSI) are also available.
