Products Description
Overview

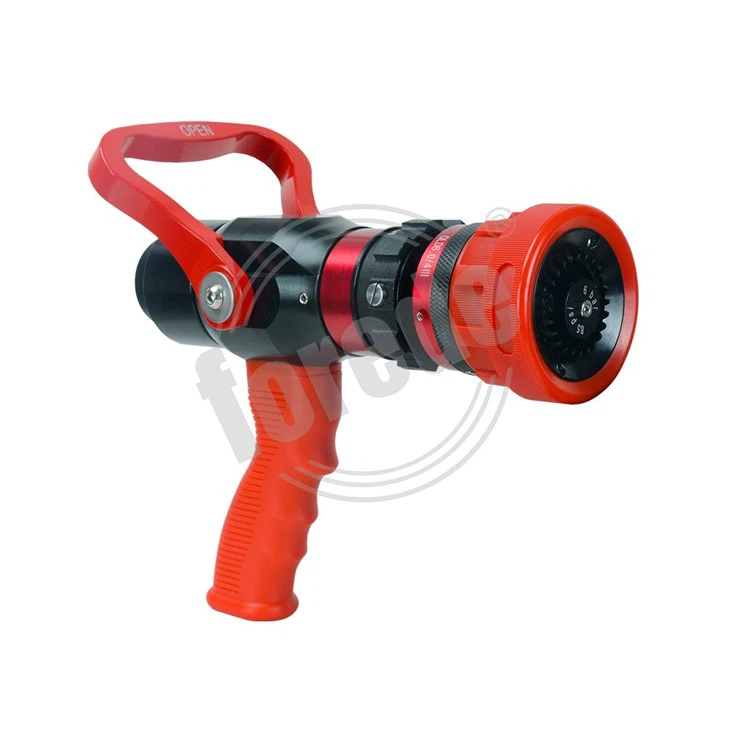

25mm metal adjustable nozzle is a handheld firefighting nozzle designed like a gun, often with a pistol grip or trigger mechanism for easier handling and control. It is widely used in fire services for directing and regulating water or foam streams.
Gun-style handle: Has a pistol grip or trigger that makes it easier to operate with one hand.
Flow control: Trigger or lever regulates water discharge (open, shut, or partial flow).
Adjustable spray patterns: From straight stream (long reach, high impact) to wide fog (protective water curtain).
Connection size: Typically available in 1" (25mm), 1.5" (38mm), or 2.5" (65mm) inlets, depending on the hose.
Applications: Firefighting (structural, wildland, industrial), cleaning, cooling, and dust suppression.
Features
Product Name: 25mm metal adjustable nozzle
Flow Rate: 60 - 130 - 235 LPM - Flush (Selectable)
Jetting Pattern: Straight stream, Narrow fog, Wide fog
Coupling Standard: Storz, NH, INST, GOST, Machino, etc
Products Parameter
forede® 25mm metal adjustable nozzle with different size and standard for option:
| Model | Material | Inlet Size | Working Pressure | Max. Reach |
|
QLD6.0/4III -25
|
Hard Anodized Aluminum Alloy |
1"/ 25 mm
|
6 bar | 36 m @ 6 bar |
|
QLD6.0/4II -40 |
Hard Anodized Aluminum Alloy | 1.5/40mm | 6 bar | 36 m @ 6 bar |
|
QLD6.0/4II -50 |
Hard Anodized Aluminum Alloy | 2''/50mm | 6 bar | 36 m @ 6 bar |
| QLD6.0/4III-65 | Hard Anodized Aluminum Alloy | 2.5''/65mm | 6 bar | 36 m @ 6 bar |
FAQ
Q: What is a 25mm metal adjustable nozzle?
A: It is a spray nozzle with a 25mm (1 inch) inlet size, made of durable metal (often brass, aluminum, or stainless steel), and designed with an adjustable head to control water flow patterns such as straight stream, cone, or fog.
Q: What is the typical use of this nozzle?
A: It is widely used in firefighting (small hose lines), garden irrigation, industrial cleaning, construction sites, and dust suppression.
Q: How does the adjustable function work?
A: By rotating or twisting the nozzle head, users can change the spray pattern from a narrow jet stream (long distance) to a wide fog or shower (short distance, broad coverage).
Q: What is the flow capacity of a 25mm nozzle?
A: Flow rate depends on inlet pressure, but typically ranges between 100–250 L/min at 3–7 bar (varies by design).
Q: Can it handle both high and low pressure?
A: Yes, most 25mm adjustable nozzles work effectively in both low-pressure (2–4 bar) and medium-pressure (up to 10 bar) systems.
