Products Description
Overview

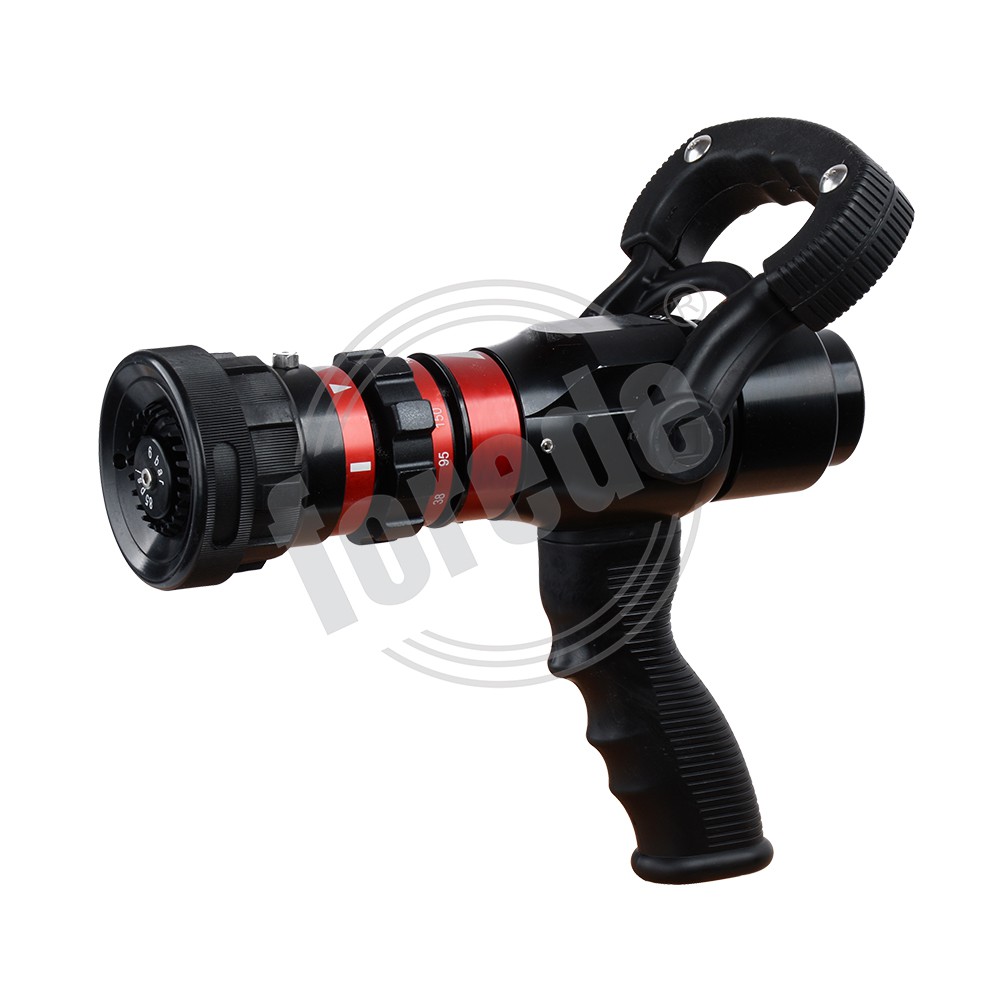

4-position fire hose nozzle is a type of adjustable firefighting nozzle that allows the operator to quickly switch between four different spray patterns or flow settings, depending on the fire situation.
Four operating positions (usually controlled by a rotating bumper or ring):
Off – shuts off water completely.
Straight Stream – a concentrated jet of water for long-distance reach and penetration.
Narrow Fog – a tighter cone-shaped spray for cooling and limited protection.
Wide Fog – a wide-angle spray for maximum heat shielding and protection against radiant heat.
Connection sizes: Often available in 1", 1.5", or 2.5" NH/NST or NPSH thread.
Material: Lightweight anodized aluminum.
Features
Product Name: 4-position fire hose nozzle
Flow Rate: 19 - 38 - 95 - 150 LPM - Flush (Selectable)
Jetting Pattern: Straight stream, Narrow fog, Wide fog
Coupling Standard: Storz, NH, INST, GOST, Machino, etc
Products Parameter
forede® 4-position fire hose nozzle with different size and standard for option:
| Model | Material | Inlet Size | Working Pressure | Max. Reach |
|
QLD6.0/2.5III-25
|
Hard Anodized Aluminum Alloy |
1"/ 25 mm
|
7 bar | 42 m @ 6 bar |
| QLD6.0/2.5III-40 | Hard Anodized Aluminum Alloy | 1.5/40mm | 7 bar | 42 m @ 6 bar |
| QLD6.0/2.5III-50 | Hard Anodized Aluminum Alloy | 2''/50mm | 7 bar | 42 m @ 6 bar |
| QLD6.0/2.5III-65 | Hard Anodized Aluminum Alloy | 2.5''/65mm | 7 bar | 42 m @ 6 bar |
FAQ
Q: What sizes are available for 4-position fire hose nozzles?
They are commonly available in 1 inch, 1.5 inch, and 2.5 inch hose connections, with thread types such as NH/NST (National Standard Thread), NPSH, or custom couplings.
Q: What materials are they made of?
High-quality 4-position nozzles are usually made of anodized aluminum, brass, or composite materials, offering strength, corrosion resistance, and long service life.
Q: Where are 4-position fire hose nozzles used?
Fire departments (municipal and wildland firefighting)
Industrial facilities
Oil & gas sites
Marine firefighting
Building fire cabinets (in some cases)
Q: What is the typical flow rate?
Flow rates usually range from 60 GPM to 250 GPM depending on size, pressure, and nozzle design.
Q: Can the spray pattern be adjusted while water is flowing?
Yes. The firefighter can rotate the nozzle head to switch between patterns without shutting down the water supply.
