Products Description
Overview

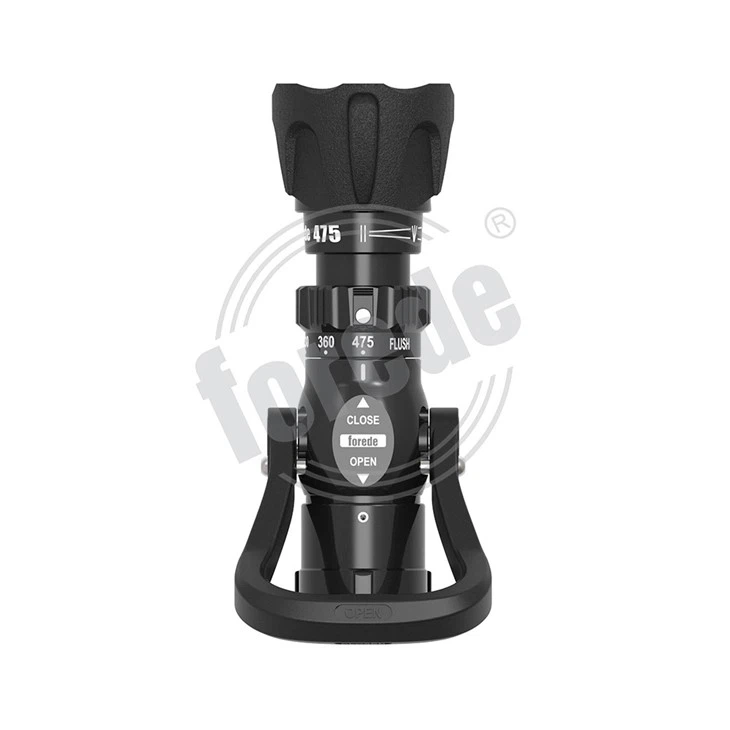

forede® L1S475 handheld nozzle (also called a turbojet nozzle, adjustable fog nozzle, or combination nozzle) is a type of fire hose nozzle designed to provide firefighters with flexibility in controlling the stream of water for fire suppression.
Portability – Lightweight and easy to carry and maneuver.
Flow Control – Usually equipped with a shutoff valve (ball valve or pistol grip trigger) to start/stop water.
Adjustable Spray Pattern – Many models allow switching between straight stream, fog, or wide spray patterns.
Materials – Commonly made of brass, aluminum, or composite materials for durability.
Connections – Standardized couplings (such as Storz, NH, BSP, or threaded) to fit hoses.
Features
Product Name: Handheld nozzle
Flow Rate: 115 - 230 - 360 - 475 LPM - Flush (Selectable)
Jetting Pattern: Straight stream, Narrow fog, Wide fog
Coupling Standard: Storz, NH, INST, GOST, Machino, etc
Products Description
forede® handheld nozzle with different size and standard for option:
|
Model Number |
Material |
Inlet Size |
Working Pressure |
Max. Reach |
Max.Fog Angle |
| L1S475-40 |
Hard Anodized Aluminum Alloy |
1.5" / 40 mm |
6 bar |
40 m @ 6 bar |
120° |
|
L1S475-50 |
Hard Anodized Aluminum Alloy |
2" / 50 mm |
6 bar |
40 m @ 6 bar |
120° |
|
L1S475-65 |
Hard Anodized Aluminum Alloy |
2.5" / 65 mm |
6 bar |
40 m @ 6 bar |
120° |
FAQ
Q: What is a handheld nozzle?
A handheld nozzle is a manually operated device attached to a hose that controls the direction, pattern, and flow rate of water or other fluids. It is commonly used in firefighting, cleaning, gardening, and industrial applications.
Q: What materials are handheld nozzles made of?
Handheld nozzle usually made of brass, aluminum, stainless steel, or reinforced plastics. Firefighting nozzles often use corrosion-resistant alloys for durability under high pressure and harsh environments.
Q: What are the common types of handheld nozzles?
Straight stream nozzles – focused, long-distance water jet.
Fog/combination nozzles – adjustable spray patterns (wide fog to narrow stream).
Adjustable pressure nozzles – allow flow and pressure control.
Foam nozzles – designed for mixing and applying firefighting foam.
Q: How do I operate a handheld nozzle?
Most handheld nozzles have a lever, twist, or pistol grip handle. By adjusting the control, you can start/stop flow, change spray patterns, or regulate pressure.
Q: What sizes are handheld nozzle available?
Handheld nozzle sizes are based on coupling/hose connection (e.g., 1", 1.5", 2.5") and flow capacity (commonly rated in gallons per minute (GPM) or liters per minute (LPM)).
