Products Description
Overview

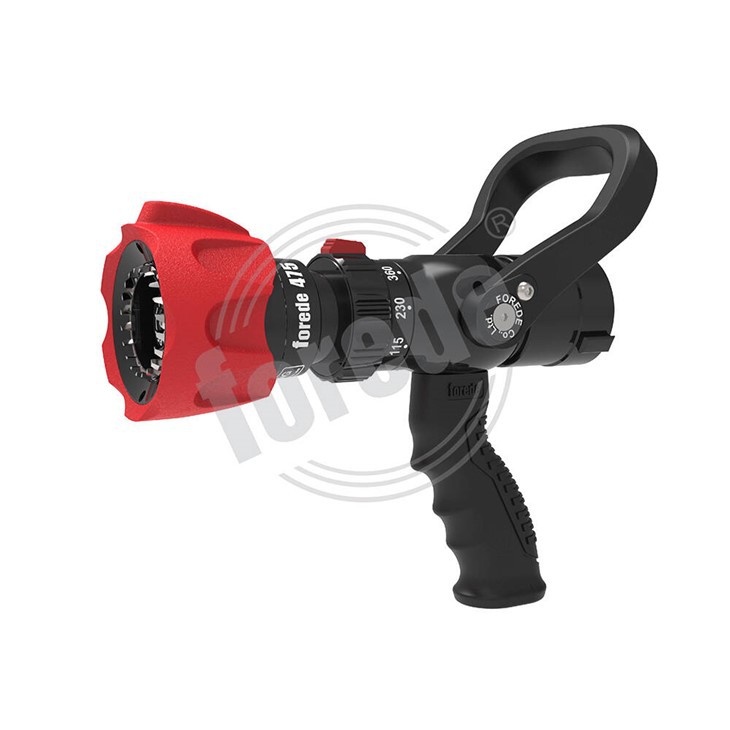

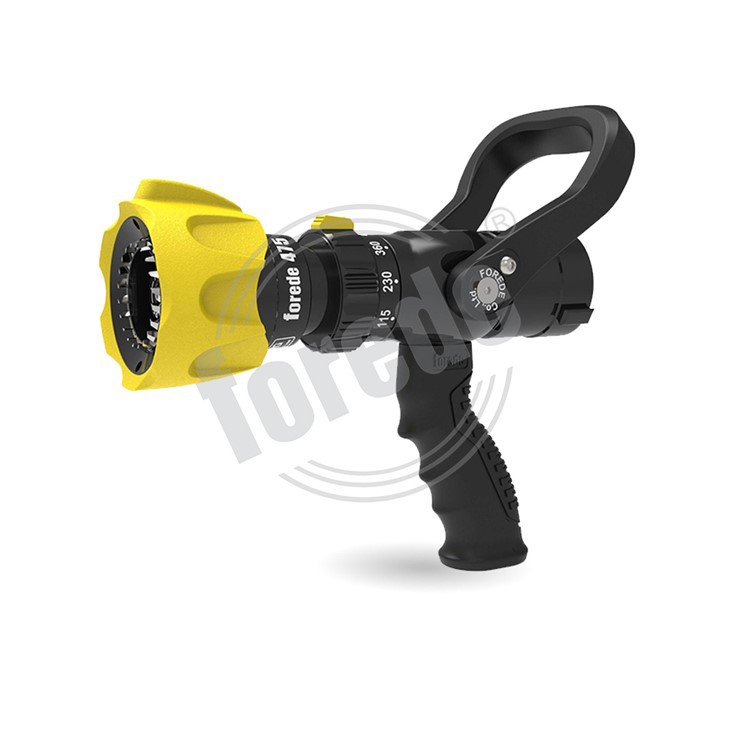

forede® L1S475 multipurpose fire nozzle with its powerful water stream, firefighters can combat fires on multiple fronts simultaneously, preventing the spread of the flames and minimizing damage to property. Can be attached to different types of firefighting equipment, including fire trucks, fire boats, and portable firefighting systems, making it an essential tool for any firefighting operation.
Features
Product Name: Multipurpose fire nozzle
Flow Rate: 115 - 230 - 360 - 475 LPM - Flush (Selectable)
Jetting Pattern: Straight stream, Narrow fog, Wide fog
Coupling Standard: Storz, NH, INST, GOST, Machino, etc
Products Description
forede® multipurpose fire nozzle with different size and standard for option:
|
Model Number |
Material |
Inlet Size |
Working Pressure |
Max. Reach |
Max.Fog Angle |
| L1S475-40 |
Hard Anodized Aluminum Alloy |
1.5" / 40 mm |
6 bar |
40 m @ 6 bar |
120° |
|
L1S475-50 |
Hard Anodized Aluminum Alloy |
2" / 50 mm |
6 bar |
40 m @ 6 bar |
120° |
|
L1S475-65 |
Hard Anodized Aluminum Alloy |
2.5" / 65 mm |
6 bar |
40 m @ 6 bar |
120° |
FAQ
Q: What is a Multipurpose Fire Nozzle?
A multipurpose fire nozzle is a nozzle designed to provide various spray patterns and flow rates, allowing firefighters to adapt to different fire scenarios.
Q: What Are the Types of Multipurpose Fire Nozzles?
Adjustable Gallonage Nozzle – Allows the user to set a fixed flow rate.
Automatic Nozzle – Adjusts the flow rate based on pressure.
Fixed Gallonage Nozzle – Delivers a constant flow rate regardless of pressure.
Combination Nozzle – Offers different spray patterns like straight stream, fog, and mist.
Q: What Spray Patterns Can Multipurpose Fire Nozzle Produce?
Straight Stream – Concentrated for long reach.
Narrow Fog – Some spread but still focused.
Wide Fog – Maximum coverage for protection and cooling.
Flush Mode – Clears debris from the nozzle.
Q: What Are the Key Features of a Multipurpose Fire Nozzle?
Flow Rate Control – Adjustable for different fire intensities.
Durable Material – Often made of aluminum, brass, or composite materials.
Pistol Grip or Ball Valve – Enhances handling and control.
Compatibility – Works with various hose sizes and coupling types.
Q: What Are the Key Features of a Multipurpose Fire Nozzle?
Regular Cleaning – Prevents debris blockage.
Lubrication – Ensures smooth operation of moving parts.
Pressure Testing – Verifies performance under firefighting conditions.
Seal Inspection – Checks for leaks or wear.
