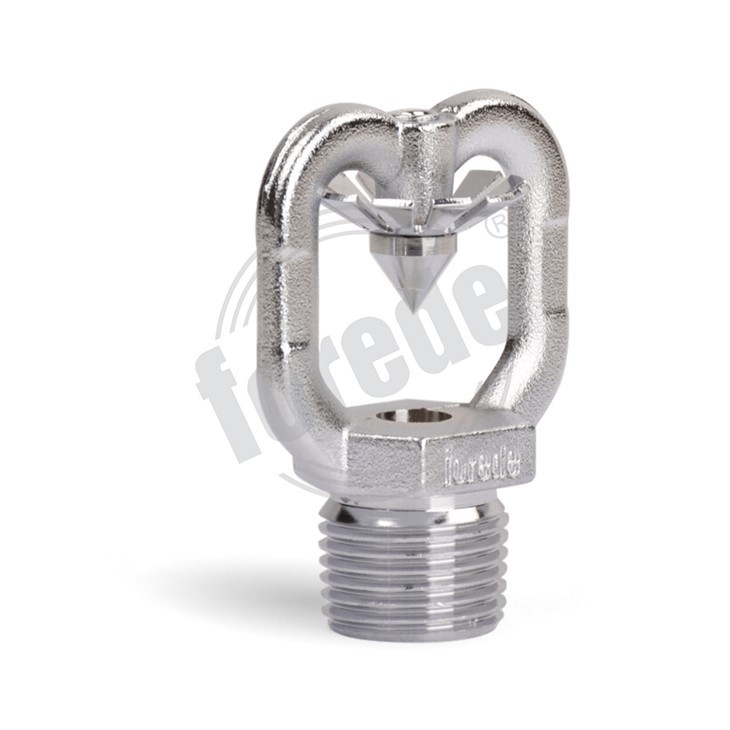

Directional Spray Nozzle

Product Introduction:

The impact type Medium Velocity Sprinkler Nozzle is sprayed onto the splash plate through the direct current water column of the nozzle, and it is decomposed into small water droplets by mechanical force to form water mist. The droplets of the impact water mist nozzle are relatively fine, and the diameter of the droplets is generally 0.2 to 0.4 mm.

Send Inquiry

Description

Technical Parameters

Medium Velocity Sprinkler Nozzle

Medium Velocity Water Spray Nozzles are open type (non-automatic nozzles, designed for directional spray application in fixed fire protection system. Medium velocity water spray nozzle has an external deflector, which discharges water in a directional cone shaped pattern of small droplet size. The water is uniformly distributed over the surface to be protected. The Nozzles are effectively designed to apply water to exposed vertical, horizontal, curved and irregular shaped surfaces to allow cooling to prevent excessive absorption of heat from external fire and avoid structural damage or spread of fire. In some application nozzles may be installed to control or extinguish the fire depending on water design density as per applicable codes. The nozzle is used in deluge water spray system for special hazard fire protection application.

Specification

Model Number	Style	Size
ZSTW C-15	Medium Velocity	1/2" (DN15), BSP/NPT
ZSTW C-20	Medium Velocity	3/4" (DN20), BSP/NPT

FAQ

Q:Do you offer guarantee for the products?

Yes, we offer 1 year warranty to our products.

Q:How can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment;

Q:How long does it take to produce the product?

Conventional products and small quantities can be produced within 15 days. The specific production time needs to have specific products and product quantities to confirm.
