Products Description
Overview

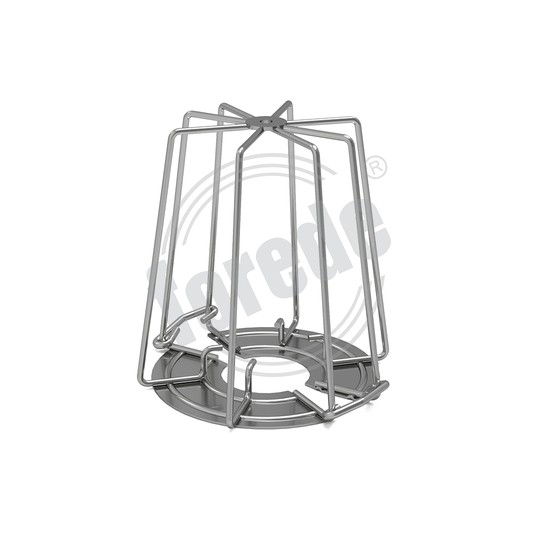

Sprinkler guards shields (also called a sprinkler head guard or cage) is protective device designed to shield fire sprinkler heads from accidental damage. They are commonly used in areas where sprinklers are exposed and at risk of being hit by objects, machinery, or people.
Purpose
Protects the sprinkler head from mechanical impact (e.g., forklifts, balls, tools).
Prevents accidental activation caused by physical contact.
Extends the lifespan of the sprinkler head in harsh environments.
Typical Applications
Warehouses and storage facilities.
Parking garages.
Gymnasiums or sports halls.
Industrial and mechanical rooms.
Areas with high pedestrian or equipment traffic.
Features
Product Name: Fire Sprinkler guards shields
Material: Stainless steel 304
Surface Finishing: Chrome
Size: 1/2" (DN15), 3/4'' (DN20)
Products Specification
Fire Srinkler guards shields with different size and standard for option:
| forede® Sprinkler Date |
Compatible Guard
|
||||
|
Model
|
Installation | K factor | Inlet Size | Guard | Guard c/w plate |
|
FRD-006
|
Pendent
|
5.6
|
1/2" |
SG1
|
- |
|
FRD-008
|
Upright
|
5.6
|
1/2"
|
SG1
|
SG1-S
|
|
FRD-006-QR
|
Pendent
|
5.6
|
1/2" |
SG1
|
- |
|
FRD-008-QR
|
Upright
|
5.6
|
1/2" |
SG1
|
SG1-S
|
|
FRD-010
|
Pendent
|
8.0
|
3/4" |
SG2
|
- |
|
FRD-012
|
Upright
|
8.0
|
3/4" |
SG2
|
SG2-S
|
|
FRD-010-QR
|
Pendent
|
8.0
|
3/4" |
SG2
|
- |
|
FRD-012-QR
|
Upright
|
8.0
|
3/4" |
SG2
|
SG2-S
|
|
FRD-005
|
Pendent
|
11.2
|
3/4" |
SG3
|
- |
|
FRD-004
|
Upright
|
11.2
|
3/4" |
SG3
|
SG3-S
|
|
FRD-005-QR
|
Pendent
|
11.2
|
3/4" |
SG3
|
- |
|
FRD-004-QR
|
Upright
|
11.2
|
3/4" |
SG3
|
SG3-S
|
|
ESFR-202 P
|
Pendent
|
14.0
|
3/4" |
SG2-E
|
- |
|
ESFR-202 U
|
Upright
|
14.0
|
3/4" |
SG2-E
|
- |
|
ESFR-242 P
|
Pendent
|
16.8
|
3/4" |
SG2-E
|
- |
|
ESFR-242 U
|
Upright
|
16.8
|
3/4"
|
SG2-E
|
- |
|
ESFR-363 P
|
Pendent
|
25.2
|
1" |
SG3-E
|
- |
|
ESFR-363 U
|
Upright
|
25.2
|
1" |
SG3-E
|
- |
FAQ
Q: Where are fire sprinkler guards used?
They are typically installed in areas with high risk of impact or vandalism, such as:
Warehouses
Gymnasiums
Parking garages
Industrial facilities
Mechanical rooms
Q: What materials are fire sprinkler guards made of?
Most are made of durable steel wire with chrome or corrosion-resistant finishes, ensuring strength and long service life.
Q: Do fire sprinkler guards affect sprinkler performance?
No. Guards are designed not to obstruct water spray patterns. They only protect the sprinkler head itself.
Q: Are all guards the same size?
No. Sprinkler guards come in different designs to fit:
Pendent heads
Upright heads
Sidewall heads
Always select the correct type for the sprinkler model.
Q: Can fire sprinkler guards be retrofitted?
Yes. They can be installed on existing sprinkler heads without modifying the system.
