Products Description
Overview

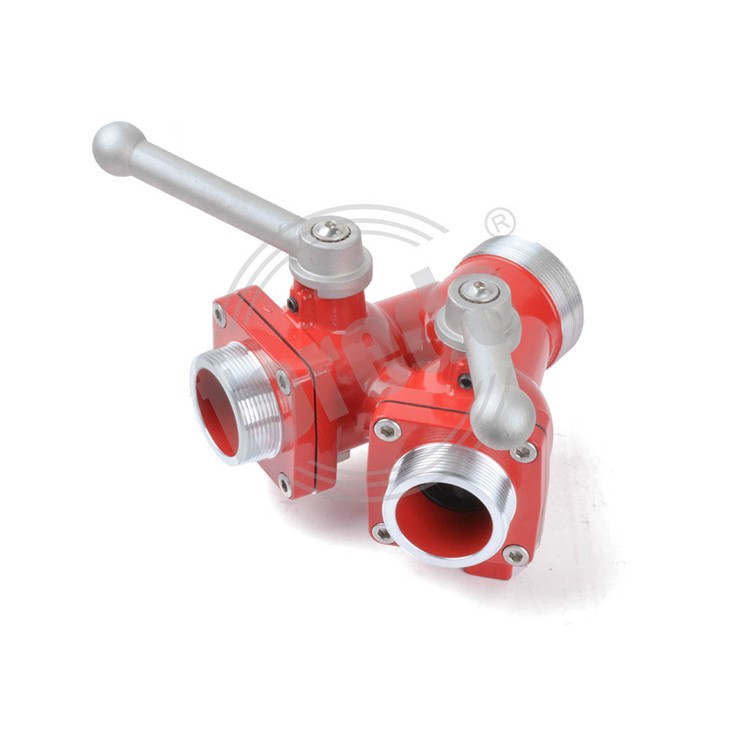

forede® 1.5 inch fire hose splitter is a firefighting or water distribution device designed to divide the flow from a 1.5" (38mm) fire hose line into two or more smaller outlets. It is commonly used in fire suppression, irrigation, and industrial water supply where multiple lines are needed from a single hose.
Common Type:
1.5" x (2) 1.5" Y-Splitter – splits into two equal 1.5" lines.
1.5" x (2) 1" Reducer Splitter – splits into smaller 1" hoses for handlines.
1.5" x (3) 1.5" Manifold – splits into three equal outlets.
Features
Product Name: 1.5 inch fire hose splitter
Body: Aluminum Alloy
Hand Wheel: Aluminum Alloy
Control Type: Lever
Products Parameters
forede® 1.5 inch fire hose splitter with different size and standard for option:
|
Model
|
Working Pressure |
Material
|
Inlet
|
Outlet |
|
FRD-2BI-001 |
24 Bar
|
Aluminum Alloy |
1.5'' female BSP |
2 X 1.5'' female BSP |
FAQ
Q: What is 1.5 inch fire hose splitter used for?
To distribute water flow to multiple hoses during firefighting operations.
To improve efficiency when covering larger fire areas.
To allow firefighters to operate different nozzles or foam equipment at once.
Q: How many outlets does 1.5 inch fire hose splitter usually have?
Most common models have two (Y-type) or three (3-way) outlets. Each outlet usually has a ball valve for independent control.
Q: What material is 1.5 inch fire hose splitter made of?
Aluminum alloy (lightweight, corrosion resistant)
Brass (durable, heavy-duty)
Sometimes ductile iron or stainless steel for special applications.
Q: Are the outlets the same size as the inlet?
Not always. The inlet is 1.5 inch, but the outlets can be 1.5 inch, 1 inch, or ¾ inch, depending on the required connection.
Q: How is 1.5 inch fire hose splitter connected to hoses?
The splitter uses fire hose couplings such as:
Storz couplings
NH (National Hose) / NST threads
BSP / NPT threads (for international use)
