Foam Bladder Tank Filling Procedure

Product Introduction:

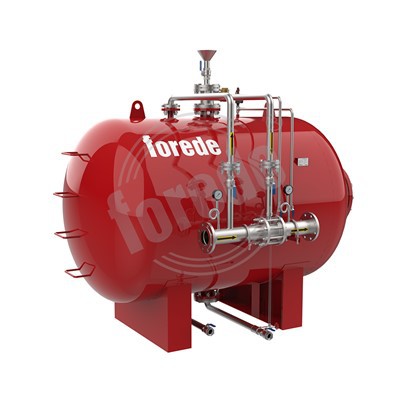

FOREDE Foam Bladder Tank can be divided into horizontal type, vertical type, with Rubber bladder, without rubber bladder, single-proportion mixer, double-proportion mixer, etc. according to the structure type. The user can choose according to the actual configuration needs and the location of the installation space.

Send Inquiry

foam bladder tank

Description

Technical Parameters

When the fire-fighting pressure water enters the equipment, a part of it enters the tank through the water inlet valve, and the foam liquid is pressed out of the liquid outlet line into the proportional mixer and mixed with the pressure water flowing through the proportional mixer to form a foam mixture, which is delivered to Foam generating equipment, produces foam, and performs fire extinguishing work.

_20210302105052

Specification

Model	DN	L (mm)	L1 (mm)	L2 (mm)	H (mm)	H1 (mm)	B (mm)	B1 (mm)	Inlet&Outlet
PHYML-300	600	800	380	820	1700	950	800	520	DN65
PHYML-500	700	900	380	820	1950	950	900	570	DN65
PHYML-600	700	900	380	820	2200	950	900	570	DN65
PHYML-800	900	1100	380	820	1900	950	1100	680	DN65
PHYML-1000	1100	1300	380	900	2000	950	1450	800	DN100
PHYML-1200	1100	1300	380	900	1850	950	1450	800	DN100
PHYML-1500	1200	1400	380	900	2100	950	1450	680	DN100
PHYML-2000	1400	1600	380	900	2150	950	2000	930	DN150
PHYML-3000	1600	1800	380	900	2200	950	2150	1060	DN150

*Other vertical foam bladder tank size can customized as well, just contact us for more details.

Model	Capacity (Liters)	Flow Rate (LPS)	Flow Range (LPS)	Rated W.Pressure (bar)	W.Pressure Range (bar)	Mixing Ratio
PHYML-200	200	24	4 - 24	16	6 - 16	3% or 6%
PHYML-300	300
PHYML-500	500
PHYML-600	600
PHYML-800	800	32	8 - 32
PHYML-1000	1000
PHYML-1200	1200
PHYML-1500	1500
PHYML-2000	2000
PHYML-2500	2500	48	12 - 48
PHYML-3000	3000	48	12 - 48

*Other flow rate available, contact us for more.

Hot Tags: foam bladder tank filling procedure, China, manufacturers, suppliers, wholesale, price, Vertical Foam Bladder Tank, Foam Bladder Tank Fire Fighting, Horizontal Fire Foam Tank, Foam Branch Pipe, Foam Bladder Tank Fixed, Foam Bladder Tank With Proportioner

- Manufactured At Customer's choice

- Design pressure 175 psi (12.1 bar)

- Bladder in polyester reinforced hypalon-neoprene polymers

- Bladder tanks are oversized to permit concentrate thermal expansion (volume expansion allowance)

- Nameplate in corrosion resistant material

- Machine Argon-arc welded circumferential and longitudinal seams for maximum quality and durability
- Welded lifting lugs for easy handling operations
- Relief valve provided on the water side

- OEM workable
