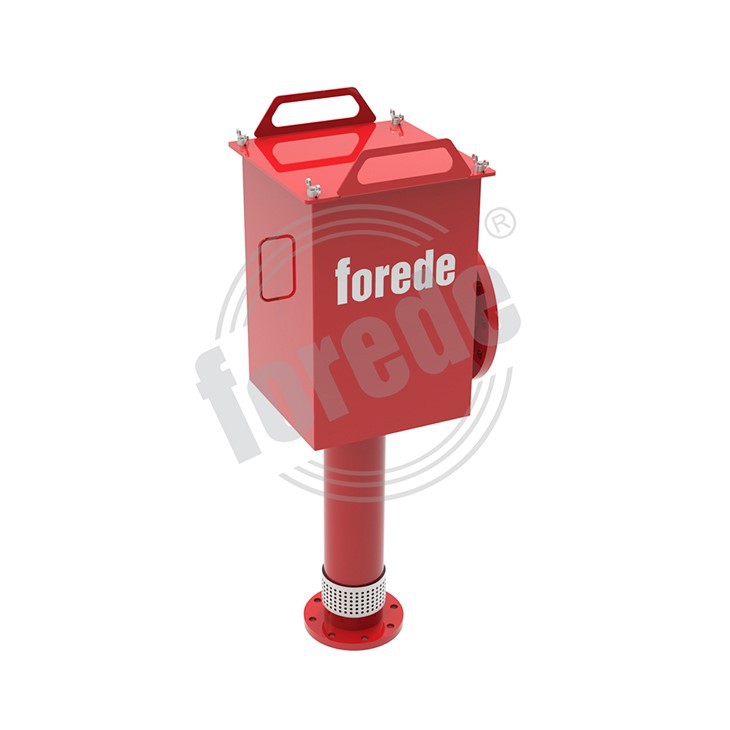

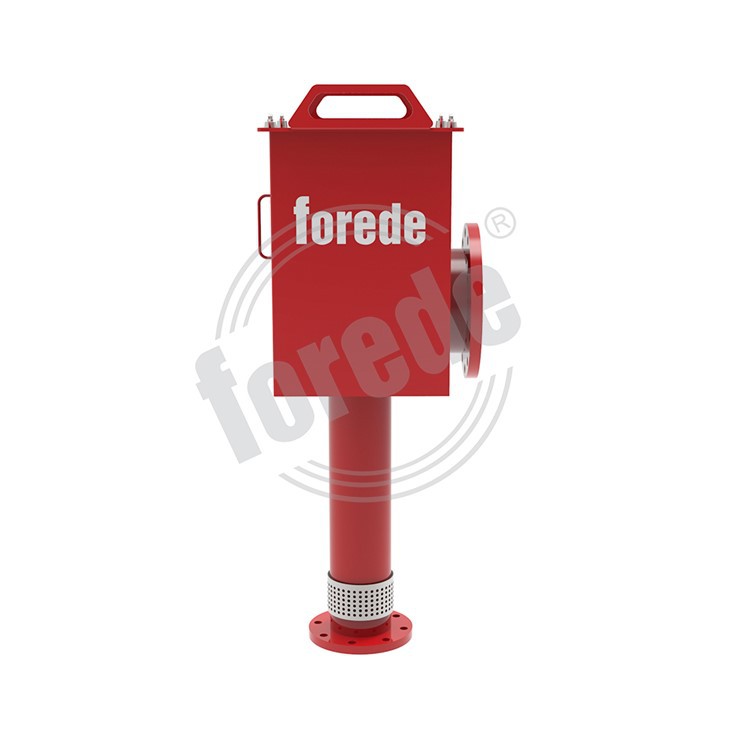

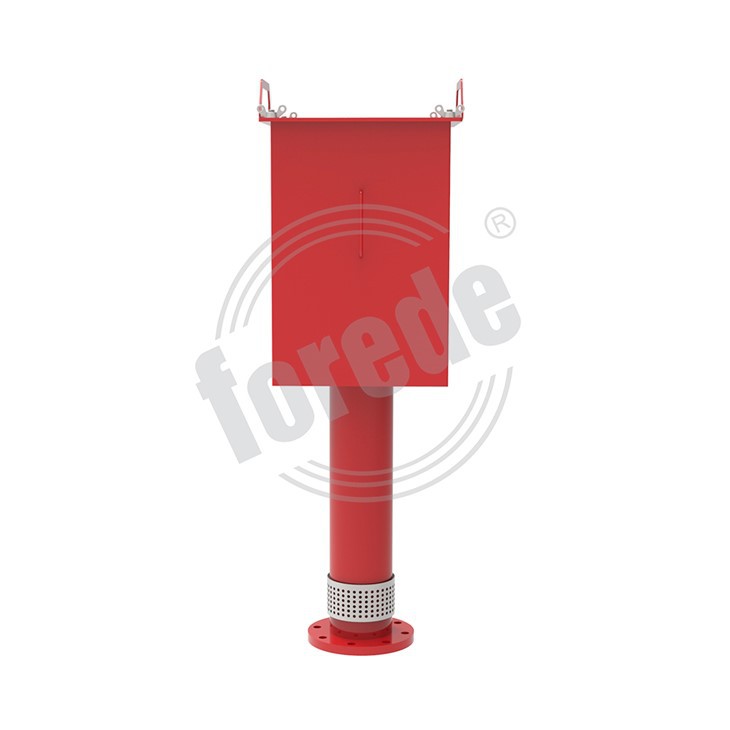

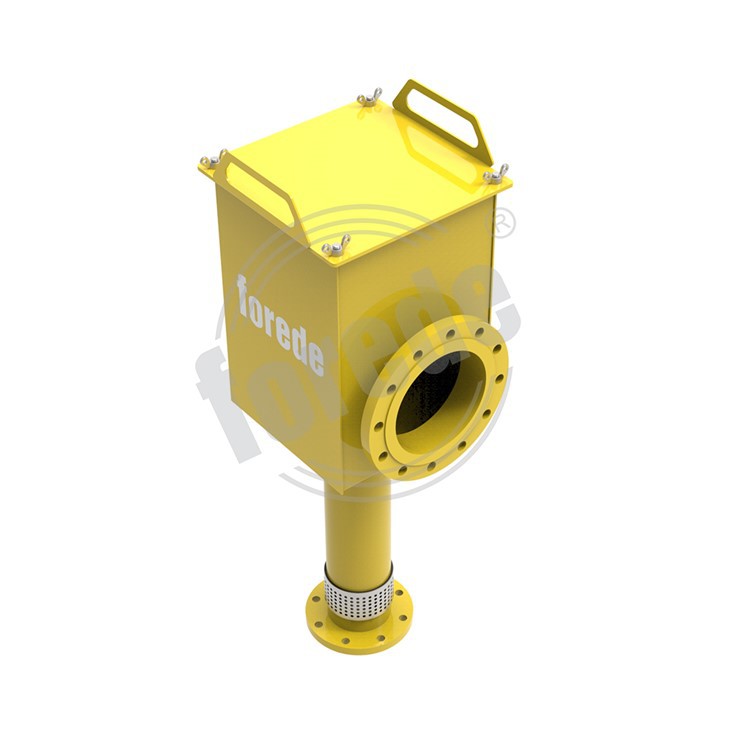

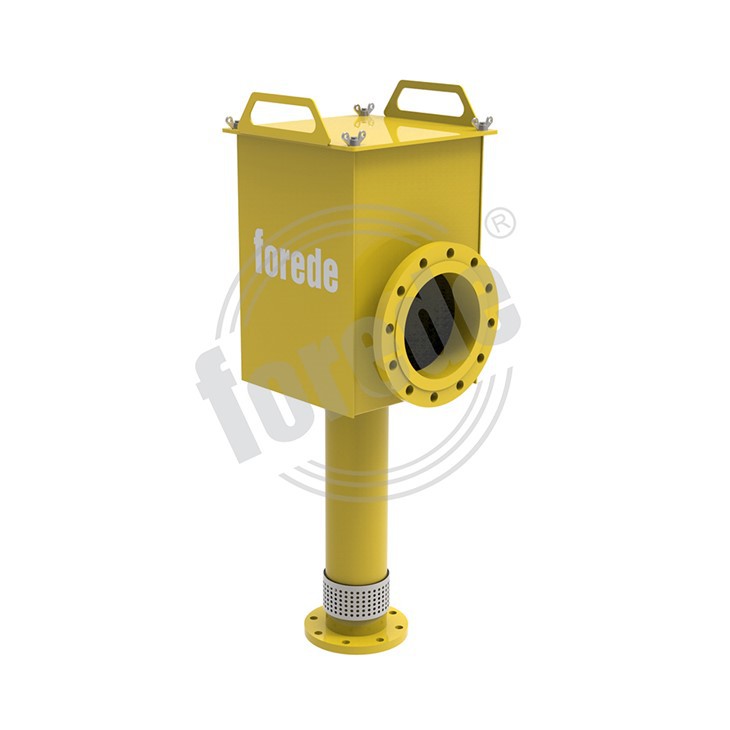

Air Foam Chamber
The foam chamber is fixedly installed on the top wall of the oil tank. When the foam liquid with a certain mixing ratio passes through foam chamber, it sucks a large amount of air to generate foam, and sprays the foam into the combustion liquid surface to form a foam layer or a film, which is a low multiple. Key equipment on spray foam fire extinguishing system.
Feature:
Expansion :Low expansion,≥ 5 Times;
Flange End: ANSI / BS4504 / GB/;
Main Material: Carbon Steel;
Installation Type: Vertical Installation;
Working Pressure Range: 0.3-0.7Mpa;
Rated Working Pressure: 0.5Mpa;
25% Liquid Drain Time : ≥ 120 s;
Surface Finishing : Epoxy Fire Red.
| Model Number | Type | Flow Rate | Inlet Size | Outlet Size |
| PCL4 | Low Expansion,vertical | 240LPM | 50mm(2'') | 80mm (3'') |
| PCL8 | Low Expansion,vertical | 480LPM | 65mm(2.5'') | 100mm(4'') |
| PCL16 | Low Expansion,vertical | 960LPM | 80mm (3'') | 150mm(6'') |
| PCL24 | Low Expansion,vertical | 1440LPM | 100mm (4'') | 200mm (8'') |
FAQ
Q. How do you deliver the goods and how long does it take to arrive?
A: We usually deliver mass order by sea and air, delivery time is depended on the carrier,urgent trail order usually deliver by
DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Railway also optional.
Q.How long does it take to produce the product?
A: Conventional products and small quantities can be produced within 15 days. The specific production time needs to have specific products and product quantities to confirm.
Q.What about the lead time?
A:Sample needs 7-15 days, mass production time needs 30-40 weeks for order quantity more than 1 container.
Q.Do you have any MOQ limit?
A:For conventional products, Low MOQ, OEM products request 30-40days.
Q. What's your payment terms?
A: We accept T/T, L/C, Western Union, Paypal,etc
Order Information
Dear Customer,
Before ordering, please contact with our sales team to discuss order information, such as Model Number, Flow Rate, Material,Control Ways, Package,Etc.
If you have any other requirements or wanna know more info about our products, welcome to contact as well. Our Sales team and Technical Department are willing to support you.
Hot Tags: fire foam chambers, China, manufacturers, suppliers, wholesale, price, Tank Foam Chamber, Inline Foam Inductor, Low Expansion Foam Chamber, Vertical Foam Chamber, Foam Chamber Fire Fighting
Feature:
Expansion :Low expansion,≥ 5 Times;
Flange End: ANSI / BS4504 / GB/;
Main Material: Carbon Steel;
Installation Type: Vertical Installation;
Working Pressure Range: 0.3-0.7Mpa;
Rated Working Pressure: 0.5Mpa;
25% Liquid Drain Time : ≥ 120 s;
Surface Finishing : Epoxy Fire Red.
