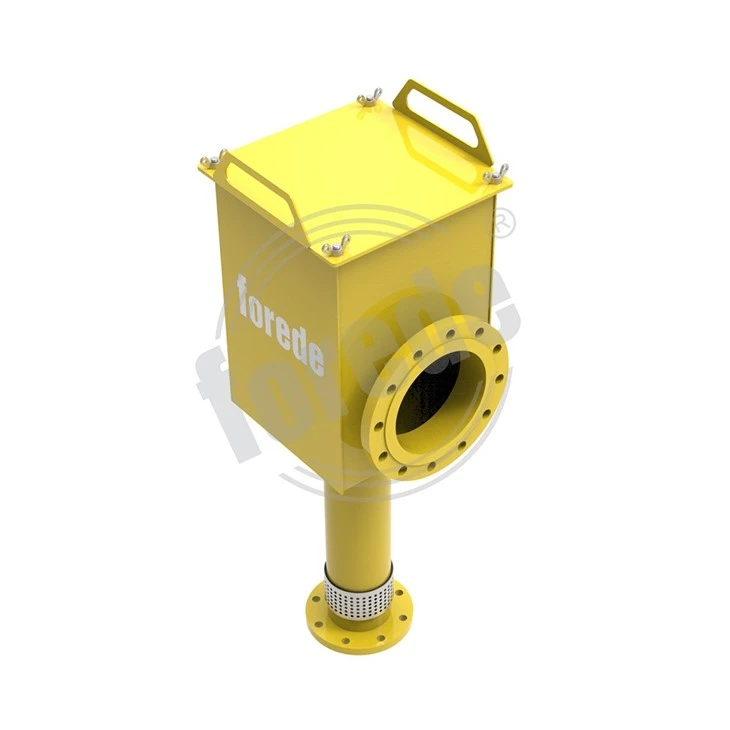

Vertical Foam Chamber

forede ® Vertical foam chamber is an essential firefighting equipment that provides fast and effective fire suppression solutions. It is a special kind of foam nozzle designed to deliver large volumes of water mixed with foam concentrate in high applications such as tanks, loading racks, and high-hazard areas.

The vertical foam chamber can be mounted on the top or side of a storage tank and is ideal for controlling or suppressing fires in an open-top container storage. It works by generating foam at a rapid rate to quickly blanket and extinguish the flames. The foam layer created by the vertical foam chamber helps to cool the fire, thereby reducing the risks of reignition.

One of the benefits of using a vertical foam chamber is that it can cover a wide area and create a barrier of foam to contain and suppress the fire. The vertical foam chamber's design allows the maximum mixing of foam concentrate and water, resulting in a good quality foam and high expansion ratios that help to extinguish the fire.

Products Specification

Features

Flow Rate: 240/480/960/1440LPM

Material: Carbon Steel

Working Pressure: 0.7Mpa;

25% Liquid Drain Time: ≥120s

Flange End: ANSI/BS4504/GB

Surface Finshing: Epoxy Fire Red

Material	Carbon steel
Flow Rate	240/480/960/1440LPM
W.P.	0.7Mpa
25% Liquid Drain Time	-45° to +75° Vertically, 360° Rotation
Inlet Size	2"/2.5"/3" /4""

FAQ

1.What is a foam chamber?

Foam Chamber is designed to discharge expanded foam directly onto the surface of a flammable or combustible liquid for fire extinguishment. Classified as a Type II discharge device in accordance with NFPA Standard 11, foam chamber delivers low expansion foam directly onto the fuel surface.

2. What is the difference between foam pourer and foam chamber?

Foam chambers are a combination of a foam mixing chamber and a foam maker with an air inlet. A removable orifice plate is located between the flange inlet and solution pipe flange, and is sized to deliver the required foam solution at a specified pressure.

3. How vertical foam chamber works?

Vertical Foam Chamber work by applying a foam mixture to combustible surfaces. The foam creates a blanket-like layer that covers the surface of the fue,l preventing oxygen from reaching it, thus smothering the fire. The foam mix is created by judiciously blending water, foam concentrate, and air to form a stable mixture that gets discharged through the chamber. The high velocity of the foam jet ensures that the foam is sprayed onto the blazing surface and not dispersed into the air.

4. Where need to use the foam chamber?

Foam chambers are essential tools for fire suppression in high-risk areas such as flammable liquid storage tanks, petrochemical facilities, aircraft hangers, and chemical manufacturing plants.
