Products Description

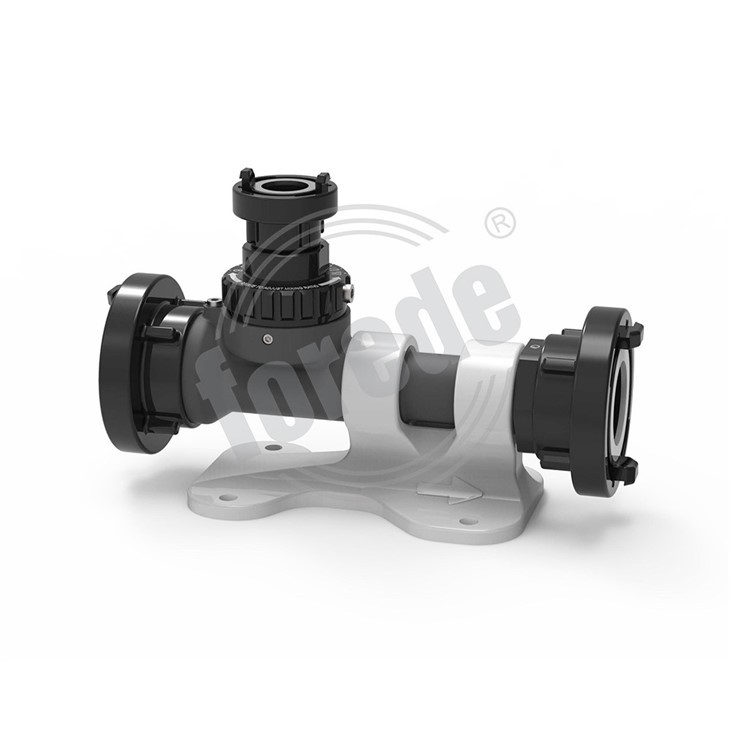

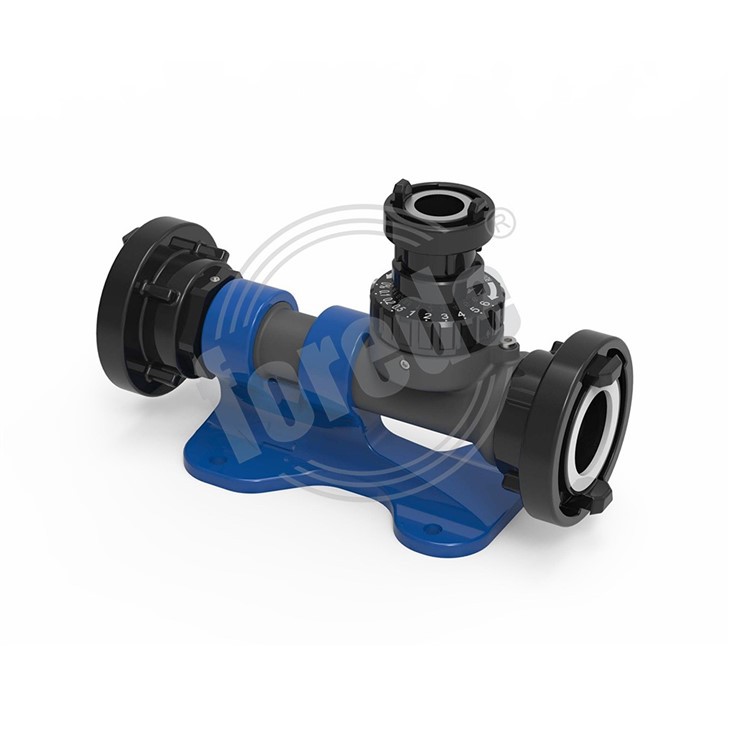

Foam Generator Foam Inductor
forede ® Foam generator foam inductor is an essential tool used by firefighters to create and control the spread of flames. It is a critical component of a fire suppression system, allowing firefighters to quickly and safely extinguish fires. forede ® Foam generator foam inductors are known for their efficiency, reliability, and ease of use.
forede ® foam generator foam inductor works by mixing water with foam concentrate, creating a foam solution that is then applied to the fire. It works by drawing in air and mixing it with the foam concentrate, creating a dense, high-quality foam that is ideal for extinguishing fires. The foam is specifically designed to smother and cool the fire, cutting off its oxygen supply and stopping it from spreading.
One of the main advantages of using forede ® foam generator foam inductor is its ability to create a foam blanket that can cover the entire surface of the fire. This means that even the smallest of fires can be easily extinguished, preventing them from spreading further. The foam is also highly effective at suppressing large, intense fires, reducing the risk of injury or damage to property.
Products Specification
Features
Adjustable Ratios from 0.1-0.2-0.5-1-2-3-4-5-6%
Hard anodized aluminum , Laser engraved
Simple to operate (Rotate mixing ring to adjust foam ratio)
Various connection methods, such as BS336, Storz, Gost, etc.
Compatible with DN25 suction tube
forede ® Foam generator foam inductor is a highly effective firefighting tool that helps control and extinguish various types of fires, including those caused by flammable liquids. It works by injecting foam concentrate into the water stream, creating a thick foam that quickly smothers the flames. This tool is easy to use, lightweight, and portable, making it ideal for emergency responders. Thanks to its simplicity and effectiveness, the foam generator foam inductor helps save lives and protect properties from fire damage.
| Material | Aluminium Alloy | |||
| MFlow Rate | 200LPM＆400LPM | |||
| W.P. | 72PSI (5 bar) | |||
| Max. W.P. | 205PSI (14 bar) | |||
| Mixing Ratio | OFF-0.1-0.2-0.5-1-2-3-4-5-6 % | |||
| Inlet Size | 2'' | |||
| Coupling | Storz, NH, INST, GOST, Machino, etc. | |||
FAQ
Frequently Asked Questions
What is the use of foam generator foam inductor?
-
The foam proportione foam inductorr is a firefighting equipment used by firefighters in the context of firefighting. It is used to dose the foam concentrate in proportion to the flow of water, in order to form foam to extinguish fires. It is also called an "foam inductor", "foam eductor", "foam generator" or "foam dosing system".
How far should foam generator foam inductor be from pump?
-
The position of the eductor in the hoseline is also important, as it must be within a certain distance from the nozzle (the general rule is within 100 feet of the nozzle). Depending upon how much hose has been pulled and is being used, the eductor will be positioned no more than 100 feet back from the nozzle
What PSI is a foam eductor?
-
200 psi (14 bar) must be maintained at the eductor inlet to obtain the proper mixture. 3. The nozzle and foam generator foam inductor must be rated at the same flow for maximum performance. However, in all cases, the nozzle flow setting must not be less than the foam generator foam inductor.
