Name: China Inline Foam Proportioner Manufacturers, Suppliers - Wholesale Price - FOREDE
Brand: FOREDE
SKU: 255534890

Description

Technical Parameters

Products Description

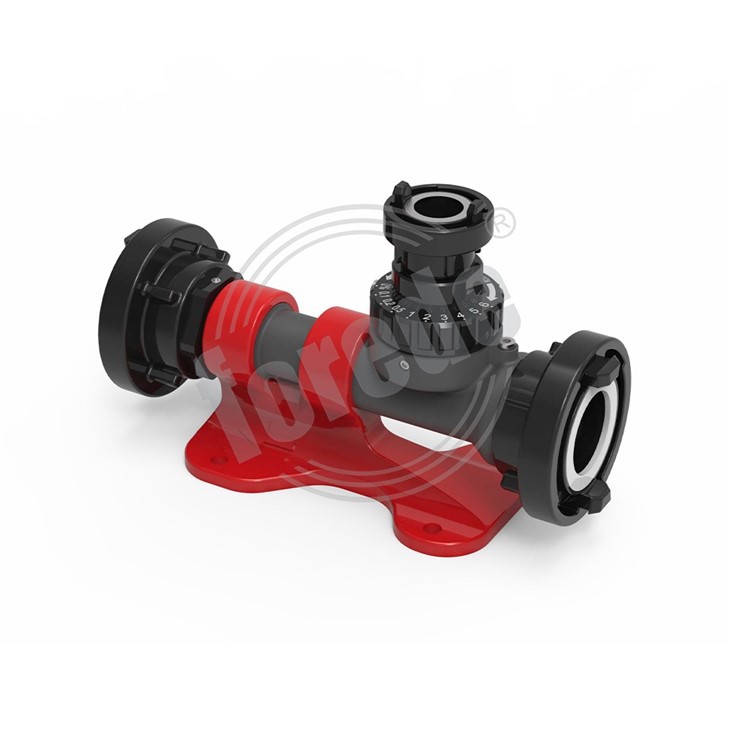

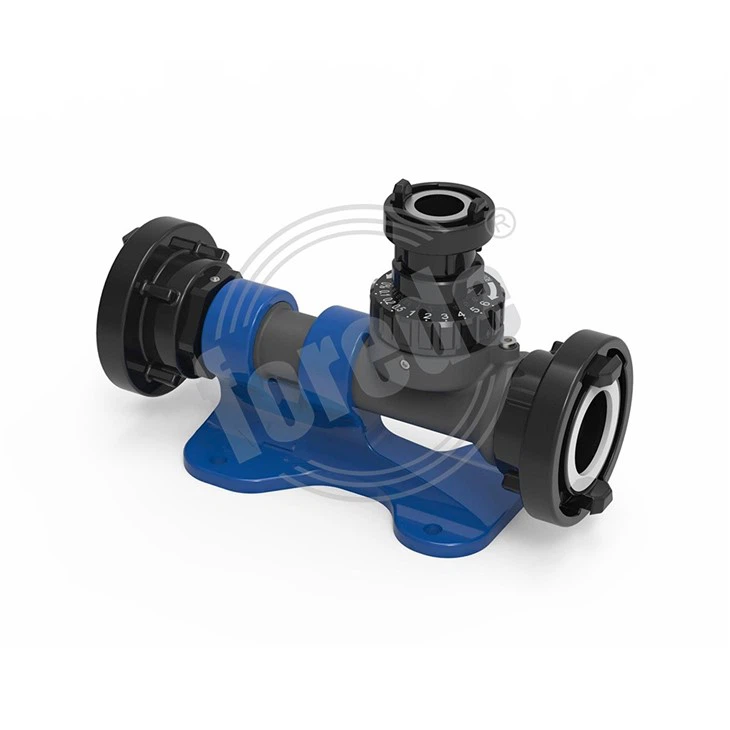

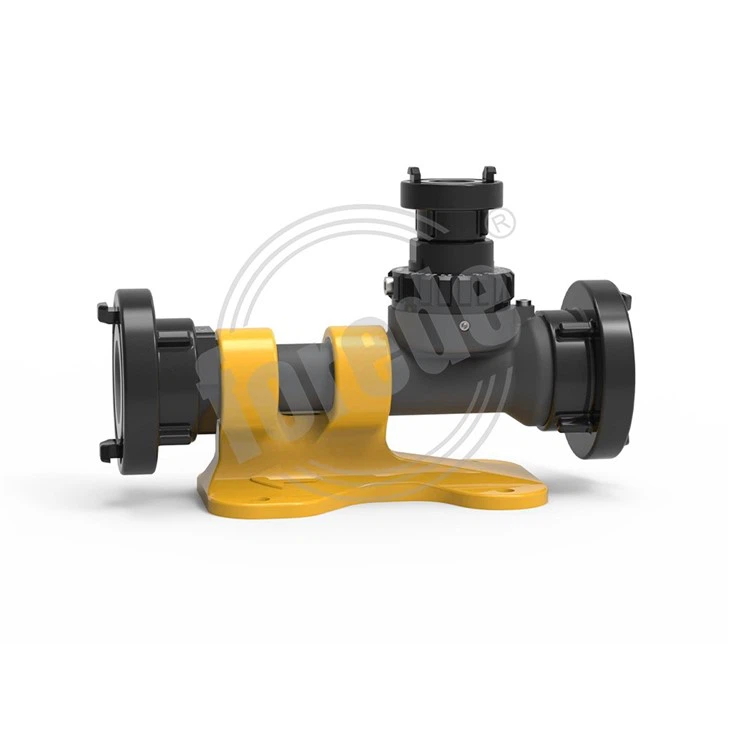

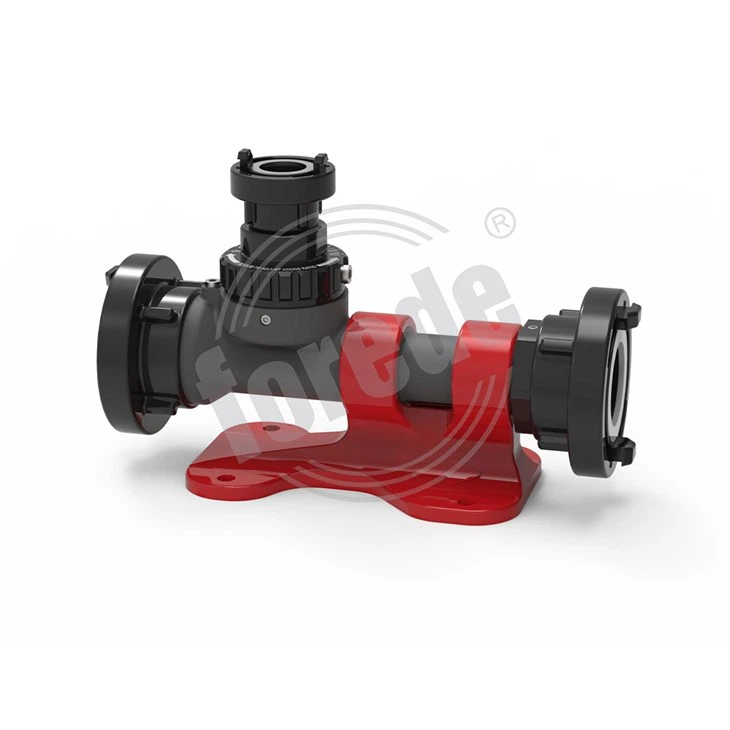

Inline Foam Proportioner

forede ® Inline Foam Proportioner is an essential tool used by firefighters to create and control the spread of flames. It is a critical component of a fire suppression system, allowing firefighters to quickly and safely extinguish fires. forede ® Inline Foam Proportioner are known for their efficiency, reliability, and ease of use.

forede ® Inline Foam Proportioner work on the Venturi Principle. This principle uses extreme pressure loss inside the eductor to allow foam concentrate to flow up a pickup tube and into your water stream to create foam solution.

One of the main advantages of using forede ® Inline Foam Proportioner is its ability to create a foam blanket that can cover the entire surface of the fire. This means that even the smallest of fires can be easily extinguished, preventing them from spreading further. The foam is also highly effective at suppressing large, intense fires, reducing the risk of injury or damage to property.

Products Specification

Features

Adjustable Ratios from 0.1-0.2-0.5-1-2-3-4-5-6%

Hard anodized aluminum , Laser engraved

Simple to operate (Rotate mixing ring to adjust foam ratio)

Various connection methods, such as BS336, Storz, Gost, etc.

Compatible with DN25 suction tube

forede ® Inline Foam Proportioner is a highly effective firefighting tool that helps control and extinguish various types of fires, including those caused by flammable liquids. It works by injecting foam concentrate into the water stream, creating a thick foam that quickly smothers the flames. This tool is easy to use, lightweight, and portable, making it ideal for emergency responders.

Material	Aluminium Alloy
MFlow Rate	200LPM＆400LPM
W.P.	72PSI (5 bar)
Max. W.P.	205PSI (14 bar)
Mixing Ratio	OFF-0.1-0.2-0.5-1-2-3-4-5-6 %
Inlet Size	2''
Coupling	Storz, NH, INST, GOST, Machino, etc.

FAQ

Frequently Asked Questions

How does an Inline Foam Proportioner work?

Inline Foam Proportioner work on the Venturi Principle. This principle uses extreme pressure loss inside the eductor to allow foam concentrate to flow up a pickup tube and into your water stream to create foam solution.

What does an Inline Foam Proportioner do?

Inline Foam Proportioner is used to induct the foam liquid concentrate in water stream to supply proportioned solution of the liquid concentrate and water, to the foam producing equipment.

What PSI is a foam eductor?

200 psi (14 bar) must be maintained at the eductor inlet to obtain the proper mixture. 3. The nozzle and foam generator foam inductor must be rated at the same flow for maximum performance. However, in all cases, the nozzle flow setting must not be less than the foam generator foam inductor.
