Foam Inductors

Foam Inductors
Product Introduction:
The forede® brand Foam Inductors are an essential tool for firefighters and first responders when it comes to combating fires. These devices are designed to help generate and add foam efficiently and effectively to water stream while combating flames. Foam Inductors are available in various sizes and are connected to the water pump system of a fire truck or other firefighting equipment.
Send Inquiry
Description
Technical Parameters
Products Description
1

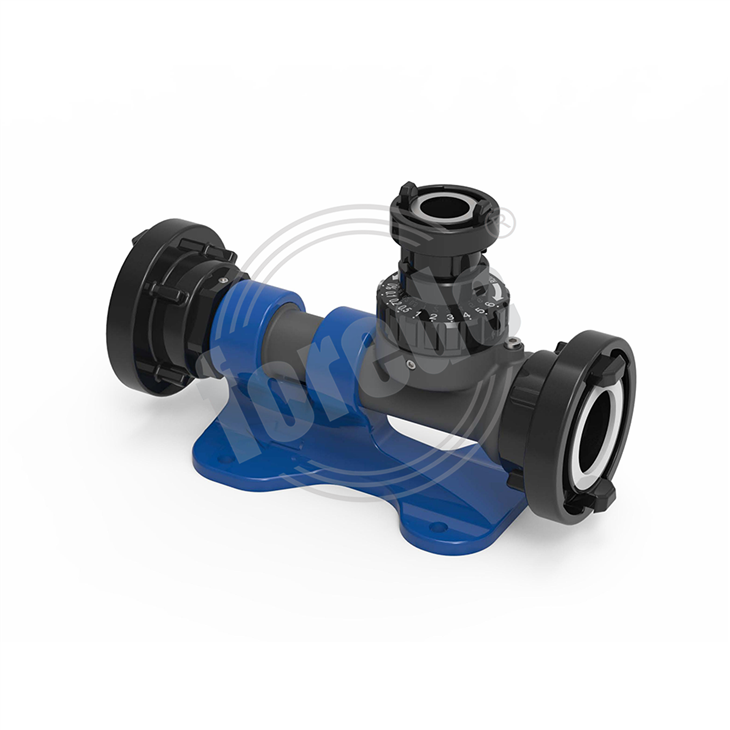

forede® Foam Inductors

The forede® brand Foam Inductors are an essential tool for firefighters and first responders when it comes to combating fires. These devices are designed to help generate and add foam efficiently and effectively to water stream while combating flames. Foam Inductors are available in various sizes and are connected to the water pump system of a fire truck or other firefighting equipment.



These inductors work by creating a vacuum that draws foam concentrate from a separate container. The foam concentrate then mixes with water and is delivered to the fire through a nozzle. The result is that a blanket of foam forms over the flames, smothering them and preventing the fire from spreading further.



Foam Inductors are essential for firefighters because they provide them with an effective tool for successfully battling any type of fire. These inductors can be used to fight fires in industrial, residential, and commercial settings. They are an efficient way to attack fires in areas where water may not be available or where the use of water could cause more damage.



Another great benefit of Foam Inductors is that they are efficient and cost-effective. Once the Foam Inductor is in place, it can generate foam for an extended period of time, reducing the need for refilling. They are easily adaptable to any fire truck, making them accessible to any fire department.

2
Black
2
Yellow
2
White
2
Blue
Products Features

 Coupling type: Instanteous,Storz,Gost,Machino,NH

 Inlet and Outlet: 2" (DN50)

 Foam Inlet:1" (DN25)
 Material: Aluminum Alloy
 Adjustable Ratios:0.1-0.2-0.5-1-2-3-4-5-6%
 Working Pressure: 5 Bar
 Max Pressure: 14 Bar

 Application: Fire fighting


Technical Parameter
Number Inlet & Outlet Size Foam Inlet Working Pressure Mixing Ratios
PHF/C-4 2" (DN50) 1" (DN25) 5 Bar 0.1-0.2-0.5-1-2-3-4-5-6%
PHF/C-8
2" (DN50) 1" (DN25) 5 Bar 0.1-0.2-0.5-1-2-3-4-5-6%



FAQ

Q: What is a foam inductor?

A: A foam inductor is a fire extinguishing device that helps firefighters to efficiently deliver foam concentrate to the fire. It acts as an interface between the water supply and the foam concentrate, injecting the concentrate into the water flow.

Q:What are the benefits of using a foam inductor?

A: Using a foam inductor has several benefits, such as efficient use of foam concentrate, better control over the foam/water mixture, and better firefighting capabilities in high-risk situations.

Q:How does a foam inductor work?

A: A foam inductor works by using the Venturi effect, which creates a low-pressure area at the inlet of the foam inductor. This low pressure draws foam concentrate into the water flow, where it mixes with the water creating a foam solution.

Q:What type of foam concentrate can be used with a foam inductor?

A:A foam inductor can be used with a variety of foam concentrates, such as AFFF (Aqueous film-forming foam), FFFP (Film-forming fluoroprotein foam), AR-AFFF (Alcohol-resistant aqueous film-forming foam), among others.

Q: Can foam inductors be used with any type of fire extinguishing system?

A:Foam inductors can be used with various types of fire extinguishing systems, such as fire hydrants, fire sprinkler systems, and fire trucks.
