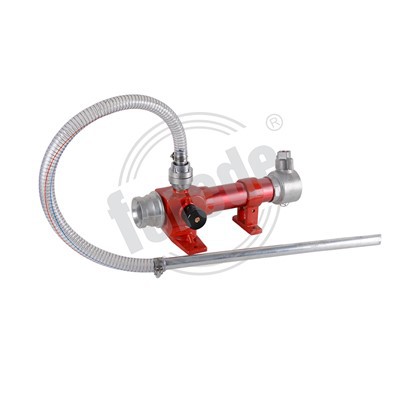

Portable Inline Foam Inductor

Product Introduction:

PHF/B Inline foam inductor is used to induct the foam liquid concentrate in water stream to supply proportioned solution of the liquid concentrate and water, to the foam producing equipment.Each inductor is designed for a predeterminded water [ressure to give the correct proportioning at that pressure and the discharge rate. The increase or decrease of the inlet pressure will result in an increase or decrease in the flow rate, which in turn will change the proportioning.

Send Inquiry

Description

Technical Parameters

Products Description

Portable Foam Inductor

Pick-up Hose: PVC;

Body Material: Hard Anodized Aluminum;

Working Pressure: 0.6-1.4MPa;

Advantage: Flush Function available to clean the nozzle;

Coupling: STORZ, NH, John Morris,GOST, Machino,etc.

Products Specificatons

Model Number	Working Pressure	Flow Rate	Connecting	Foam Solution Ratio
PHF/B4	0.6-1.4MPa	240 LPM	1.5'' or 2.5''	0.25%,0.5%,1%,,3%,6% adjustable
PHF/B6	0.6-1.4MPa	360 LPM	1.5'' or 2.5''	0.25%,0.5%,1%,,3%,6% adjustable
PHF/B8	0.6-1.4MPa	480 LPM	1.5'' or 2.5''	0.25%,0.5%,1%,,3%,6% adjustable
