Products Description

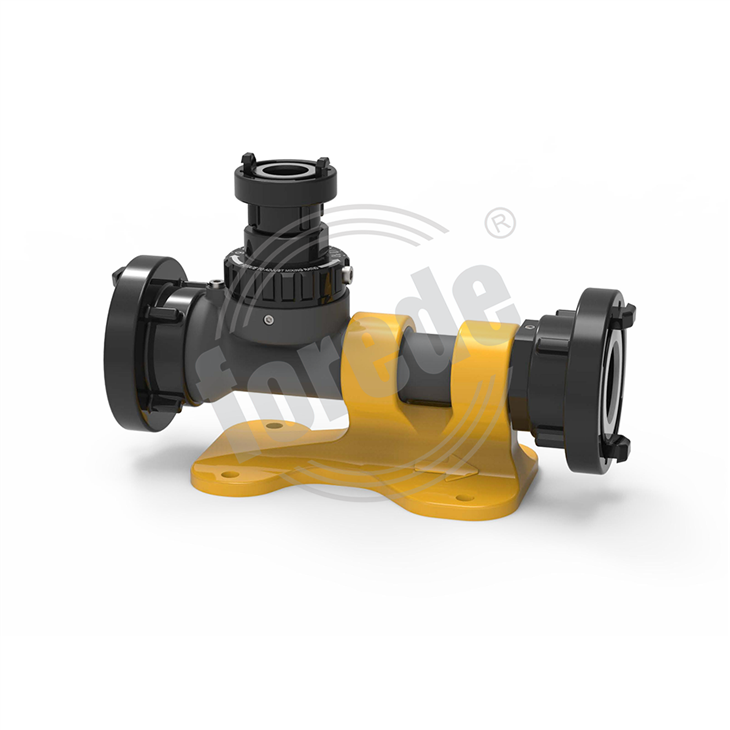

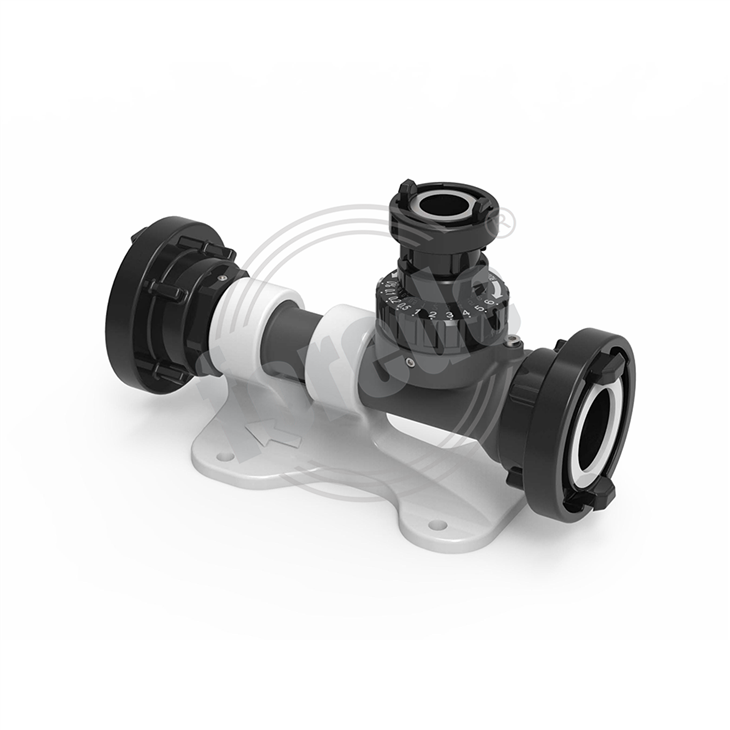

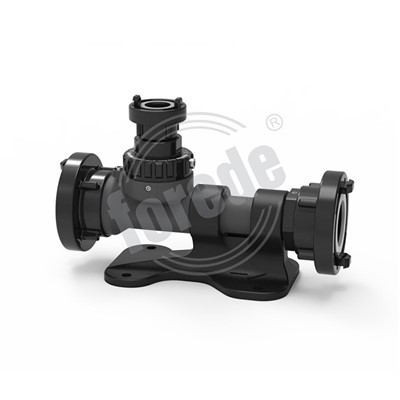

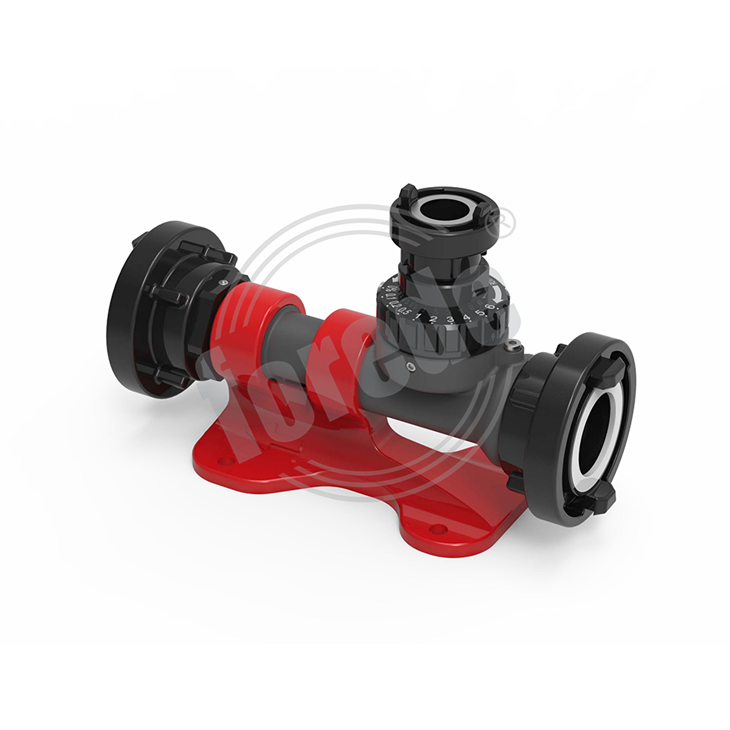

forede® Foam In Iine Eductor
The forede® brand A Foam In Line Eductor is a firefighting tool that mixes foam concentrate with water to produce foam solution for fire suppression. It uses the venturi effect, created by water flow, to draw foam concentrate into the stream at preset ratios (0.1-0.2-0.5-1-2-3-4-5-6%). Compact, portable, and easy to use, it is widely employed in industrial, marine, and municipal firefighting applications to combat fires involving flammable liquids or hazardous materials.
Products Features
Coupling type: Instanteous,Storz,Gost,Machino,NH
Inlet and Outlet: 2" (DN50)
Foam Inlet:1" (DN25)
Material: Aluminum Alloy
Adjustable Ratios:0.1-0.2-0.5-1-2-3-4-5-6%
Working Pressure: 5 Bar
Max Pressure: 14 Bar
Application: Fire fighting
Technical Parameter
| Number | Inlet & Outlet Size | Foam Inlet | Working Pressure | Mixing Ratios |
| PHF/C-4 | 2" (DN50) | 1" (DN25) | 5 Bar | 0.1-0.2-0.5-1-2-3-4-5-6% |
|
PHF/C-8
|
2" (DN50) | 1" (DN25) | 5 Bar | 0.1-0.2-0.5-1-2-3-4-5-6% |
FAQ
Q: What is a Foam In Line Eductor?
Q:How does a Foam In Line Eductor work?
Q:What are the common foam concentrate ratios?
Q:Can it be used with any foam concentrate?
Q: Can it be used with seawater?
