Products Description
Overview

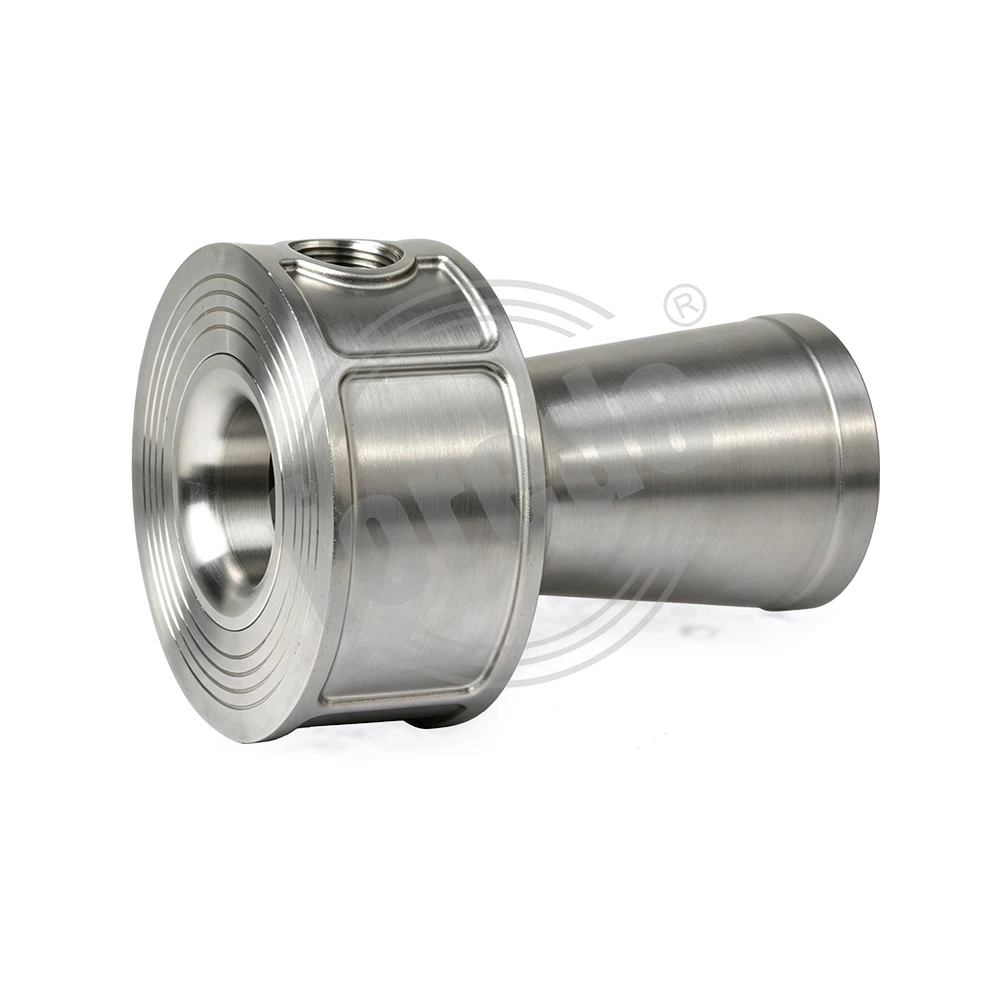

Foam ratio controller is a modified venturi foam proportioner used to accurately meter foam concentrate into the firefighting water stream. It operates in conjunction with bladder tank or balanced pressure proportioning pump skid.
Chemical Mixing: Ensuring chemicals are combined in the correct proportions.
Fuel-Air Mixture Control: In combustion systems.
Food and Beverage Production: Maintaining recipe consistency.
Water Treatment: Dosing chemicals based on water flow.
Features
Product Name: Ratio controller
Flow Rate: 50 to 400 LPM, 150 to 600 LPM, 300 to 1400 LPM
Material: Brass
Working Pressure: 1.6Mpa
Connection: Thread to Thread
Products Paremeters
forede® ratio controller with different size and standard for option:
|
Model Number |
Working Pressure |
Flow Rate |
Connecting Size |
Foam Solution Ratio |
| FRD-RC1 | 16 bar | 240LPM | DN50 | 3% or 6% |
| FRD-RC2 | 16 bar | 360LPM | DN65 | 3% or 6% |
| FRD-RC3 | 16 bar | 480LPM | DN80 | 3% or 6% |
FAQ
Q: What is ratio controller?
Ratio controller is a device that automatically mixes a precise percentage of foam concentrate with water to generate firefighting foam. It ensures the correct ratio for effective fire suppression.
Q: How does a ratio controller work?
It uses the venturi principle or a mechanical balancing mechanism to create a pressure differential that draws foam concentrate into the water stream. The mixture then forms a foam solution.
Q: What are the common types of foam ratio controllers?
Venturi-type controllers
Balanced pressure proportioners
Inline balanced pressure proportioners
Bladder tank systems with ratio controllers
Q: What foam concentrate percentages are supported?
Most controllers are designed for: 1%, 3%, 6%. Check the model specifications to confirm.
Q: How is the correct proportion maintained
The system is calibrated based on flow rate and pressure. Some systems include flow meters or pressure regulators to ensure the correct mixing ratio.
