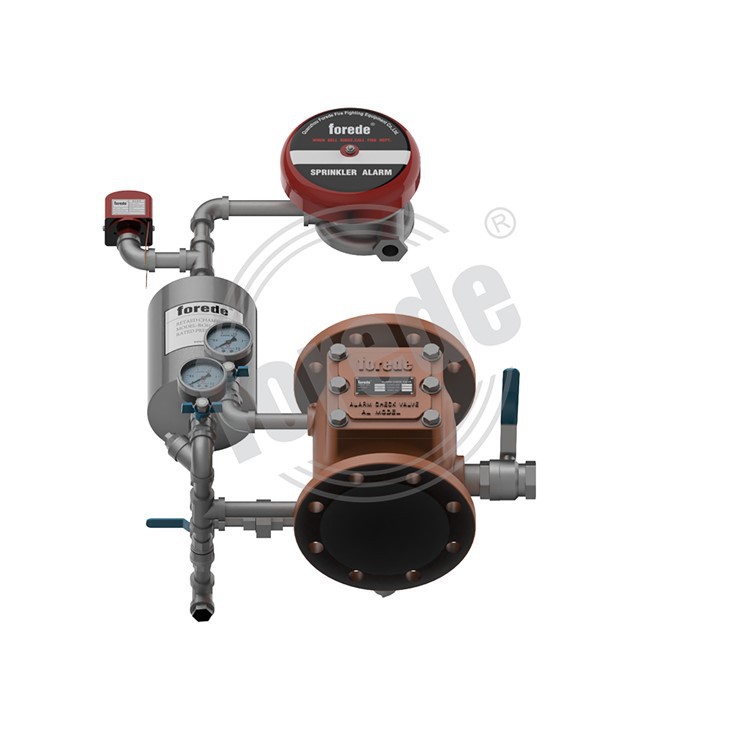

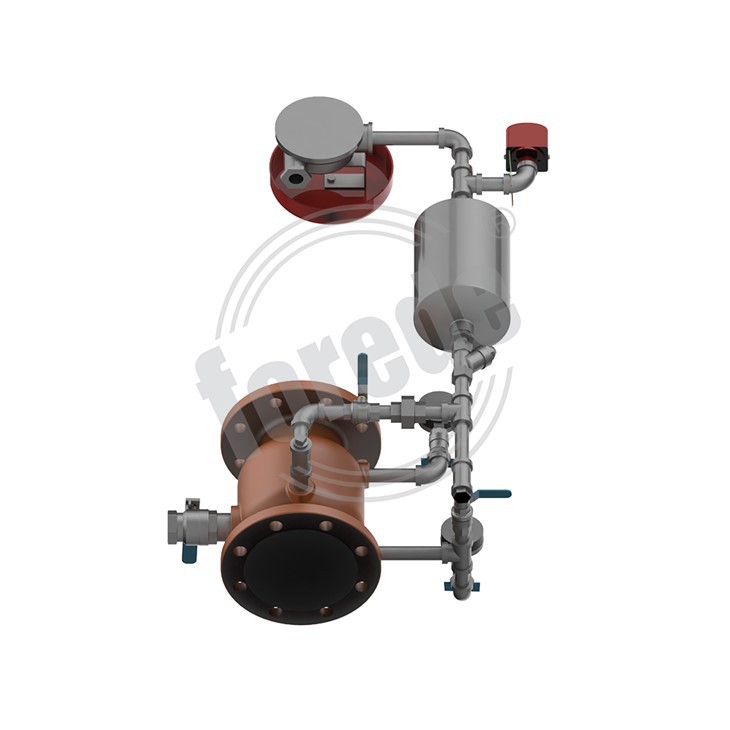

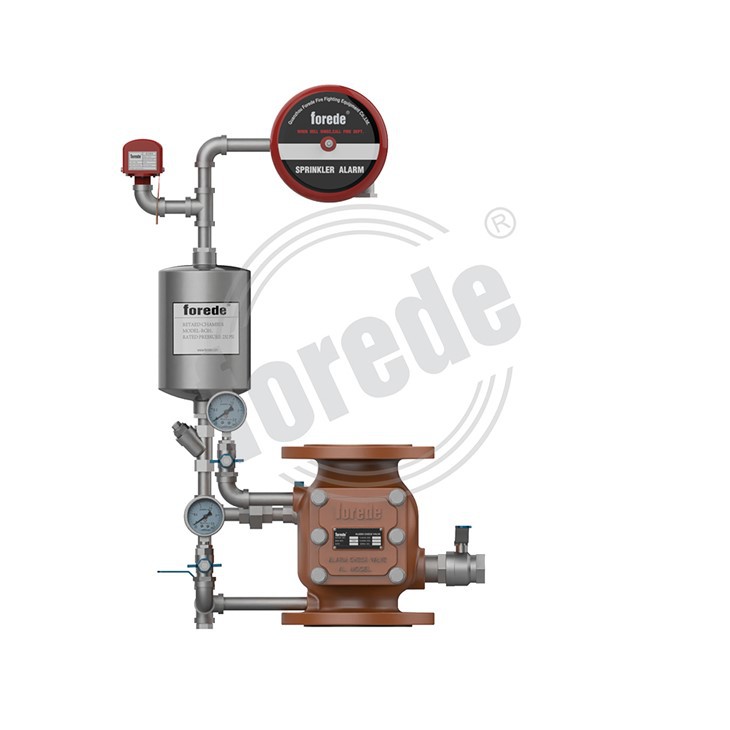

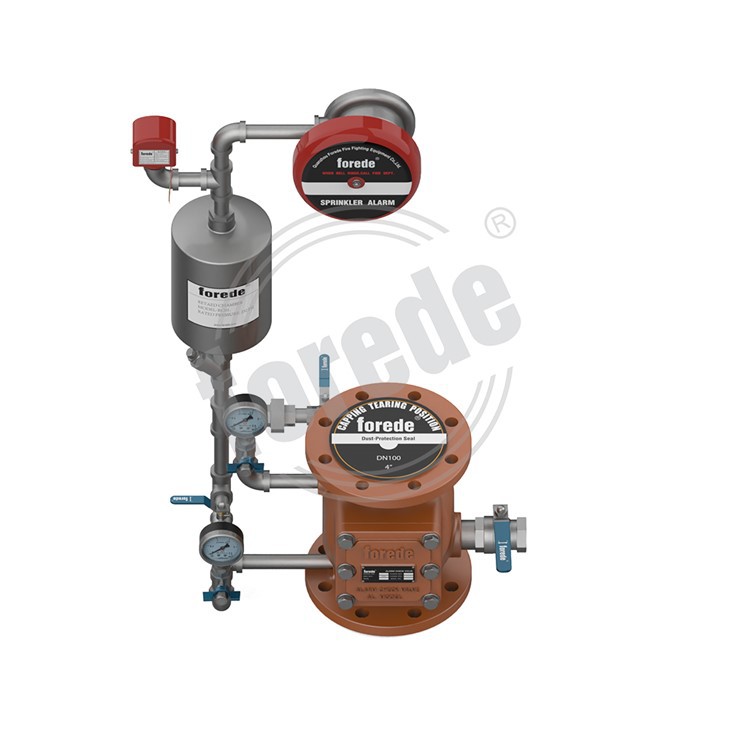

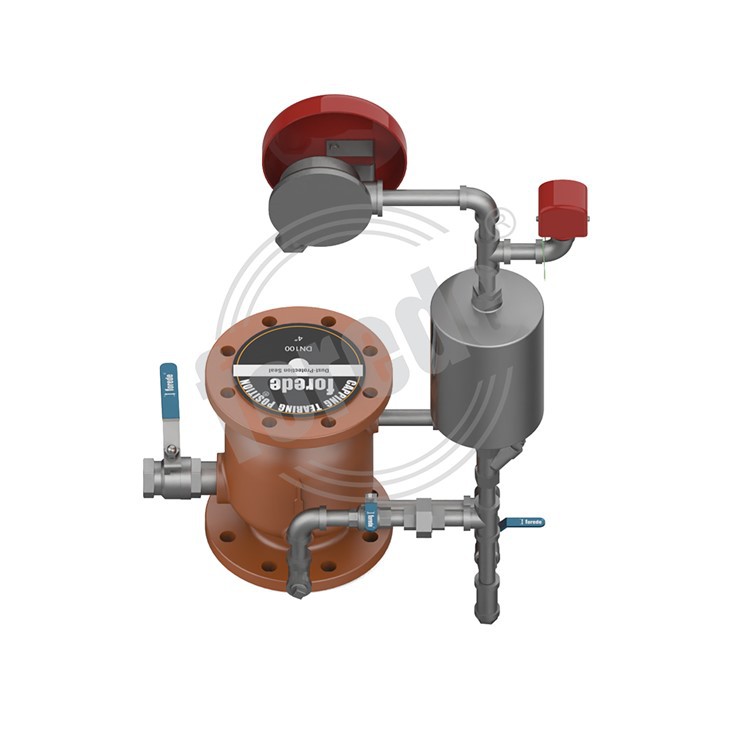

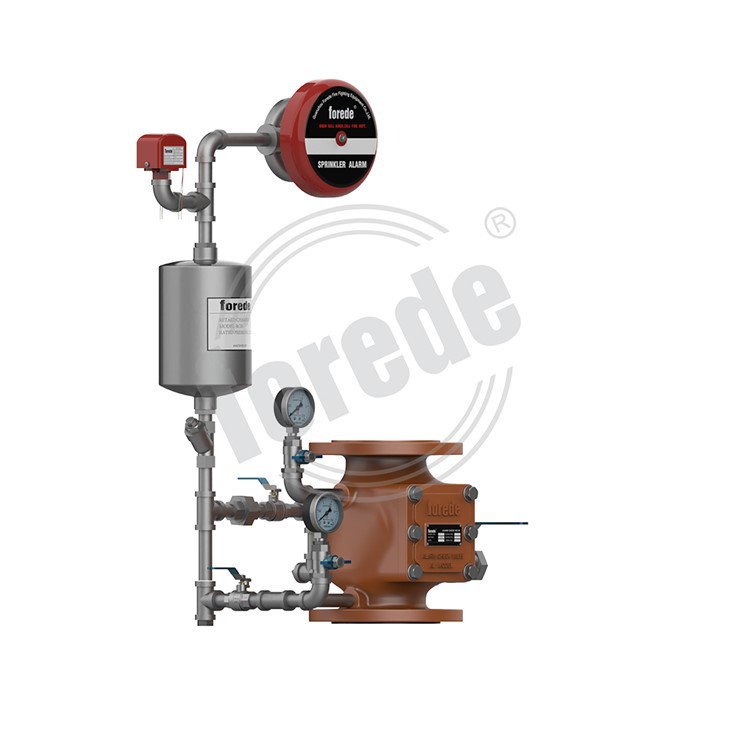

304 Stainless Steel With NBR Wet Alarm Check Valve

Product Introduction:

When a fire breaks out in the protected area of the automatic sprinkler system and the ambient temperature of the fire scene rises, the glass ball on the closed nozzle bursts (or is easily fused and financialized), and the nozzle opens to spray water to extinguish the fire. At this time, due to the drop in water pressure of the pipe network on the outlet side of the wet alarm valve, a pressure difference is formed, the valve disc assembly is opened, and the water source water is continuously replenished to the pipe network to extinguish the fire. A certain water pressure impacts the hydraulic alarm bell and sends out a continuous alarm sound. The pressure switch acts to connect the electrical contacts and the control center to give an alarm with sound and light, and at the same time start the main water supply pump for fire extinguishing.

Send Inquiry

Description

Technical Parameters

Wet Alarm Check Vlave

The alarm check valve is a water flow alarm device designed for vertical installation in the main supply to a wet pipe sprinkler system. When a flow of water from the system equals or exceeds that of a single sprinkler, the valve is to actuate a fire alarm. A wet pipe sprinkler riser is required to have specific components to perform, Standard for the Installation of Sprinkler Systems. A wet pipe system riser typically contains either an alarm check valve assembly or a "shotgun" riser assembly which are used to maintain system pressure and provide waterflow notification. Both styles of riser provide their own benefits and disadvantages that should be considered when designing a wet pipe system.

Specification

Material	Body	Ductile iron
	Clapper	SS304 w/NBR
	Pipes	SS304
	Ball valve & strainer & check valve	Brass
	Water motor gong	SS304
Working pressure	12 bar
Sealing testing pressure	24 bar
Applicable temperature	4°C to 70°C
Installation	Vertically
Flow switch contact capacity	DC24V,0.5A
Connection	Flange × Flange
Available Size	DN80 thru DN250 (3" thru 10")

FAQ

Q:Is the sample provided for free?

A few small products like sprinkler decorative covers can be provided for free, but the buyer needs to pay for the shipping. Other products need to be confirmed according to the specific situation.

Q:How to mail the samples?

Small samples are usually sent by express (DHL, UPS, FEDEX, TNT). If the buyer has other opinions, both parties can discuss with each other.

Q:What is your term and payment?

Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.

Order Information

Dear Customer,

Before ordering, please contact with our sales team to discuss order information, such as Model Number, Flow Rate, Material, Control Ways, Package,Etc.

If you have any other requirements or wanna know more info about our products, welcome to contact as well. Our Sales team and Technical Department are willing to support you.

Hot Tags: 304 stainless steel with nbr wet alarm check valve, China, manufacturers, suppliers, wholesale, price, Fire Signal Butterfly Valve, Galvanized Type Alarm Check Valve, Groove Type Alarm Check Valve, Grooved Wet Type Alarm Check Valve, Foot Type Valve With Strainer, Groove Type Alarm Valve

Features

1) Ductile iron construction valve body,less weight and extra strength.

2) Easy maintenance just require to disassemble the valve cover .

3) The all moving parts can be serviced without removing the valve from the installed position.

4) Simple design for easy installation and operation.

5) Vertical installation.

6) CCCF certificated.
