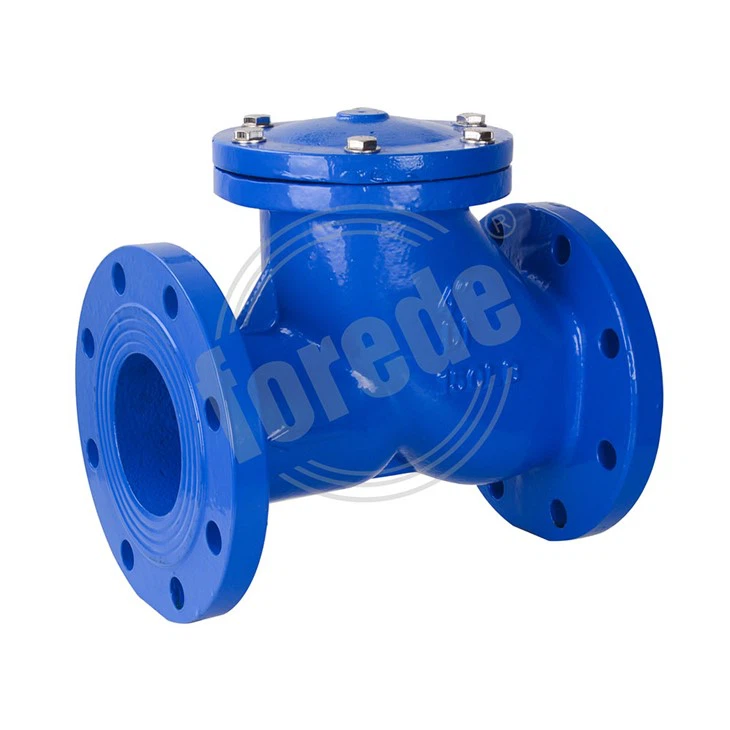

Flange End Ball Type Check Valve
HQ41X ball check valve is a full bore ball valve with a flanged connection. The usage of the flange end ball valve is to allow or stop the flow in the pipeline system and ensure the pressure within a pipeline system or process. The full bore type operates with a quarter turn and the handle of the valve can be rotated at 90 degrees ISO square mounting pad on the valve body allowing the actuator to mount on it rather than using handle for easy operation. Besides, the flange end ball valve has a spherical disc for the purpose of opening and closing the flow of the fluid. The design of the flange end ball valve presents a strength of tight and leak-free sealing even after years of operation. They are important components in a pipeline system installation that convey liquids, gasses, slurries, etc.
Specification
|
Model number
|
Inch
|
mm
|
Connection
|
Valve
|
Working pressure
|
Color
|
|
HQ41X-16Q-50
|
2
|
50
|
Flange End
|
Ball Type
|
1.0/1.6Mpa
|
red/blue
|
|
HQ41X--16Q-65
|
2.5
|
65
|
Flange End
|
Ball Type
|
1.0/1.6Mpa
|
red/blue
|
|
HQ41X--16Q-80
|
3
|
80
|
Flange End
|
Ball Type
|
1.0/1.6Mpa
|
red/blue
|
|
HQ41X--16Q-100
|
4
|
100
|
Flange End
|
Ball Type
|
1.0/1.6Mpa
|
red/blue
|
|
HQ41X--16Q-125
|
5
|
125
|
Flange End
|
Ball Type
|
1.0/1.6Mpa
|
red/blue
|
|
HQ41X--16Q-150
|
6
|
150
|
Flange End
|
Ball Type
|
1.0/1.6Mpa
|
red/blue
|
|
HQ41X--16Q-200
|
8
|
200
|
Flange End
|
Ball Type
|
1.0/1.6Mpa
|
red/blue
|
|
HQ41X--16Q-250
|
10
|
250
|
Flange End
|
Ball Type
|
1.0/1.6Mpa
|
red/blue
|
|
HQ41X-16Q-300
|
12
|
300
|
Flange End
|
Ball Type
|
1.0/1.6Mpa
|
red/blue
|
FAQ:
Q.What is the shipping method?
A: It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect). Please confirm with us before placing orders.
Q.How do you make our business long-term and good relationship?
A: We keep good quality and competitive price to ensure our customers benefit and respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
Order Information:
Dear Customer,
Before ordering, please contact with our sales team to discuss order information, such as Model Number, Flow Rate, Material, Control Ways, Package,Etc.
If you have any other requirements or wanna know more info about our products, welcome to contact as well. Our Sales team and Technical Department are willing to support you.
