Products Description

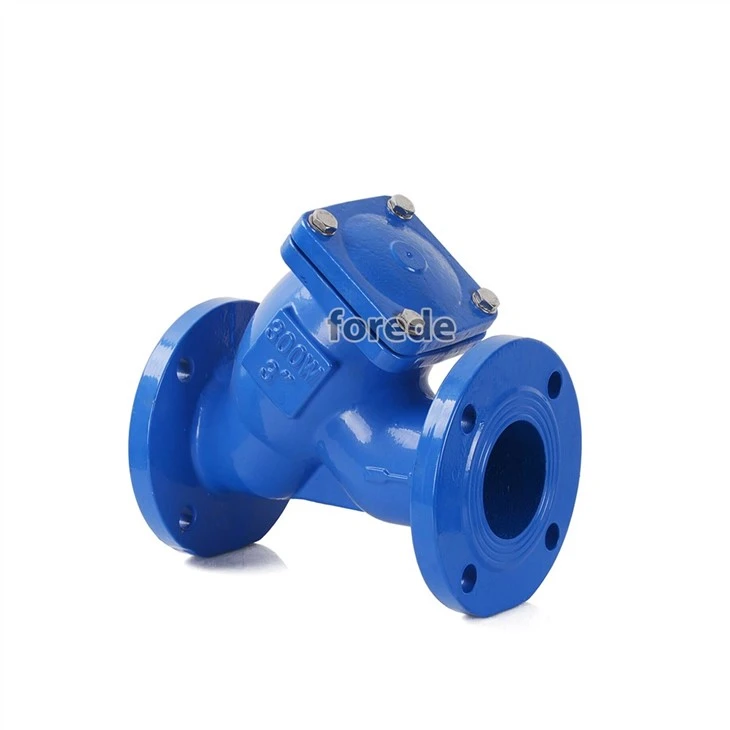

Flange End Y Strainer
The Y-type strainer with flange connection has the characteristics of advanced structure, small resistance and convenient sewage discharge. Applicable medium can be water, oil and gas.
Products Specification
|
Model number
|
Inch
|
mm
|
Connection
|
Valve
|
Working pressure
|
Color
|
|
GL41X-16Q-50
|
2
|
50
|
Flange End
|
Y Type
|
1.0/1.6Mpa
|
red/blue
|
|
GL41X--16Q-65
|
2.5
|
65
|
Flange End
|
Y Type
|
1.0/1.6Mpa
|
red/blue
|
|
GL41X--16Q-80
|
3
|
80
|
Flange End
|
Y Type
|
1.0/1.6Mpa
|
red/blue
|
|
GL41X--16Q-100
|
4
|
100
|
Flange End
|
Y Type
|
1.0/1.6Mpa
|
red/blue
|
|
GL41X--16Q-125
|
5
|
125
|
Flange End
|
Y Type
|
1.0/1.6Mpa
|
red/blue
|
|
GL41X--16Q-150
|
6
|
150
|
Flange End
|
Y Type
|
1.0/1.6Mpa
|
red/blue
|
|
GL41X--16Q-200
|
8
|
200
|
Flange End
|
Y Type
|
1.0/1.6Mpa
|
red/blue
|
|
GL41X--16Q-250
|
10
|
250
|
Flange End
|
Y Type
|
1.0/1.6Mpa
|
red/blue
|
|
GL41X-16Q-300
|
12
|
300
|
Flange End
|
Ball Type
|
1.0/1.6Mpa
|
red/blue
|
FAQ
Q: What is the minimum order quantity of the product?
A:For conventional products, Low MOQ.
Q:Can I have a sample order?
A:Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: How do you deliver the goods and how long does it take to arrive?
A:We usually deliver mass order by sea and air, delivery time is depended on the carrier,urgent trail order usually deliver by DHL, UPS, FedEx or TNT. It usually takes 5-7 days to arrive. Railway also optional. In fact, the delivery method depends on the quantity.
Q:Is it OK to OEM ?
A:A: Yes. Please inform us formally before our production and confirm the design and other requirements firstly .
Related Products
forede Main Product
Our Main Products
Contact Us
How To Cooperate With Us?
Our address
No.278-1, Meiting Village, Meilin Sub-District,
Nan'An City, Quanzhou City Fujian Province China
Phone Number
+86 18750638978(Wendy)
sales4@forede.com
Hot Tags: ductile iron flange end y strainer, China, manufacturers, suppliers, wholesale, price, Water Flow Switch, Rubber Expansion Joints, Flange Y Type Strainer, Flanged End Foot Valve, Water Flow Detector, Rubber Expansion Joints For Pumps
Features:
Flange End: ANSI150LB/GB Standard/BS Standard
Screw Material: SS304 Stainless Steel
Latch Material: SS304 Stainless Steel
Body Material: Ductile Iron,QT450
Disc Material: Ductile Iron,QT450,COVERD BY NBR.
Surface Finishing : Epoxy Red or Blue.
