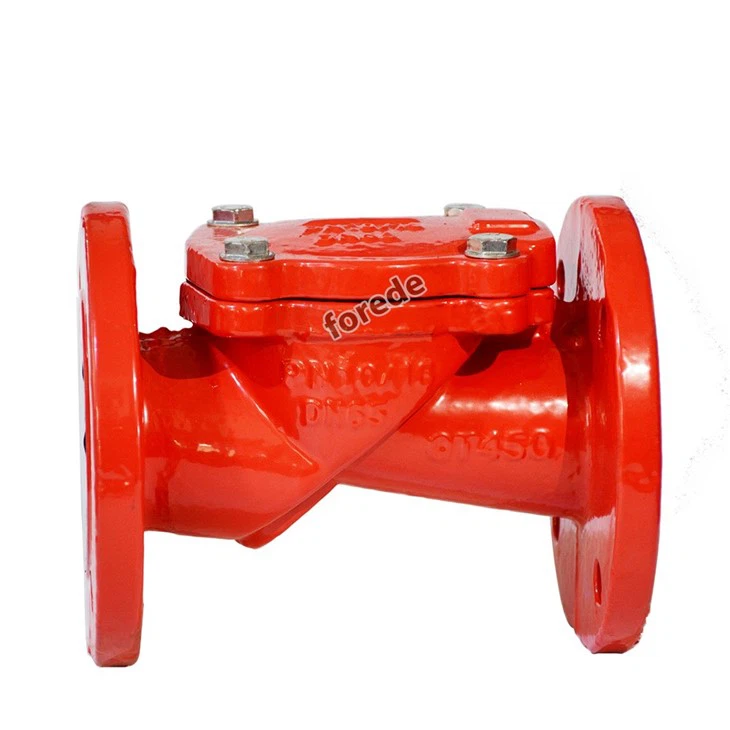

Flexible Disc check valve PN16
The Flexible Disc check valve adopts a full flow area design, which has the characteristics of small head loss, not easy to accumulate debris, and easy maintenance. Prevent pool water from flowing back into the water supply system. Check valves are generally suitable for clean media, not for media containing solid particles and high viscosity.
Rubber disc check valves are widely used in fluid piping systems in various industries, such as water supply, drainage, sewage treatment, petrochemical, food and medicine, etc. It is suitable for flow control of various media, and is easy to operate, maintain and replace, so it is favored by users.
Specification
|
Model number
|
Inch
|
mm
|
Connection
|
Valve
|
Working pressure
|
Color
|
|
H44X-16Q-50
|
2
|
50 |
Flange End
|
Flexible Disc |
1.0/1.6Mpa
|
red/blue
|
|
H44X--16Q-65
|
2.5
|
65
|
Flange End
|
Flexible Dic
|
1.0/1.6Mpa
|
red/blue
|
|
H44X--16Q-80
|
3
|
80
|
Flange End
|
Flexible Disc
|
1.0/1.6Mpa
|
red/blue
|
|
H44X--16Q-100
|
4
|
100
|
Flange End
|
Flexible Disc
|
1.0/1.6Mpa
|
red/blue
|
|
H44X--16Q-125
|
5
|
125
|
Flange End
|
Flexible Disc
|
1.0/1.6Mpa
|
red/blue
|
|
H44X--16Q-150
|
6
|
150
|
Flange End
|
Flexible Disc
|
1.0/1.6Mpa
|
red/blue
|
|
H44X--16Q-200
|
8
|
200
|
Flange End
|
Flexible Disc
|
1.0/1.6Mpa
|
red/blue
|
|
H44X--16Q-250
|
10
|
250
|
Flange End
|
Flexible Disc
|
1.0/1.6Mpa
|
red/blue
|
| H44X--16Q-300 | 12 | 300 | Flange End | Flexible Disc | 1.0/1.6Mpa | red/blue |
| H44X--16Q-350 | 14 | 350 | Flange End | Flexible Disc | 1.0/1.6Mpa | red/blue |
|
H44X-16Q-400
|
16
|
400
|
Flange End
|
Flexible Disc
|
1.0/1.6Mpa
|
red/blue
|
FAQ:
Q:How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
Q:How long does it take to produce the product?
Conventional products and small quantities can be produced within 15 days. The specific production time needs to have specific products and product quantities to confirm.
Q:What services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
Q.How do you make our business long-term and good relationship?
A: We keep good quality and competitive price to ensure our customers benefit and respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
Hot Tags: flexible disc check valve pn16 flange end, China, manufacturers, suppliers, wholesale, price, Alarm Check Valves, Swing Type Check Valve, Groove Signal Butterfly Valve, Flange End Swing Check Valve, Ductile Iron Flexible Disc Check Valve, Flange End Flexible Disc Check Valve
Features:
- Flange End: ANSI150LB/GB Standard/BS Standard;
- Screw Material:SS304 Stainless Steel;
- Gasket Material: DUCTILE IRON;
- Body Material: Ductile Iron,QT450;
- Disc Material: Ductile Iron,QT450,COVERD BY NBR;
- Surface Finishing : Epoxy Red or Blue.
