Products Description

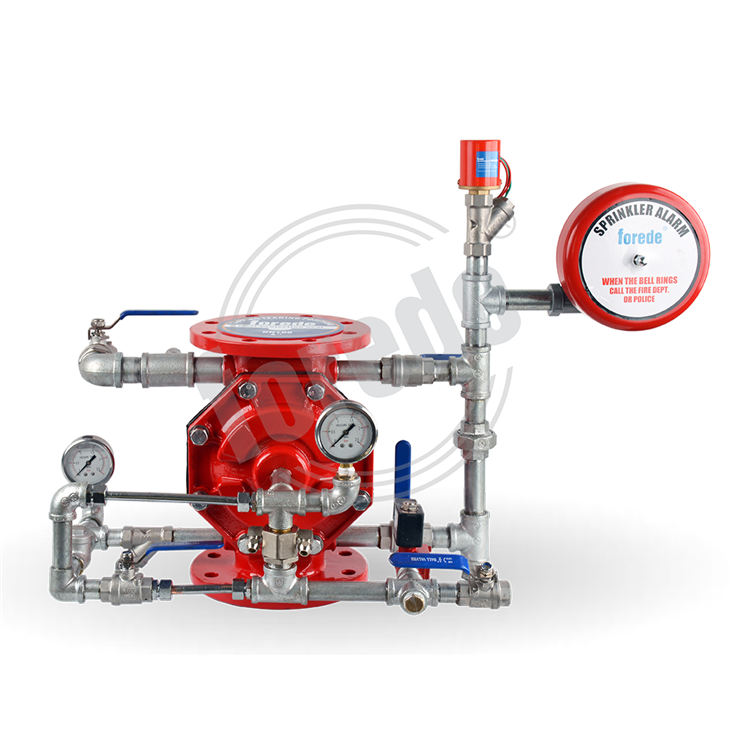

forede ® Fire Deluge Valve

The stem of forede® Fire Deluge Valve is made from brass, which is corrosion-resistant and strong enough to handle the pressure of the water flow. The hand wheel is made from grey cast iron, which is lightweight yet sturdy. Piping accessories are made from galvanized pipe, which offers exceptional corrosion resistance.

The surface of the Fire Deluge Valve is finished with epoxy red for increased visibility and protection against corrosion and damage. The working pressure of the valve is up to 16 bar, making it suitable for use in a wide range of applications where high-pressure water flow is required.

Products Feature

Body Material: Ductile Iron,QT450;

Seal Disc Material: NBR;

Ball Valve &Strainer &Check Valve: Brass Standard;

Stem: Brass;

Hand Wheel: Grey Cast Iron;

Piping Accessories: Galvanized Pipe Standard;

Surface Finishing : Epoxy Red;

Working Pressure: 16 bar.

Technical Parameter

forede ® Fire Deluge Valve

forede® Fire Deluge Valve is a reliable and efficient product that you can trust to keep your property safe in the event of a fire.

Model Number	Size	L(mm)	W(mm)	H(mm)	h(mm)	D(mm)	BS4504 PN16			ANSI 150#
Model Number	Size	L(mm)	W(mm)	H(mm)	h(mm)	D(mm)	A	B	N	A	B	N
FRD-DV1 80	DN80(3")	700	400	520	315	200	160	18	8	152.5	19	4
FRD-DV1 100	DN100(4")	700	400	520	315	220	180	18	8	190.5	19	8
FRD-DV1 125	DN125(5")	745	455	581	400	250	210	18	8	216	23	8
FRD-DV1 150	DN150(6")	745	455	581	400	285	240	22	8	241.5	23	8
FRD-DV1 200	DN200(8")	790	545	680	510	340	295	22	12	298.5	23	8

Frequently Ased Questiones

1. What is a fire deluge valve and how does it work?

A fire deluge valve is a device that is used in fire protection systems to quickly deliver a high volume of water to specific areas. It functions by rapidly opening a valve, which allows water to flow through the system's pipes and into the deluge nozzles.

2. What is the body material of the fire deluge valve?

The body material of the fire deluge valve is made from either ductile iron or QT450.

3. What type of seal disc material is used in the fire deluge valve?

The seal disc material used in the fire deluge valve is NBR.

4. What are the standard materials used for the ball valve, strainer, and check valve components of the fire deluge valve?

The ball valve, strainer, and check valve components of the fire deluge valve are made from brass.

5. What is the working pressure rating for the fire deluge valve?

The fire deluge valve is designed to withstand a working pressure of up to 16 bar.
