Products Description

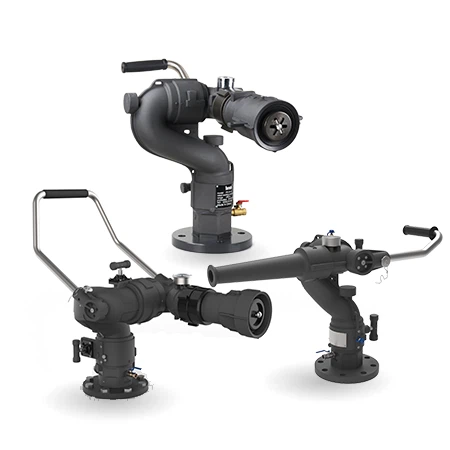

FOREDE ® PSKD8/20-40W-A Series cannon/monitor is electric wired (or wireless remote control) DC drive, which fully realizes the advantages of remote separation between the operator and the fire scene, and can well protect the personal safety of the fire extinguishers.
PSKD20-40A has the characteristics of stable and reliable performance, flexible operation, convenient maintenance, long range, light weight and small size. When spraying water jets, it can extinguish solid fires; when spraying blooming water mist, it can be used for cooling and fire fighting.
This product is suitable for being equipped with light fire trucks and fire boats. It can also be used as the front monitor of fire fighting vehicles to remove fire sources near the fire truck and effectively protect the safety of the fire truck. At the same time, the monitor can also be used as an industrial and mining enterprise and warehouse. Stationary fire extinguishing equipment in places such as, museums, exhibition halls, oil fields, storage tanks, etc.
Technical Parameter
| Model Number | PSKD8/20-40W-A |
| Flow Rate | 1200-1800-2400LPM ,Adjustable Nozzle |
|
Working Pressure |
8 bar |
| Max. Fog Angle | 120 ° |
| Max Range Of Motion | -90° to + 90 ° Vertically ,340 ° Rotation |
| Turing Speed | 24 ° Per Second Rotation ,10 ° Per Second Vertialy |
| Power Supply | DC 24 V is Standard |
| Power Consumption | 24 V @ 7.5 A |
| Waterway Size | 2 1/2" (65mm) |
| Monitor Outlet | 2 1/2" (65mm) NH Male Thread |
| Monitor Inlet | Flange 4" ANSI 150 is Standard ,Other Size and Standard is Available |
| Material | Monitor Body - SS304 Stainless Steel is Standard ,SS316 is available Nozzle - Hard Coated Anodized Aluminum Alloy |
| Control System | ICS-01 or VMCS-01 |
FAQ
Frequently Asked Questions
Q: What is the production time of the sample?
+
-
A: Generally speaking, it isn't a large-scale purchase, and the lead time about 15 working days.Of course, having an urgent order, please reconfirm with us.
Q: How to mail the samples?
+
-
A: Small samples are usually sent by express (DHL, UPS, FEDEX, TNT). If the buyer has other opinions, both parties can discuss with each other.
Q: How to have an order?
+
-
A: Before customers have an order, please tell us more details of the products you required which are good for us to introduce you or help you choose the best product.
Q: Do you have any MOQ limit?
+
-
A: For conventional products, Low MOQ, OEM products request 30-40days.
Q: Can you accept OEM?
+
-
A:Yes, we do customized design for our clients.
Factory View
Hot Tags: water truck water cannon, China, manufacturers, suppliers, wholesale, price, Two Piece Flush Escutcheon, Portable Water Monitor, Forestry Fire Nozzle, Rising Stem Groove Type Gate Valve, Straight Landing Valve, Quick Attack Monitor
- Stainless Steel 304 construction, SS316 optional
- Elevation travel of 180°, from -90° to +90°
- 340° Rotation horizontally
- Nozzle has a built-in Stream Sharper

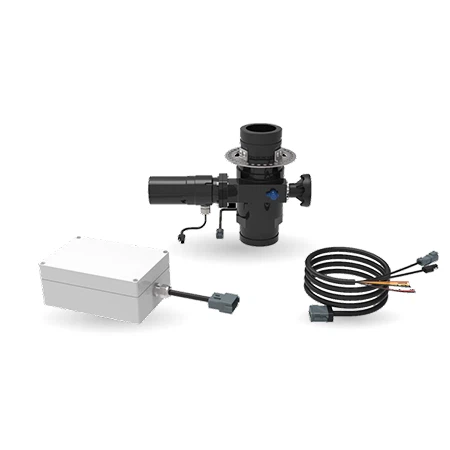

-Complete with full control system (optional)
- Vehicles mounted (Joystick, RC transmitter)
- Industries (RC transmitter, Control box)
- IP67 waterproof
- Long service and easy repair
- Flow rate 1200 LPM / 1800 LPM / 2400LPM Adjustable
- Water Jetting Range: Max ≥60 meters
- Working Pressure: 8 bar (0.8MPa)
- Weight: 21kg
- Carton Package: 33kg/50.5*46.5*55cm
- Color: RAL3000 Red standard
