Products Description

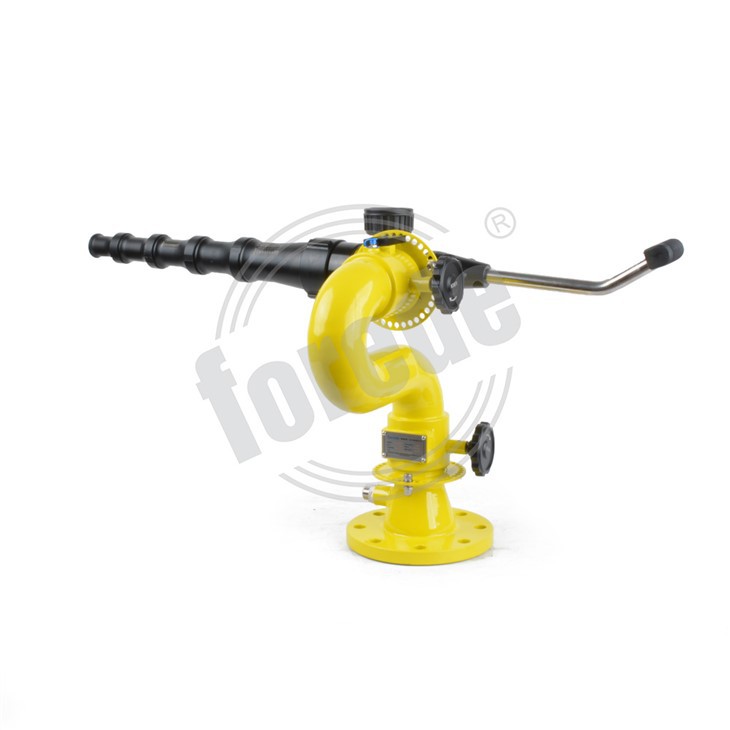

Stack Tips Water Cannon

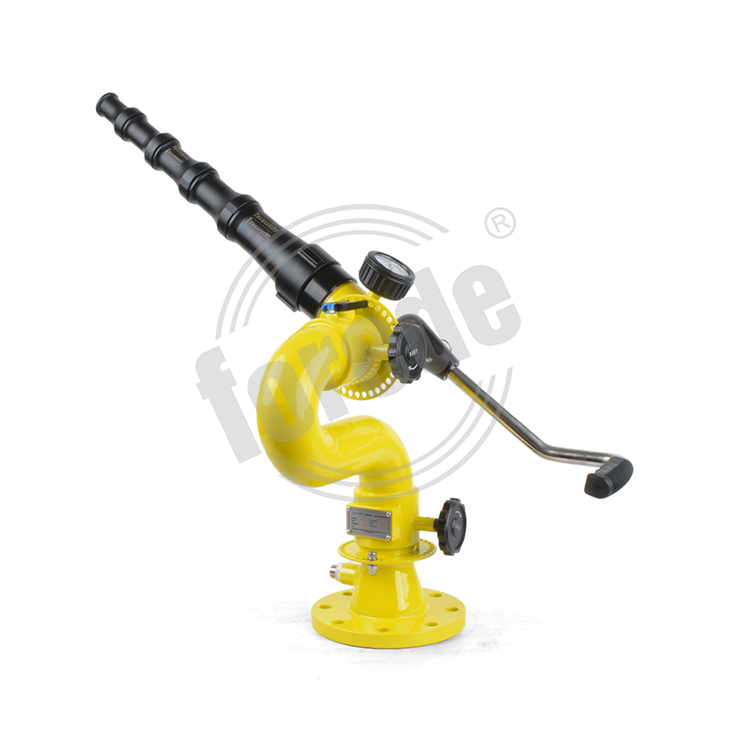

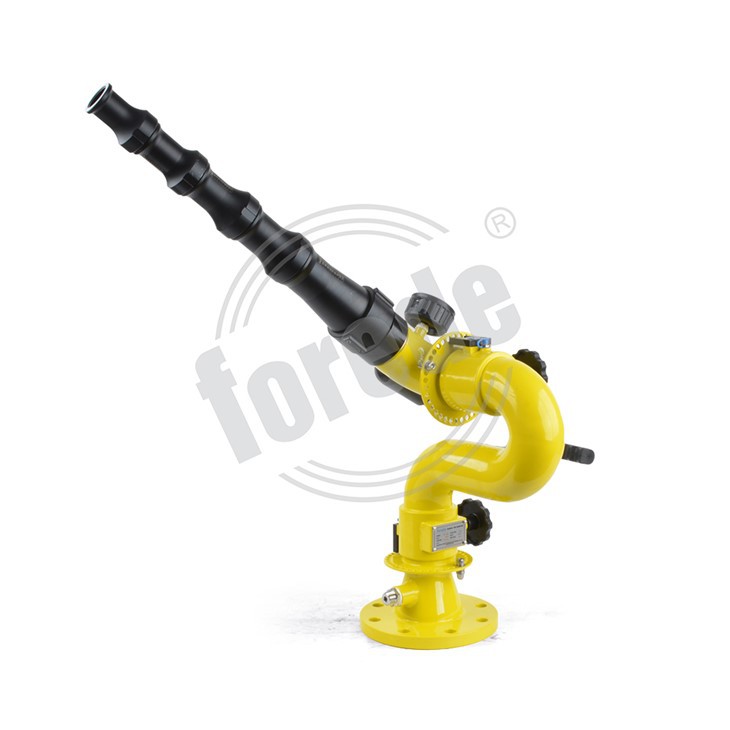

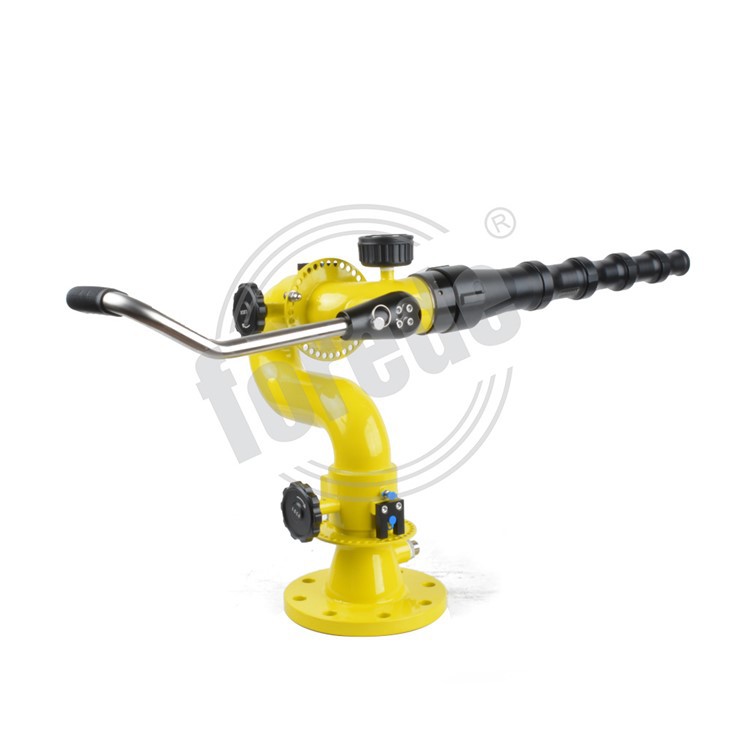

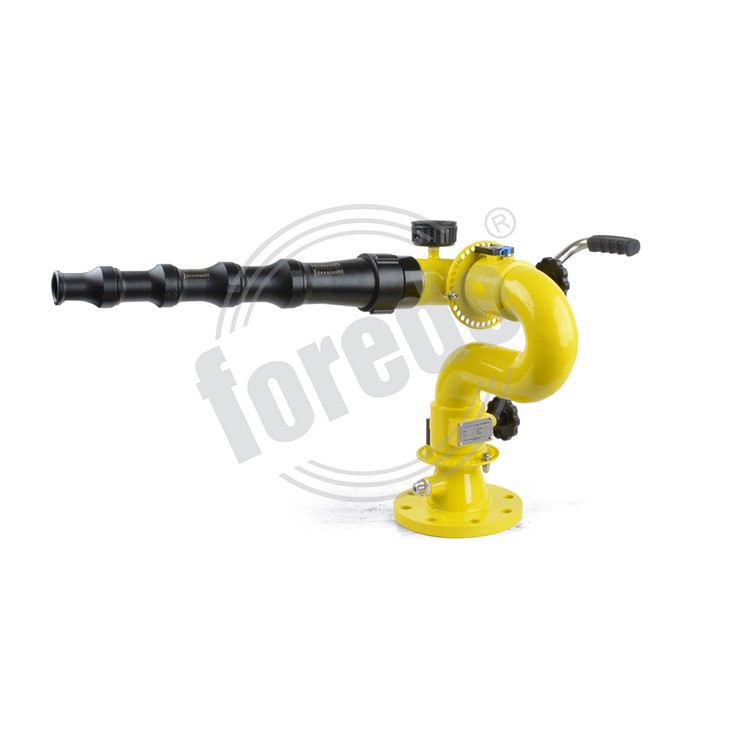

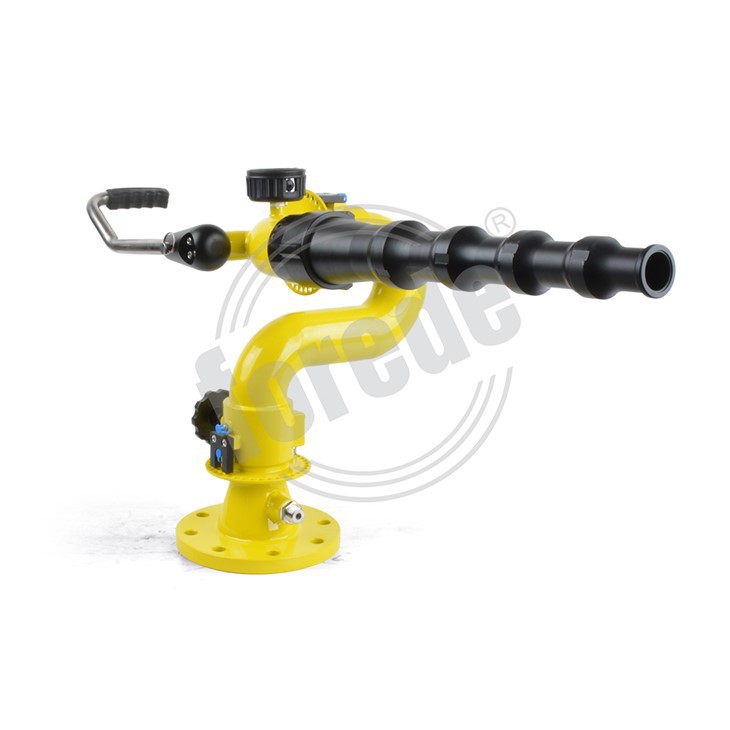

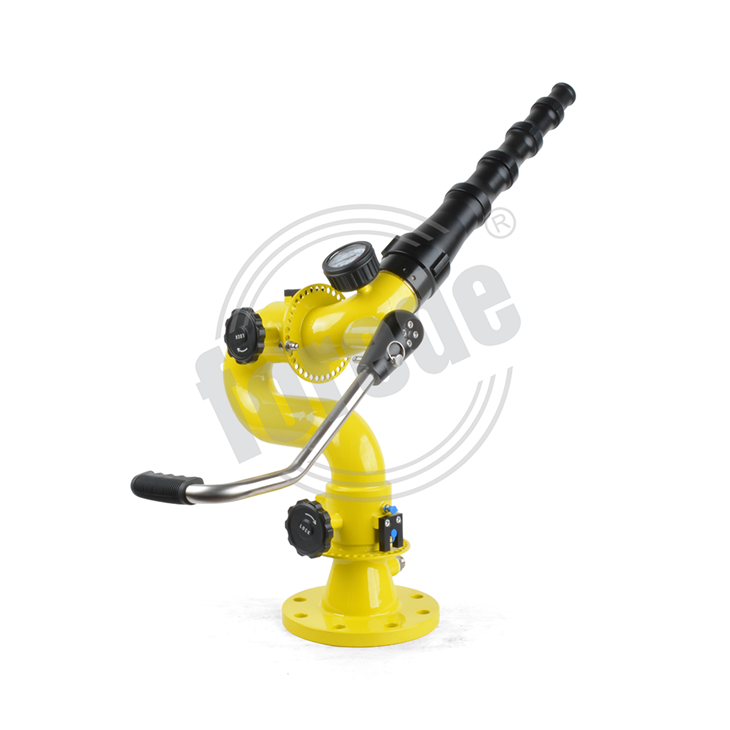

Stack Tips Water Cannon Model TFS1.AZ4 is a state-of-the-art firefighting solution designed to deliver powerful and reliable performance in critical situations. With a versatile flow rate ranging from 1200 to 3000 liters per minute, this water cannon ensures efficient and effective fire control, adapting seamlessly to various firefighting needs.
Operating at a standard working pressure of 0.8 MPa and capable of withstanding a maximum working pressure of 1.6 MPa, the TFS1.AZ4 offers robust pressure management that guarantees consistent water output. Its impressive throw range of at least 70 meters enables firefighters to reach distant flames quickly, enhancing safety and operational reach.

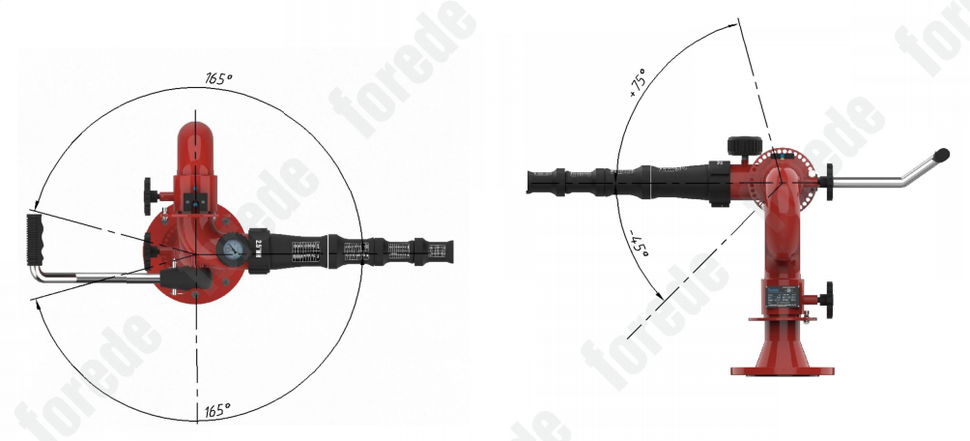

Engineered for flexibility, the water cannon features a wide horizontal rotation angle adjustable from 0° to 330°, with customizable options to meet specific requirements. Additionally, the elevation angle ranges from -45° to +75°, providing comprehensive coverage for both high and low targets. This adaptability empowers firefighting teams to tackle fires in diverse environments effectively.
Products Detailed
Products Feature
Flow Rate
The flow rate of the manual foam fire monitor tiller control is an essential feature that enables firefighters to control and direct the flow of water and foam. These flow rates are essential for fighting fires of different magnitudes and intensities.
Working Pressure
Working pressure is crucial for the efficiency and effectiveness of firefighting operations. 8 Bar ensures that the water and foam are delivered at adequate pressure to extinguish the fire.
Foam Jetting Range
The foam jetting range is the distance over which the foam can be projected onto the fire.These ranges enable firefighters to tackle fires from a safe distance and prevent injuries.
Water Jetting Range
The water jetting range is the distance over which the water can be projected onto the fire. These ranges allow firefighters to combat fires from a safe distance and prevent further damage.
Foam Expansion
The foam expansion is the number of times the foam increases in volume when mixed with water.
Outlet
All three models of manual foam fire monitor tiller controls have a 2.5" NH outlet, which is required for proper connection of the device to water sources and hoses.

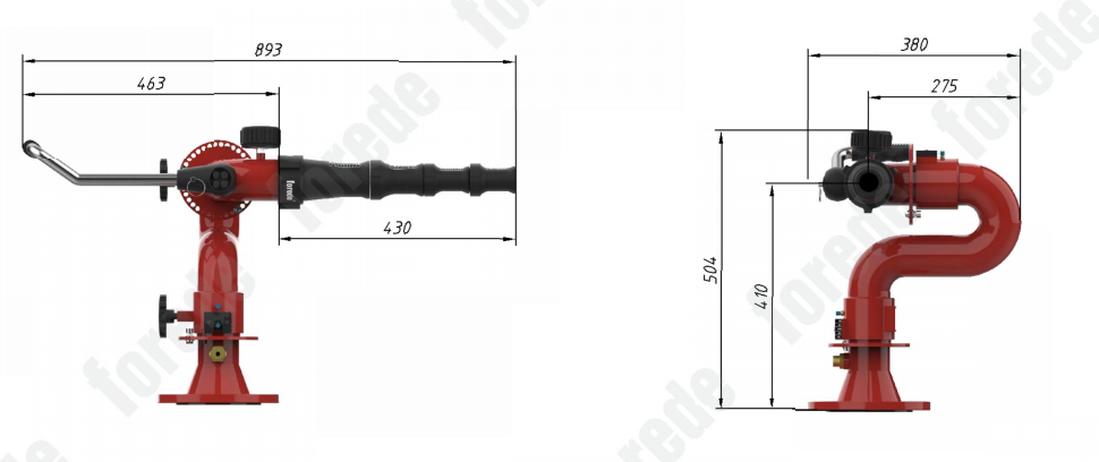

Technical Parameter
How to Maintain the Stack Tips Water Cannon?
The Stack Tips Water Cannon, Model TFS1.AZ4, is a robust and high-performance firefighting tool designed to deliver powerful water streams with flow rates ranging from 1200 to 3000 liters per minute. With a working pressure of 0.8 MPa and a maximum working pressure up to 1.6 MPa, this water cannon ensures a throw range of 70 meters or more, making it an indispensable asset for any fire protection system. To maintain its excellent performance and reliability, consistent maintenance is essential. Here are practical and positive tips to keep your water cannon operating perfectly.
#### 1. Regular Cleaning
Keeping the waterway clear of debris and sediment ensures a steady flow and prevents blockages. After each use, flush the cannon with clean water to remove any residues. Periodically inspect the inlet flange (3''/4'' BS4504 PN16 flange or customized fittings) and outlet (2.5'' NH) for any buildup and clean as necessary.
#### 2. Inspect Moving Parts
The water cannon's horizontal angle (0° to 330°) and elevation angle (-45° to +75°) capabilities rely on smooth movements. Regularly check and lubricate the swivel joints and elevation mechanisms to maintain fluid motion and avoid stiffness. Use appropriate lubricants recommended by the manufacturer to guarantee longevity.
#### 3. Check Seals and Connections
Ensuring tight and secure connections is vital for maintaining working pressure and preventing leaks. Inspect seals, gaskets, and flange bolts regularly, replacing any worn or damaged parts promptly. This helps uphold the maximum working pressure of 1.6 MPa, ensuring safety and performance.
#### 4. Monitor Flow Rate and Pressure
Periodically verify that the water cannon delivers the rated flow rate between 1200LPM and 3000LPM and operates within the specified pressure range. This monitoring confirms that the system is performing optimally and can detect early signs of irregularities.
#### 5. Customize and Upgrade
The Stack Tips Water Cannon offers customizable options for horizontal and elevation angles to suit specific operational needs. Stay in touch with suppliers to explore any new enhancements or accessories that can increase efficiency and adaptability.
#### 6. Store Properly
When not in use, store the water cannon in a clean, dry environment. Protect it from harsh weather conditions to prevent corrosion and wear, preserving its excellent condition for future use.
|
|
||||||||||||||||||||
|
|
||||||||||||||||||||
Application Area
Rescue Services
Residential Buildings
Industrial Settings
Public Space
Frequently Asked Questions
Q: Can I choose the specifications of the fire monitor?
Q: How to Use Fire Monitor?
Q: Can the Monitor Head of the Fire Monitor Be Replaced?
Q: What Are the Flange Standards for Fire Monitors?
