Sprinkler Water Truck Cannon

Sprinkler Water Truck Cannon
Product Introduction:
The forede® Brand PS8/20-30-40W-C as Sprinkler Water Truck Cannon it provides good long jet range and stable quality, the Sprinkler Water Truck cannon can be adjustable(1200-1800-2400 LPM) or constant nozzle(1200 LPM or 1800 LPM or 2400 LPM).
Send Inquiry
Description
Technical Parameters
Introduction
C1
product-1080-1080
Products Description

Sprinkler Water Truck Cannon

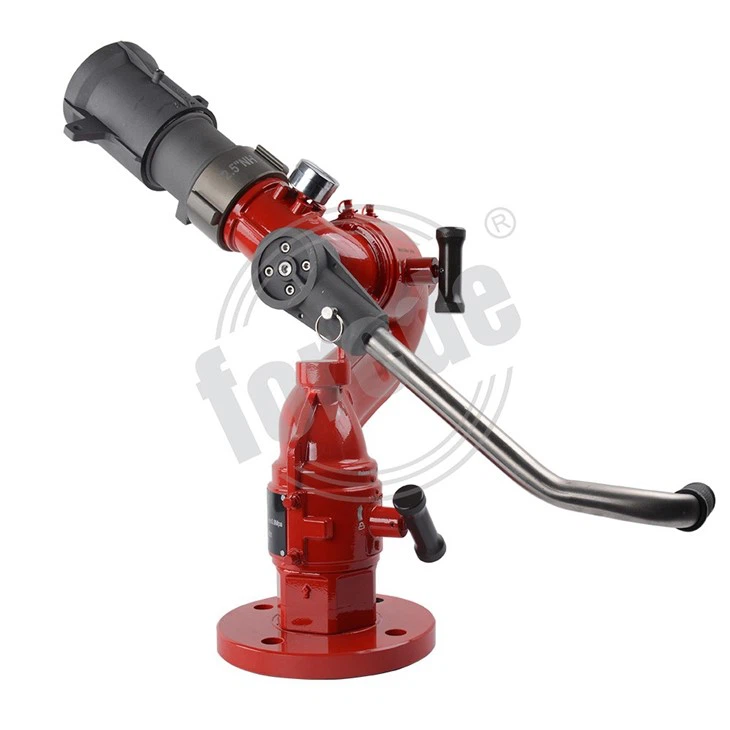

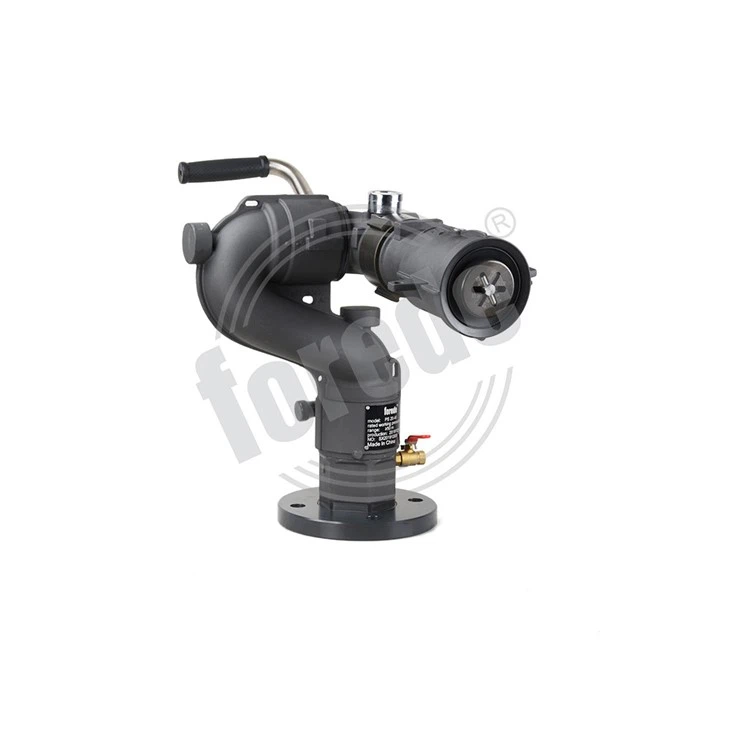

forede Sprinkler Water Truck Cannon is a fixed manually operated water cannon designed specifically for water trucks,sprinkler trucks. Engineered for agility and reliability, this compact device combines robust construction with user-friendly operation, they are a total aluminium alloy construction, the fire monitor nozzle is constant or selectable and the flow rate are 1200lpm /1800LPM / 2400LPM. The max range can reach 65 meters @ 8 Bar. the vertical motion range is -45°to +75°, the horizontal motion range is 360°. the waterway size is 2.5" , the monitor outlet is 2.5" NH male thread, and the inlet is flange 3" BS4504, also have other standards and sizes to choose.

-1


Features:
- Aluminium alloy construction,hard coated anodized;
- Flow Rate:Constant or Selectable 20 - 30 - 40 LPS;
- Jetting Pattern: Straight stream,Fog;
- Flange standard: BS4504,ANSI150,GB,etc.

Manual

Handle


0.8Mpa

Working Pressure


20-40LPS

Adjustable Flow


1 Year

Warranty

Specification


Technical Parameters
Model Number PS8/20W-C PS8/30W-C PS8/40W-C PS8/20-30-40W-C
Flow Rate 1200LPM 1800LPM 2400LPM 1200LPM-1800LPM-2400LPM Selectable
Working Pressure 8 bar 8 bar 8 bar 8 bar
Max.Reach@8 bar 45 Meters 55 Meters 60 Meters 60 Meters
Max.Fog Angle 120°
Max Range of Motion
-45° to +75° Vertically, 360° Rotation
Waterway Size 2.5''(65mm)
Monitor Outlet
2.5"(65mm) NH male thread
Monitor Inlet
Flange 3" BS4504 is standard ( other sizes & standards are available )
Material
Monitor & Nozzle - Hard coated anodized aluminium alloy
Tiller - SS304 Stainless steel

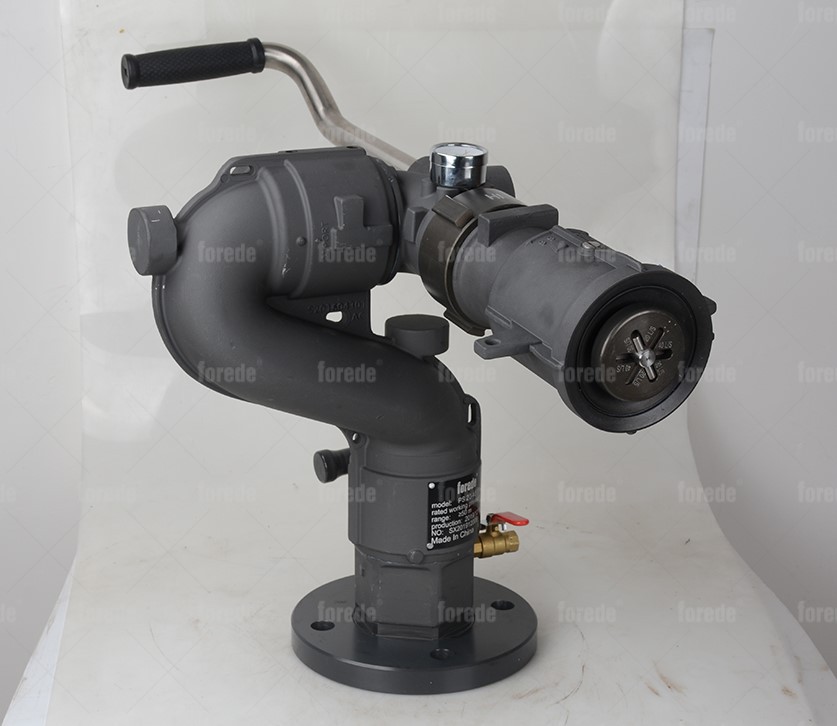

Detail Pictures
DSC5656
DSC5654
20240522154612
20240522154613
Frequently Asked Question
Frequently Asked Questions



Q: What is a Sprinkler Water Truck Cannon?



-

A:Sprinkler Water Truck Cannon by forede is a high-capacity water spraying system mounted on trucks for firefighting, dust suppression, or street cleaning. It combines a powerful water cannon with adjustable nozzles to project water over long distances (50–65 meters). Ideal for emergency response and municipal tasks, it delivers rapid, large-scale water deployment via manual or remote control.

Q. Advantages of Sprinkler Water Truck Cannons?



-

A:forede's cannons offer versatility (firefighting, dust control, irrigation), high flow rates (1,200–2,400 L/min), and rugged construction for durability. Adjustable spray patterns (jet/fog) and remote operation enhance precision. Cost-effective and easy to maintain, they ensure reliable performance in urban or remote areas.

Q. Why Choose Sprinkler Water Truck Cannons?



-

A: forede prioritizes adaptability and affordability. These cannons suit municipalities, industries, and fire brigades needing multi-functional water solutions. Robust materials withstand harsh environments, while user-friendly controls reduce operational complexity. Forede's focus on quality ensures long-term value without third-party certifications.

Q. Where to Use Sprinkler Water Truck Cannons?



-

A: Deploy in urban firefighting, mining sites, construction zones, agricultural fields, and road cleaning. Ideal for dust suppression in quarries, wildfire containment, or emergency cooling in industrial accidents. Use in areas requiring mobile, high-volume water distribution.

Q. How to Use Sprinkler Water Truck Cannons?



-

A: Mount the cannon on a truck and connect to the vehicle's water tank/pump. Adjust nozzle angle and spray mode (jet/fog) via manual levers or remote. Activate the pump to pressurize the system, directing water as needed. Post-use, drain residual water and inspect seals/nozzles. Forede provides maintenance guidelines for optimal longevity.
