Description

Technical Parameters

↵

With a flow rate of 1200 LPM for the TFS1.AZ020 and 1800 LPM for the TFS1.AZ030, both models operate efficiently at a working pressure of 0.8 MPa, and can safely handle maximum working pressures up to 1.6 MPa. This ensures strong and consistent water or foam streams, ideal for a variety of firefighting scenarios.

The impressive throw ranges of these cannons showcase their capability to reach distant flames effectively - the

TFS1.AZ020 achieves over 50 meters with water and over 55 meters with foam, while the TFS1.AZ030 extends this reach to over 60 meters with water and over 65 meters with foam.

Featuring a broad horizontal angle of 0° to 330° (with custom angle options available) and elevation angles adjustable from -45° to +75°, these cannons offer great flexibility and precision in targeting fire hazards. The waterway size is a robust 2.5" (DN65mm), ensuring a substantial volume of firefighting medium is delivered consistently.

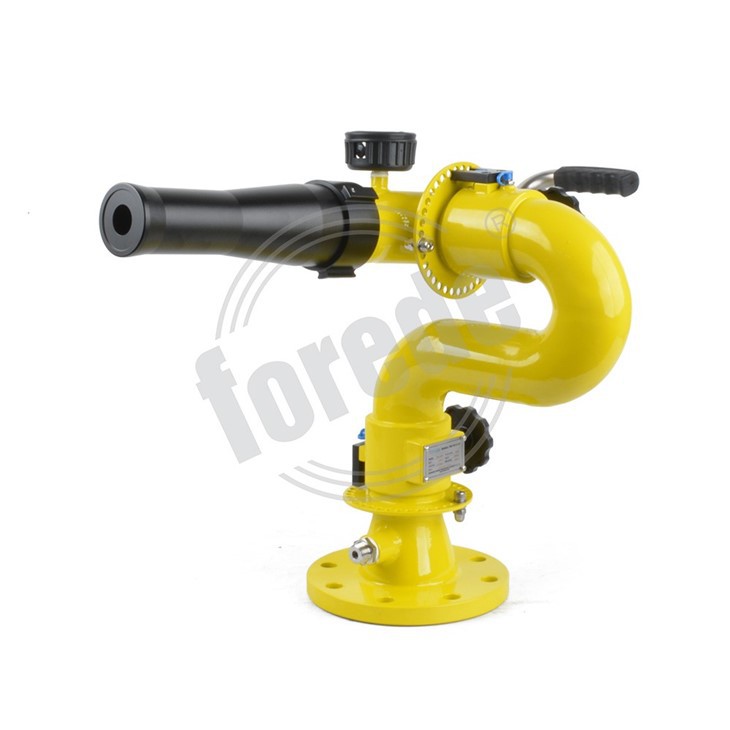

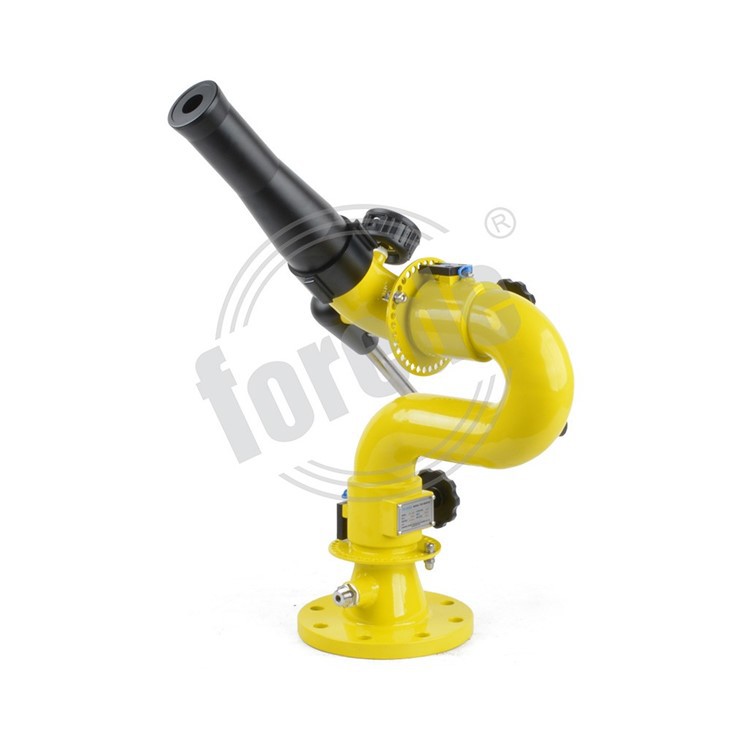

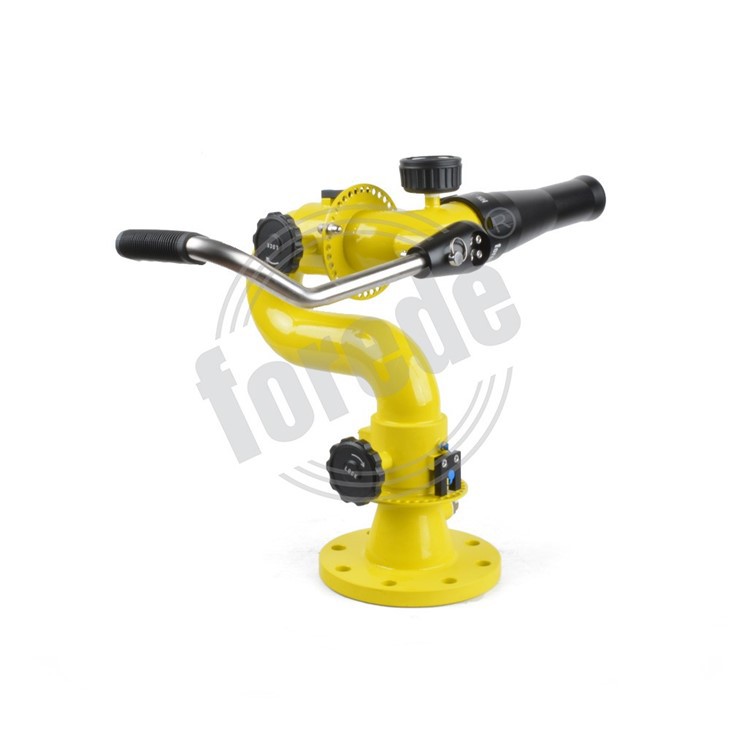

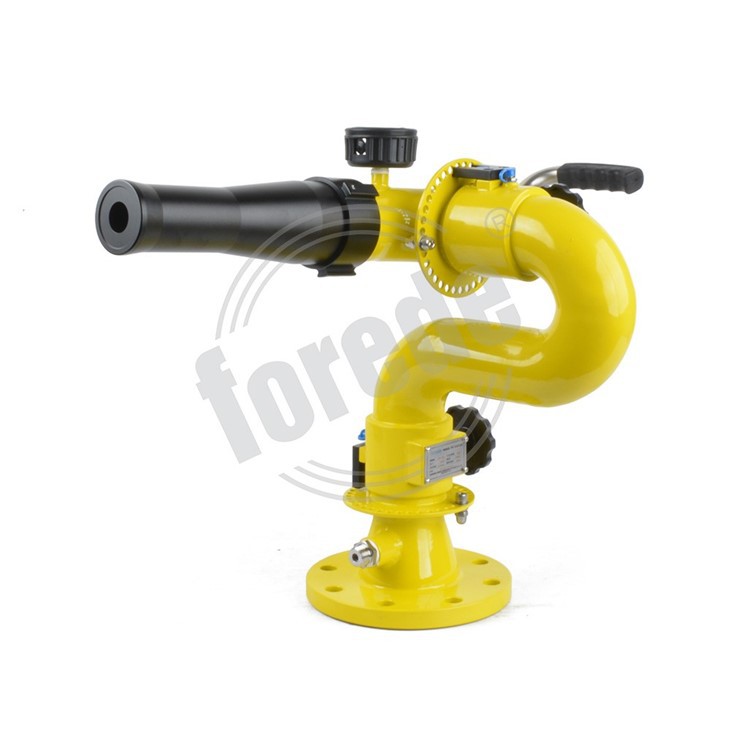

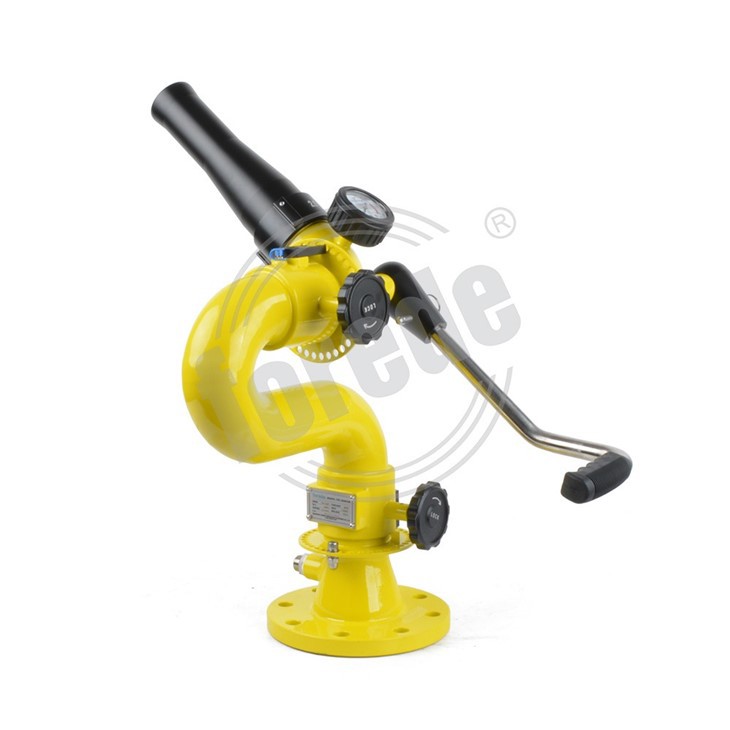

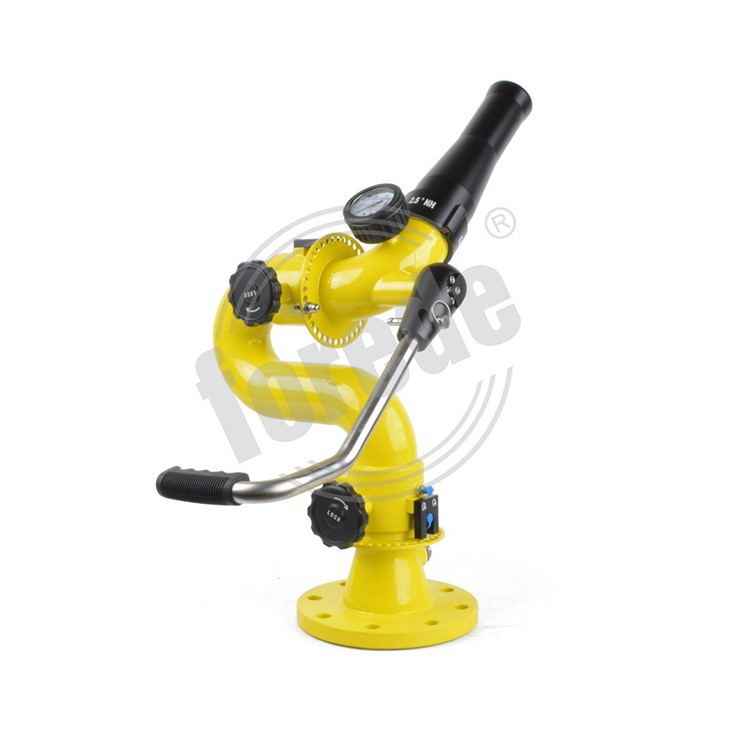

Tiller Water Truck Cannons
Tiller Water Truck Cannons
Tiller Water Truck Cannons

Size

Angle

Products Feature

Flow Rate

The flow rate of the TFS1.AZ series tiller-controlled Tiller Water Truck Cannons is a key feature for adapting to different fire scales. With options of 1200LPM and 1800LPM, it delivers precise water/foam volumes to suppress fires of varying intensities, ensuring efficient firefighting response.

Working Pressure

Working pressure is critical for reliable performance in harsh environments. 8 bar (0.8 MPa) rated working pressure ensures consistent water/foam delivery at optimal force, while the 1.6 MPa max working pressure provides safety margin for industrial firefighting operations.

Foam Jetting Range

The water jetting range of the TFS1.AZ series Tiller Water Truck Cannons enables long-distance fire suppression, with 50m for AZ020 and 60m for AZ030. These ranges allow firefighters to combat large-area fires from a safe distance, reducing exposure risk and minimizing damage spread.

Water Jetting Range

The foam jetting range is designed for Class B liquid fuel fires, reaching 55m for AZ020 and 65m for AZ030. This extended reach allows effective application of foam solution from a safe zone, ensuring reliable suppression of flammable liquid fires.

Foam Expansion

Built with a built-in stream shaper, the nozzle delivers focused, stable water/foam streams for optimal penetration. The smooth-bore anodized aluminum alloy nozzle ensures consistent flow patterns, maximizing fire suppression efficiency and cooling performance.

Outlet

The TFS1.AZ series Tiller Water Truck Cannons features a standard 2.5" NH outlet, paired with a 3"/4" BS4504 PN16 flange inlet (customizable). This universal connection design ensures easy integration with water sources, hoses, and industrial piping systems for seamless operation.

How to Maintain the Tiller Water Truck Cannons?

#### 1. **Regular Cleaning**
Keep the water cannon free from dirt, debris, and mineral buildup to maintain smooth water flow and precise aiming ability.
- Rinse cannons after each use with clean water.
- Use mild, non-corrosive cleaning agents to wipe down SS304 surfaces gently.
- Inspect and clean nozzles carefully to prevent clogging and ensure consistent spray patterns.

#### 2. **Lubrication of Moving Parts**
The horizontal and elevation angles provide versatile control, and lubrication helps maintain their smooth operation.
- Apply food-grade or marine-grade lubricant on swivel joints and elevation mechanisms regularly.
- Avoid excessive lubrication that can attract dust or debris.

#### 3. **Check Seals and Connections**
Reliable flange and outlet connections are essential for maintaining pressure and preventing leaks.
- Inspect BS4504 PN16 flange seals and gaskets periodically for wear.
- Tighten bolts securely but avoid overtightening to preserve flange integrity.
- Replace seals promptly if signs of deterioration appear to maintain a leak-free operation.

#### 4. **Pressure and Flow Monitoring**
Ensuring the water cannon operates within recommended pressures extends its service life.
- Monitor working pressure to stay within the 0.8 MPa recommended level, never exceeding the max working pressure of 1.6 MPa.
- Use flow meters to verify desired flow rates-1200 LPM for TFS1.AZ020 and 1800 LPM for TFS1.AZ030.

#### 5. **Periodic Functional Testing**
Test operation regularly to verify precise horizontal and elevation control, as well as effective throw ranges.
- Conduct routine water and foam performance tests to ensure optimal spray throw and pattern accuracy.
- Adjust angles and check rotational smoothness to confirm they meet your operational needs.

#### 6. **Protective Measures**
SS304 stainless steel offers excellent corrosion resistance; reinforcing this ensures even longer durability.
- Store water cannons in dry, sheltered environments when not in use.
- Consider protective covers to shield from dust and environmental factors.

#### 7. **Professional Inspection and Servicing**
For utmost reliability, have your equipment professionally inspected annually.
- Qualified technicians can identify potential improvements and ensure all components perform at peak efficiency.

Model	TFS1.AZ020	TFS1.AZ030
Flow Rate	1200LPM	1800LPM
Working Pressure	0.8 MPa	0.8 MPa
Max Working Pressure	1.6 MPa	1.6 MPa
Throw Range(water)	≥ 50 m	≥ 60 m
Throw Range(foam)	≥ 55 m	≥ 65 m
Horizontal Angle	0°~330° (angle customized)
Elevation Angle	-45°~+75° (angle customized)
Waterway Size	2.5'' (DN65mm)
Outlet	2.5'' NH
Inlet	3''/4'' BS4504 PN16 Flange, others customized
