Products Description
Wash Bay Water Cannon

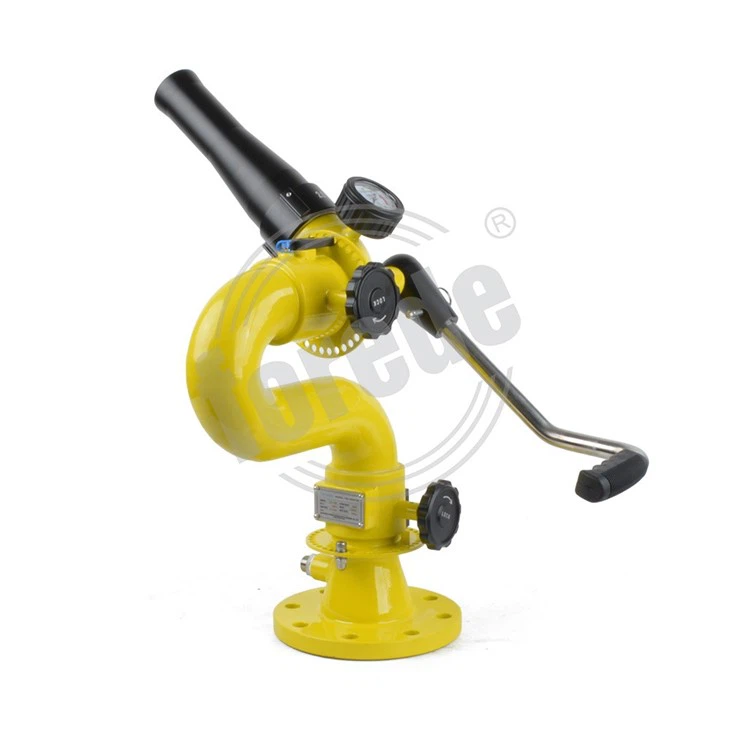

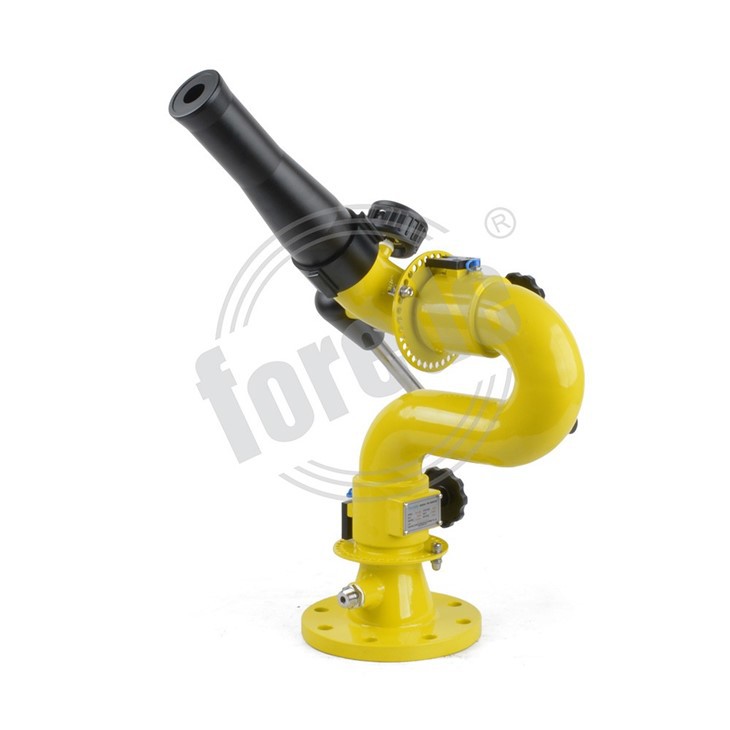

Forede Wash Bay Water Cannon is a mechanical manual spray device made of premium stainless steel, developed to meet the demand for stable and low-maintenance cleaning equipment in mining and commercial washing industries. Different from electric water cannons, this model relies entirely on manual adjustment, removing motors and control circuits to achieve simpler structure and higher environmental compatibility. The stainless steel material significantly improves resistance against rust, chemical corrosion and sediment wear, extending service life even under long-term continuous water spraying. The cannon is equipped with three mainstream fixed flow settings including 20LPS, 30LPS and 40LPS to cover daily watering and heavy-duty vehicle cleaning. Besides standard specifications, Forede provides personalized flow customization to satisfy different water pressure systems and site layouts. Its inner flow channel is finely processed to reduce water resistance, generating powerful concentrated water jets that efficiently flush mud and stubborn dirt on engineering vehicles and mining equipment. Operators can adjust the spraying angle freely to cover blind cleaning areas. Since there are no electronic components, routine maintenance only includes draining remaining water and external cleaning. Thanks to its sturdy build and cost-saving features, this manual water cannon becomes the preferred equipment for water truck refitting, fixed washing bays, quarry dust suppression and terminal vehicle cleaning across various industrial fields.
Handle
Working Pressure
Flow
Warranty
Specification
| Model Number | TFS1.AF020 | TFS1.AF030 | TFS1.AF040 |
| Flow Rate | 1200LPM | 1800LPM | 2400LPM |
| Working Pressure | 8 bar | 8 bar | 8 bar |
| Max.Reach@8 bar | 50 Meters | 60 Meters | 65 Meters |
| Max.Fog Angle | 120° | ||
| Max Range of Motion |
-45° to +75° Vertically, 360° Rotation
|
||
| Waterway Size | 2.5''(65mm) | ||
| Monitor Outlet |
2.5"(65mm) NH male thread
|
||
| Monitor Inlet |
Flange 3" BS4504 is standard ( other sizes & standards are available )
|
||
| Material |
Monitor - SS304 Stainless steel
Tiller - SS304 Stainless steel
Nozzle - Hard Anodized Aluminium Alloy
|
||
Detail Pictures
Frequently Asked Question
Frequently Asked Questions
Q: What is a wash bay water cannon?
-
A:forede Wash Bay Water Cannon is a manually operated spraying unit constructed from high-grade stainless steel. Primarily designed for wash bay stations and water truck fitting, it produces concentrated straight water jets for heavy-duty cleaning and dust suppression. It features standard fixed flow rates of 20LPS, 30LPS and 40LPS, with customizable flow specifications available upon request.
Q. Advantages of wash bay water cannon?
-
A:Built with solid stainless steel, this manual water cannon delivers excellent anti-rust and anti-corrosion performance for humid and dusty working environments. Manual rotation structure features simple operation and zero electrical components. Fixed flow output maintains steady spraying pressure, and optional customized flow sizes accommodate diverse project configurations.
Q. Why Choose wash bay water cannon?
-
A: forede manual water cannon adopts one-piece stainless steel casting for enhanced structural strength against water hammer impact. Without electric parts, it lowers failure risks and simplifies daily maintenance. The optimized internal channel minimizes pressure loss. It is cost-effective and suitable for long-term continuous use on mining sites and washing stations.
Q. Where to Use wash bay water cannon?
-
A: This manual water cannon is widely installed on watering trucks for mining dust reduction and road cleaning. It fits fixed vehicle washing bays for cleaning dump trucks and engineering vehicles. It is also applicable for quarry yards, cargo terminals and industrial zones for regular watering and dirt flushing tasks.
Q. How to Use wash bay water cannon?
-
A: Firmly mount the water cannon on the base and complete pipeline connection. Select a suitable fixed flow from 20LPS, 30LPS and 40LPS or apply customized flow. Manually adjust horizontal and vertical angles to target cleaning areas. After use, cut off water supply and drain residual water to avoid internal sediment accumulation.
