Products Description
Overview

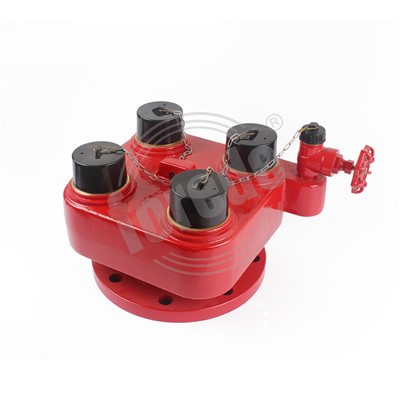

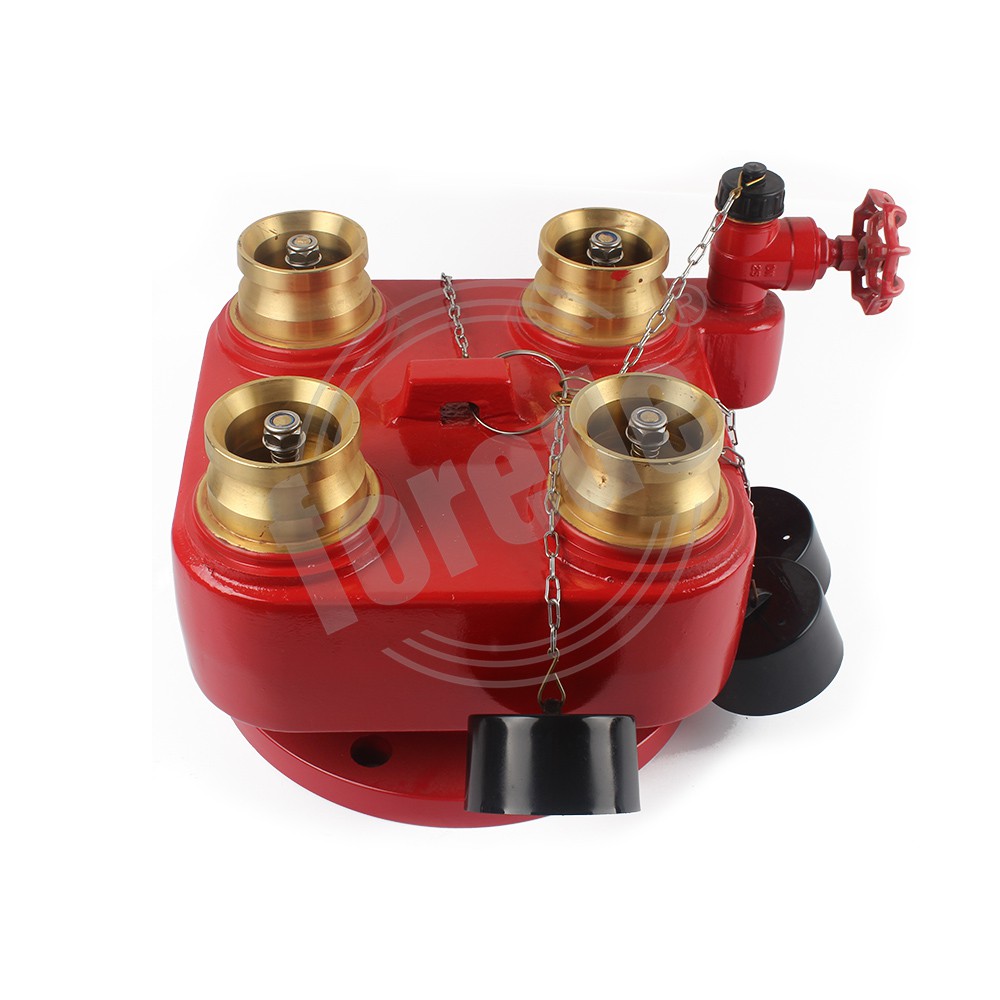

The forede® FRD-4BI 4-way fire brigade inlet connection is needed to provide speedy access to the water supply. 4-way fire brigade inlet connection is installed as independent systems which function as area or building-specific fire hydrants. It provides immediate fire protection accessibility to firefighters in fighting and putting off the fire quickly. The connection is typically mounted on the exterior of the building or within the fire cabinet and features four outlets that are connected to the fire mains. These connections are designed to be used by fire brigades to quickly and efficiently connect hoses and other firefighting equipment.
Features
Product Name: 4-way fire brigade inlet connection
Body: Ductile Iron To BS1563:2011
Inlet Adaptor: Cooper Alloy To BS12163:2011
Non-return Valve:Cooper Alloy To BS12163:2011
Chains:Stainless Steel
Cap:ABS Plastic
Gate Valve:Cooper Alloy
Products Parameters
forede® 4-way fire brigade inlet with different size and standard for option:
|
Model
|
Working Pressure |
Gate Valve
|
Inlet
|
Outlet |
|
FRD-4BIA
|
24Bar
|
1" Male W/Cap
|
6"BS4504
|
4 X 2.5"BS336 Male Inst
|
|
FRD-4BIB
|
24Bar
|
1" Male W/Cap
|
6"BS10 Table F
|
4 X 2.5"BS336 Male Inst
|
FAQ
Q: What is 4-way fire brigade inlet connection?
4-way fire brigade inlet connection also called breeching inlet, is installed as independent systems which function as area or building-specific fire hydrants. It provides immediate fire protection accessibility to firefighters in fighting and putting off the fire quickly.
Q: What is the material of 4-way fire brigade inlet connection?
FRD-4BI 4-way fire brigade inlet connection is made of ductile Iron with strong construction.
Q: What is the difference between a 2-way and 4-way fire brigade inlet connection?
The fire brigade inlet connections are fixed with the inlet connection to access the specific level of water. The 2-way brigade inlet connection has 2X2. 5" valves and a 4" outlet. The 4-way fire brigade inlet connection has 4X2.
Q: What is the function of 4-way fire brigade inlet connection?
FRD-4BI 4-way fire brigade inlet connection designed for large wet and dry riser systems and fire hydrants, the 4-way inlet breeching valve allows for easy connection to multiple water supplies to ensure a steady flow of water throughout the building for the fire brigade..
Q: Where is the 4-way fire brigade inlet connection located?
The 4-way fire brigade inlet connection shall be located on the external wall above ground level nearest to the vertical run of the riser stack. The maximum horizontal run of the water pipe between the breeching inlets and the same riser stack shall not exceed 12 m.
