Products Description
Overview

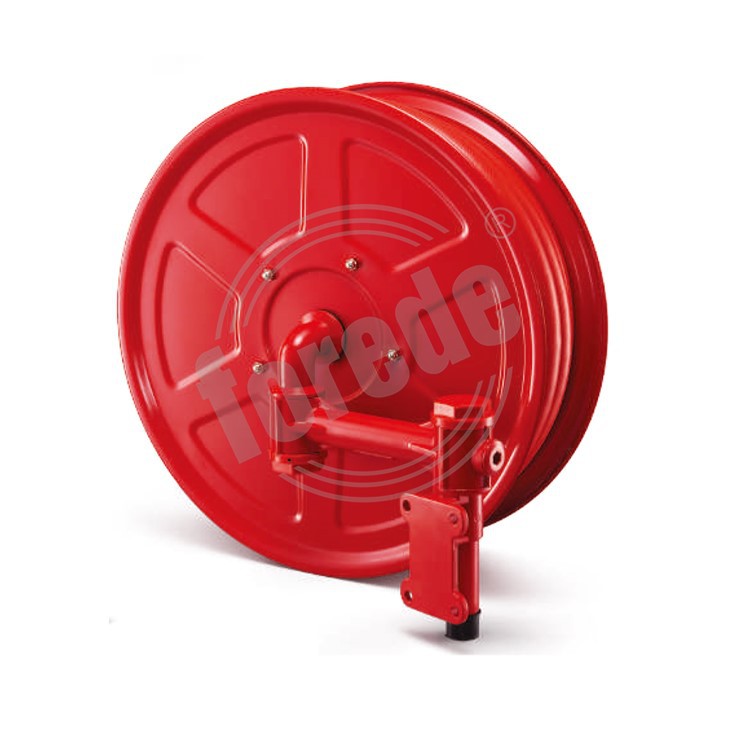

forede® JPAM550 swing arm fire hose reel is a type of fire safety device used to store and quickly deploy a fire hose. Unlike fixed reels that are rigidly attached to a wall, swing arm reels pivot on a hinged arm so the hose can be pulled out in different directions. This makes them much easier to use in tight spaces, irregular layouts, or places with obstacles.
Features
Hose Reel Type: Swing arm fire hose reel.
Inlet Valve Type: Ball Valve, Gate Valve, BSP Thread(Standard).
Working Pressure: 1.2Mpa.
Max Working Pressure: 1.8Mpa.
Drum Surface Finishing: Red powder coating.
Use with JPSQ01 nozzle, Red reel hose.
Products Parameters
forede® swing arm fire hose reel with different size and standard for option:
| Part Number | JPAM550-19-25 | JPAM550-19-30 | JPAM550-25-25 | JPAM550-25-30 |
| Disc Diameter | 550 mm | 550 mm | 550 mm | 550 mm |
| Inlet Connection | 1" BSP | 1" BSP | 1" BSP | 1" BSP |
| Reel Hose Size | 3/4" | 3/4" | 1" | 1" |
| Reel Hose Length | 25m | 30m | 25m | 30m |
| W.Pressure | 12 Bar | 12 Bar | 12 Bar | 12 Bar |
FAQ
Q: What are the main components?
Hose reel drum: Holds the fire hose.
Swing arm / pivot arm: Allows the reel to rotate horizontally.
Mounting bracket: Secures the reel to a wall or structure.
Fire hose: Usually made of rubber or synthetic fabric, rated for firefighting pressure.
Nozzle: Controls the water flow and spray pattern.
Q: What types of hoses are used?
Typically, hoses for swing arm reels are lightweight, flexible, and durable, rated for high-pressure water delivery. They can be standard fire hoses (1"–1.5" diameter) or hoses specifically designed for indoor/outdoor use.
Q: What are the advantages of a swing arm hose reel?
Wide coverage: The swing arm allows easy rotation to reach different areas.
Quick deployment: Hose can be extended and retracted quickly in emergencies.
Space-saving: Mountable on walls or columns, reducing floor space usage.
Reduced hose wear: Controlled retraction prevents kinking and damage.
Q: Where are swing arm fire hose reels typically used?
Industrial facilities
Warehouses
Commercial kitchens
Workshops and factories
Areas where fire hazards exist and hose flexibility is needed
Q: How is it installed?
Mount the bracket securely to a structurally strong wall or column.
Attach the swing arm and hose reel to the bracket.
Connect the hose inlet to a pressurized water source.
Ensure the arm rotates freely and the hose can be pulled out without obstruction.
