Products Description
Fixed Manual Fire Monitors-Adjustable Water Cannons

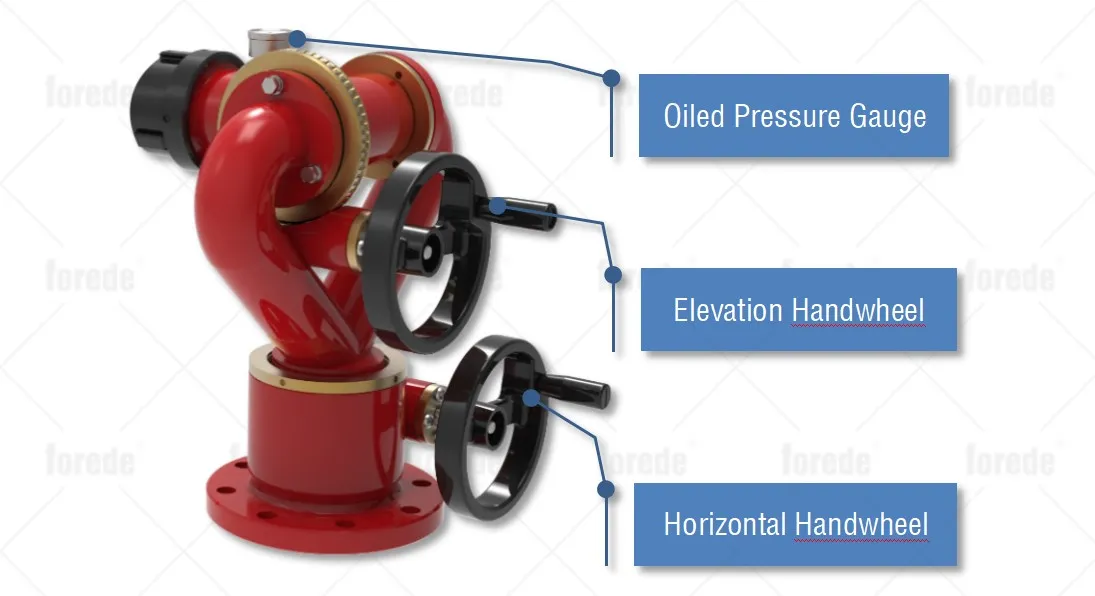

The PS10/30-50W-H Fixed Manual Fire Monitor with an Adjustable Water Cannon is an essential firefighting tool that offers reliable and efficient performance. With a flow rate of 1800-2400-3000 LPM and adjustable nozzle, it can deliver a powerful stream of water to extinguish fires quickly.

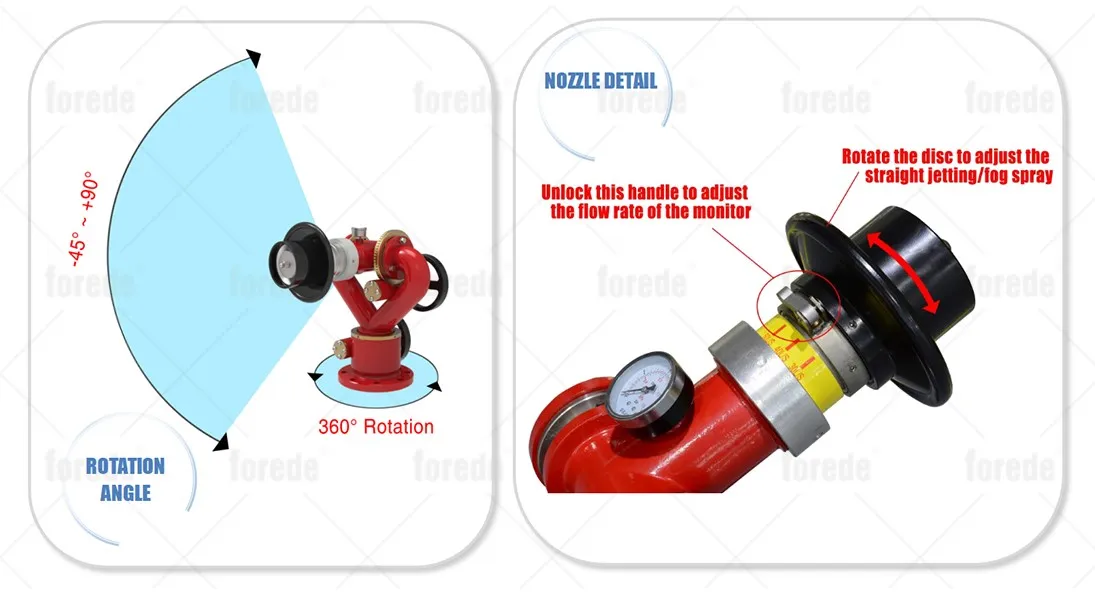

This monitor has a working pressure of 10 Bar and can reach a maximum distance of 70 meters at 3000 LPM. With a maximum fog angle of 120°, it can cover a large area and suppress fires effectively. Additionally, it can move vertically from -45° to +90° and rotate 360°, providing ultimate flexibility in firefighting operations.
The waterway size is 2.5"(65mm), and the monitor outlet is 2.5"(65mm) NH male thread. The monitor inlet is flange 4" BS4504, which is standard, but other sizes and standards are also available. The monitor and nozzle are made of strong and durable aluminum alloy, and the handwheel is made of either aluminum or ductile
Products Detailed
Technical Parameter
How To Use The Adjustable Water Cannons?
Step 1: Choose the right pressure
The first thing you need to do is to choose the right pressure for your adjustable water cannon. Most cannons come with a pressure gauge that you can adjust to varying levels. This is important because you want to make sure that the water pressure is not too high or too low.
Step 2: Set the distance
Once you've selected the right pressure for your cannon, you can set the distance of the spray. This is especially important if you have a large outdoor area to water. Adjust the nozzle to spray in a wide cone or a narrow stream, as needed. This will ensure that you are not wasting any water and that the plants are getting the right amount of water they need to thrive.
Step 3: Control the water flow
Most adjustable water cannons have a control valve that lets you control the water flow. This feature helps you conserve water and avoid flooding your lawn or plants. Turn the valve to adjust the water flow and make sure that you have enough water pressure to reach the designated area.
Step 4: Maintain your water cannon
Proper maintenance is necessary to ensure your adjustable water cannon works properly. After each use, make sure that you clean it thoroughly by running clean water through it. This will help remove any build-up or debris that can clog the nozzle or damage the cannon.
|
Model Number |
PS10/30-50W-H |
|
Flow Rate |
1800-2400-3000 LPM Adjustable Nozzle |
|
Working Pressure |
10 Bar |
|
Max. Reach @ 10 bar |
70 meters @ 3000 LPM |
|
Max. Fog Angle |
120° |
|
Max Range Of Monitor |
-45° to +90° Vertically, 360° Rotation |
|
Waterway Size |
2.5"(65mm) |
|
Monitor Outlet |
2.5" (65mm) NH male thread |
|
Monitor Inlet |
Flange 4" BS4504 is standard ( other sizes & standards are available ) |
|
Material |
Monitor & Nozzle - aluminium alloy Handwheel - Aluminium or Ductile Iron |
Application Area
Rescue Services
Residential Buildings
Industrial Settings
Public Space
Frequently Asked Questions
Q: Can I choose the specifications of the fire monitor?
Q: How to Use Fire Monitor?
Q: Can the Monitor Head of the Fire Monitor Be Replaced?
Q: What Are the Flange Standards for Fire Monitors?
