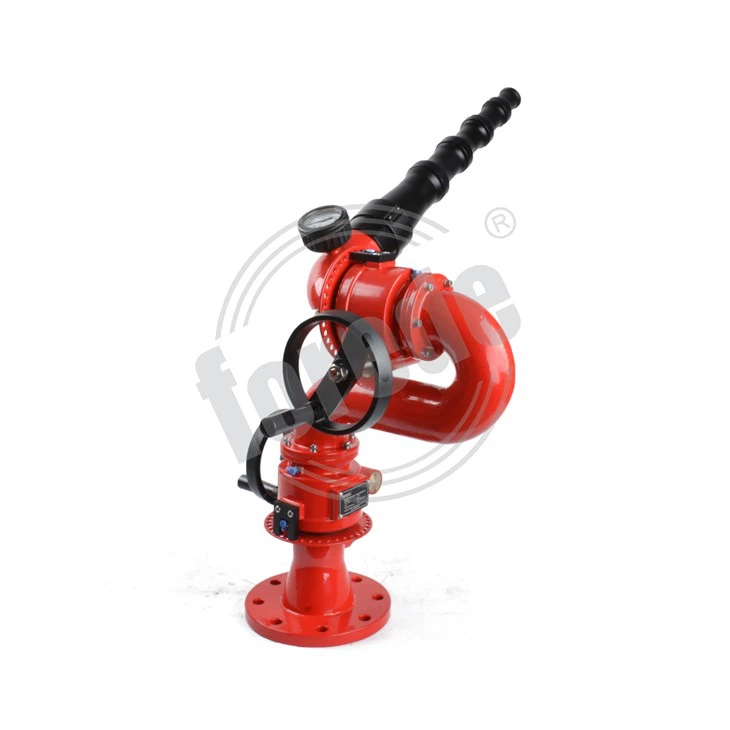

Fire Equipment Power Water Monitor is manual control with two handwheels to change the vertical swing and horizontal rotation. Handwheels are short and takes up little space, this can save little space for installing the water monitor for fire fighting system.
The specification of this water monitor for fire fighting system as follows.
The flow rete is from 1800 LPM to 3000 LPM, with a stacked-tips nozzle, the flow rate is adjustable, while the jetting pattern is constant--straight stream.
The working pressure of this water monitor for fire fighting system is 10 Bar, and the max. Jetting range of this monitor can reach 65 meters at 8 Bar.
The vertical motion range of this water monitor can reach -45° to +75°,and the horizontal rotaion of this water monitor is 360°. Of course, the motion range is changable, it can change by yourself for your demand.
The outlet size is 2.5" NH male thread, the inlet is 4" BS4504 flange, while other standard flange is available.
Water monitor for fire fighitng system is a SS304 stainless steel construction and the nozzle & handwheel are made of hard coated anodized aluminiun alloy.
Model Number | WFS2.AZ4 |
Flow Rate | 1200-3000 LPM adjustable |
Working Pressure | 8 Bar |
Max. Reach @ 10 bar | 65 meters @ 3000 LPM |
Max Range Of Monitor | -45° to +75° Vertically, 330° Rotation |
Waterway Size | 2.5"(65mm) |
Monitor Outlet | 2.5" (65mm) NH male thread |
Monitor Inlet | Flange 4" BS4504 is standard,other standard flange is available |
Material | Monitor - SS304 stainless steel Nozzle & Hand wheel - Aluminium alloy |
FAQ:
Q:How long does it take to produce the product?
A: Conventional products and small quantities can be produced within 15 days. The specific production time needs to have specific products and product quantities to confirm.
Q:Whether the product supports OEM customization
A:Yes. Please inform us formally before our production and confirm the design and other requirements firstly .
Hot Tags: fire equipment power water monitor, China, manufacturers, suppliers, wholesale, price, Industrial Fire Water Cannon, Fire Hydrant Monitor, Fire Fighting Water Cannon, Foam Monitor System, Foam Monitor, Automatic Fire Fighting Nozzle
1) 304 Stainless Steel construction;
2) Flow Rate: 20-50 LPS (Stack Tip);
3) Jetting Pattern: Straight stream;
4) 330° rotation horizontally;
5) -45° to +75° elevate vertically;
6) Flange standard: BS4504,ANSI150,GB,etc.
