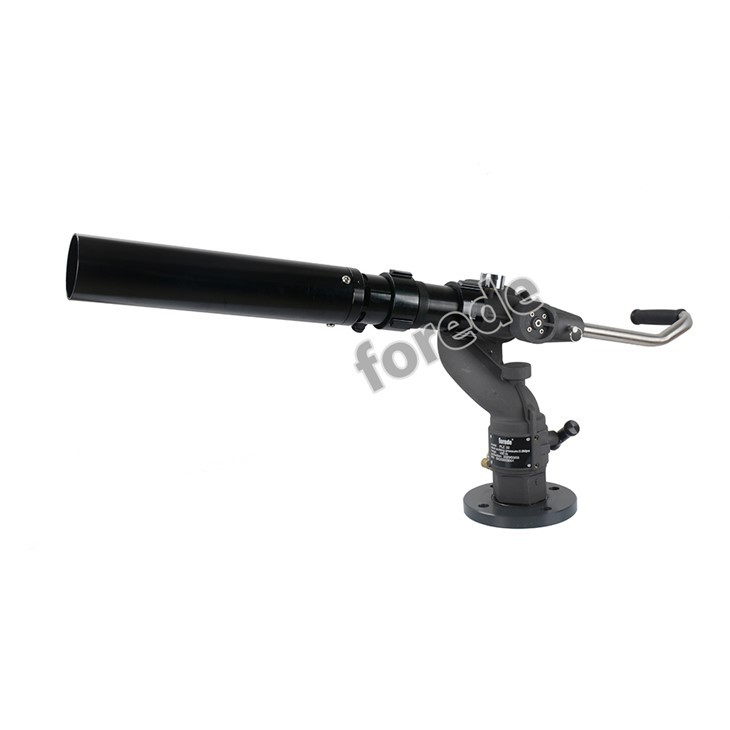

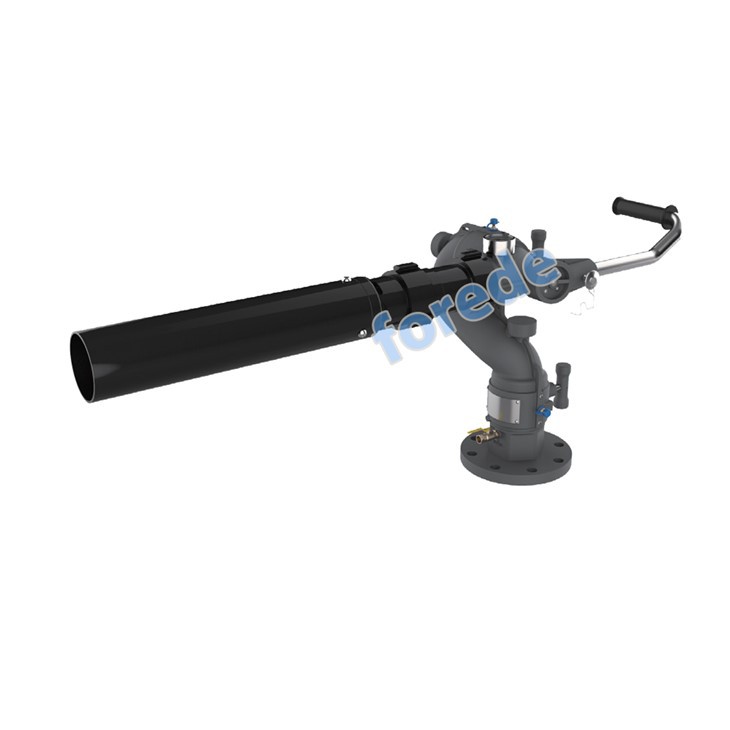

Manual control fire monitor can be used for firefighitng rescue, fire protection, cooling products, etc. A handle to operate fire monitor. Manul control fire monitor is fixed installed through flange end, it's stable. It alos can be installed in fire truck.
This is foam water monitor,the media of fire monitor both water and foam concentrate are suitable.
The flow rete is 1440LPM-1920LPM-2400LPM, with a foam nozzle, the flow rate is constant. The foam expansion times is over 6 times. Good for foam expansion.
The working pressure of this foam monitor for fire fighting is 8 Bar, and the max. Jetting range of this monitor can reach 65 meters at 2880LPM.
The vertical motion range of this water monitor can reach -45° to +75°,and the horizontal rotaion of this water monitor is 360°. Of course, the motion range is changable, it can change by yourself for your demand.
The outlet size is 2.5" NH female/male thread, the inlet is 3" flange, while other standard flange is available.
Foam monitor for fire fighting is an aluminium alloy construction, while the tiller handle is made of stainless steel.
Model | PL8/24-C | PL8/32-C | PL8/40-C |
Flow Rate | 1440 LPM | 1920 LPM | 2400 LPM |
Working pressure | 8 Bar | 8 Bar | 8 Bar |
Foam Jetting Range | 45 meters | 55 meters | 65 meters |
Water Jetting Range | 40 meters | 50 meters | 60 meters |
Foam Expansion | ≧ 6 times | ≧ 6 times | ≧ 6 times |
Rotation Horizontally | 360° | 360° | 360° |
Elevate Vertically | -45° to +75° | -45° to +75° | -45° to +75° |
Inlet | DN80 (3") | DN80 (3") | DN80 (3") |
Outlet | 2.5" NH | 2.5" NH | 2.5" NH |
FAQ:
Q:How to have an order?
A:Before customers have an order, please tell us more details of the products you required which are good for us to introduce you or help you choose the best product.
Q:Do you have any MOQ limit?
A:For conventional products, Low MOQ, OEM products request 30-40days.
Hot Tags: foam water monitor with tiller control, China, manufacturers, suppliers, wholesale, price, Truck Mounted Water Cannon, Selectable Fire Nozzle, Open Spray Nozzle, Water Monitor Fire Fighting, Industrial Fire Monitors, Fire Hydrant Foam Monitor
1) Aluminium alloy construction;
2) Tiller Control;
3) Flow Rate: 24/32/40 LPS (optional);
4) Available for water and foam both;
5) 360° rotation horizontally;
6) -45° to +75° elevate vertically;
7) Flange standard: BS4504,ANSI150,GB,etc.
