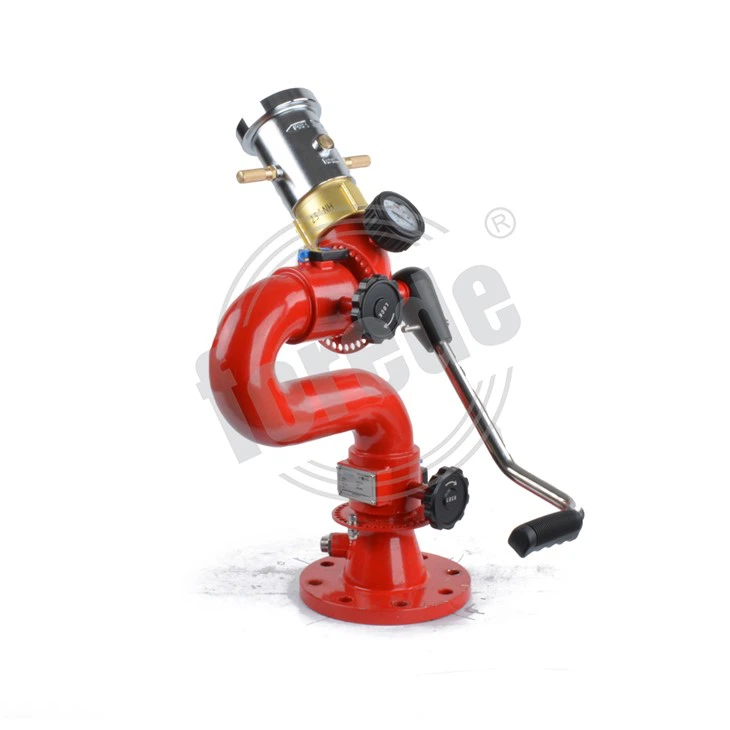

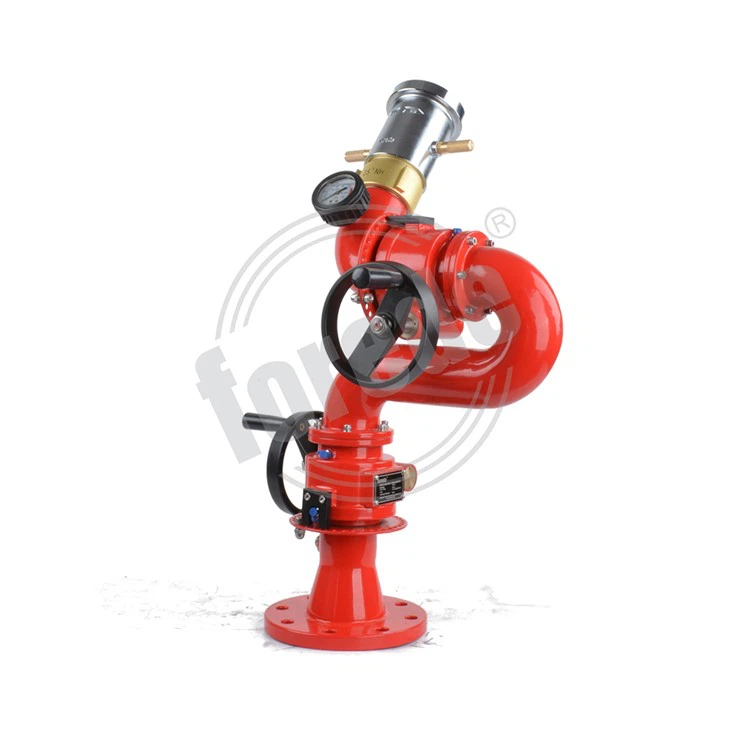

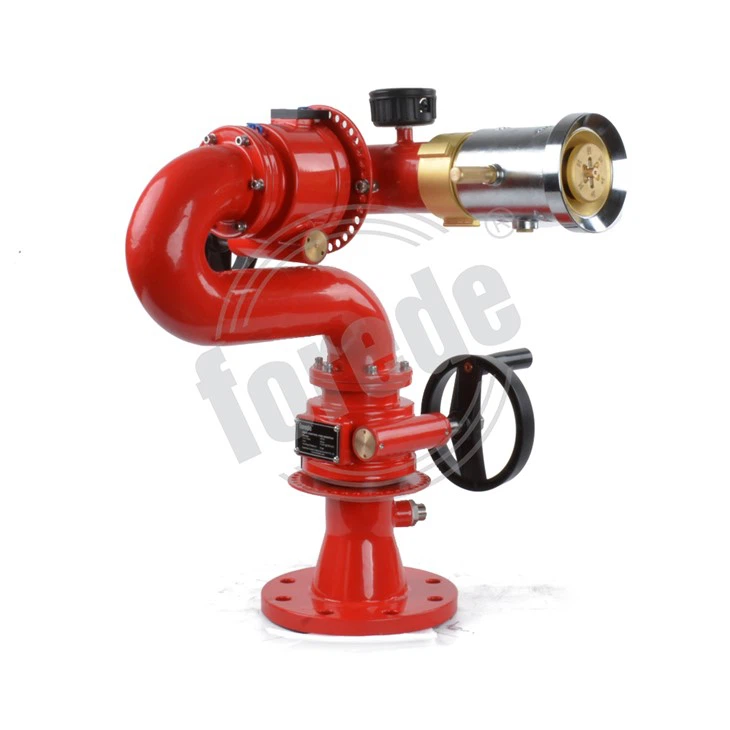

FOREDE PS20-40T Fire Fighting Monitor provides flows of up to 2400LPM, the nozzle is adjustable during 1200-1800-2400 LPM, with good performance and stable quality all the time.
FOREDE PS20-40T with 360° horizontal rotation and elevation vertical of 135° travel from - 45 °to 90 °, PS20-40T controlled by Stainless steel tiller handle.
A lightweight and highly durable flow-efficient monitor due to the Aluminum Alloy with Hard Anodized workmanship. PS20-40T with few and easy maintenance, suitable for good range of Industries.
| Material | Body | Aluminum alloy | |
| Nozzle | Aluminum alloy | ||
| Steam sharper | Aluminum alloy | ||
| Handle | Stainless steel | ||
| Flow rate | 1200 LPM | 1800 LPM | 2400 LPM |
| Jetting Range @ 1.0 MPa | 48 meters | 55 meters | 60 meters |
| Working pressure | 1.0 MPa | ||
| Max.fog spray angle | 120° | ||
| Rotation | 360° | ||
| Elevate | -45° to +90° | ||
| Inlet | 4” in flange as standard, 3” is also available | ||
| Outlet | 2.5” NH | ||
| Weight | 16 KGS | ||
Hot Tags: manual control fire fighting water monitor with selectable flow rate, China, manufacturers, suppliers, wholesale, price, Manual Foam Monitor, Portable Fire Water Monitor, Fire Water Cannon, Manual Water Cannon, Manual Fire Water Monitor, Fixed Fire Water Monitor
1) Aluminum alloy construction.
2) 1200-1800-2400 LPM flow rate (adjustable).
3) Available for fog spray and straight jetting.
4) 360°rotation,-45°to + 90°Elevate
5) Easy to service and repair.
6) Stainless steel handle control.
