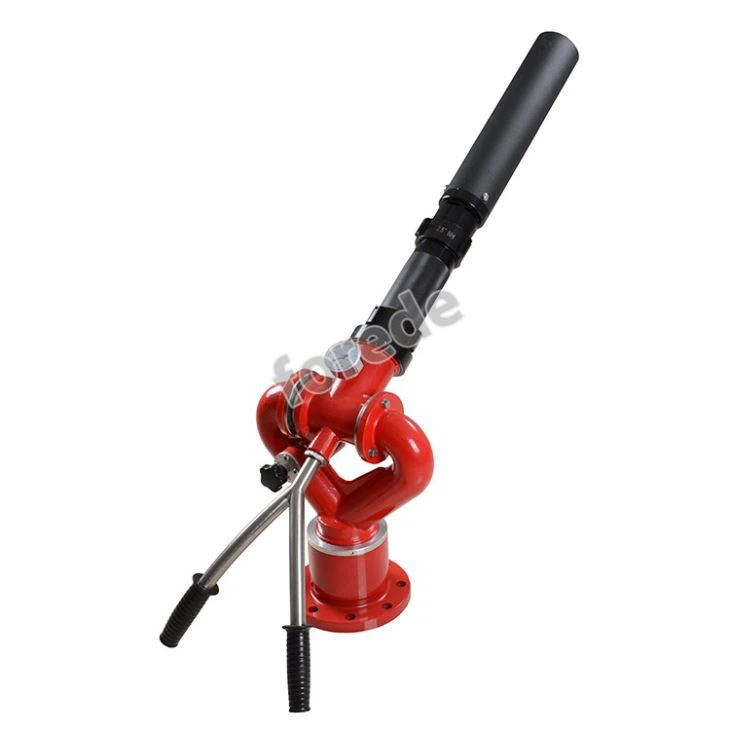

The Foam Water Monitor is a hand level monitor featuring separate foam and water cannons for maximum performance. PL24-64T and PLZ24-64T are good quality with competitive cost, highly welcome among customer.
FOREDE PL24-64T Foam monitor can be used as water monitor and foam monitor.
PLZ24-64T Foam monitor nozzle attached with self inducting.
Flow rate range from 24L/S to 64L/S, it’s constant flow, details as below form.
Model | PLZ24T | PLZ32T | PLZ40T | PLZ48T | PLZ64T |
Flow Rate | 1440 LPM | 1920 LPM | 2400 LPM | 2880 LPM | 3840 LPM |
Working Pressure | 1.0 MPa | 1.0 MPa | 1.0 MPa | 1.0 MPa | 1.2 MPa |
Foam Jetting Range | 40 meters | 45 meters | 50 meters | 55 meters | 60 meters |
Water Jetting Range | 45 meters | 50 meters | 55 meters | 60 meters | 65 meters |
Foaming expansion | ≧ 6 times | ||||
25% drainage time(20℃) | ≧ 2.5 minutes | ||||
Rotation | 360° | ||||
Elevate | -45° to +90° | ||||
Inlet | 4” in flange as standard, 3” is also available (ANSI,BS4504,JIS,etc) | ||||
Outlet | 2.5” NH | ||||
Weight | 17 KGS | ||||
Hot Tags: water foam monitor with self inducting optional, China, manufacturers, suppliers, wholesale, price, Multi Purpose Fire Nozzles, Fire Water Monitor Fire Fighting, Fixed Manual Control Fire Monitor, Cast Iron Fire Hydrant, Fixed Water Monitor, Foam Water Cannon
1) Aluminum alloy construction.
2) 24L/S-64L/S flow rate (constant flow).
3) 360°rotation,-45°to + 90°Elevate
4) Easy to service and repair.
5) Stainless steel handle control.
6) Light weight stable quality.
7) Used both for water and foam.
8) Competitive price in market.
