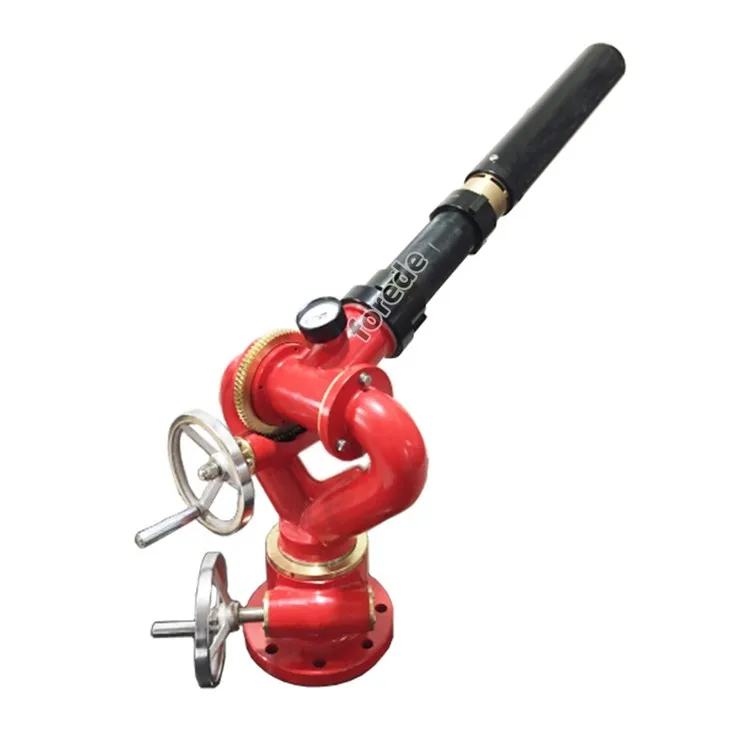

Fixed Manual Monitor Series-Geared Water Foam Monitor is a type of firefighting equipment designed to efficiently suppress fires in industrial and commercial settings. It operates by using water and foam to extinguish flames and is equipped with a gear-driven mechanism for accurate aim and enhanced range. This powerful equipment is essential for effective fire protection, ensuring the safety of individuals and property.
Max.Flow Rate
Flow Style
Max.W. Pressure
Max.Fo. Jetting Range
product parameters
|
Model |
TFS1.SF020 |
TFS1.SF030 |
TFS1.SF040 |
TFS1.SS040 |
|
Flow Rate |
1200LPM |
1800LPM |
2400LPM |
1200-1800-2400LPM |
|
Working Pressure |
0.8 MPa |
0.8 MPa |
0.8 MPa |
0.8 MPa |
|
Max Working Pressure |
1.6 MPa |
1.6 MPa |
1.6 MPa |
1.6 MPa |
|
Throw Range(water) |
≥ 50 m |
≥ 60 m |
≥ 65 m |
≥ 50-65 m |
|
Throw Range(foam) |
≥ 45 m |
≥ 55 m |
≥ 60 m |
≥ 45-60 m |
|
Horizontal Angle |
0°~330° (angle customized) |
|||
|
Elevation Angle |
-45°~+75° (angle customized) |
|||
|
Waterway Size |
2.5'' (DN65mm) |
|||
|
Outlet |
2.5'' NH |
|||
|
Inlet |
3''/4'' BS4504 PN16 Flange, others customized |
|||
