Products Description
Forede Fixed Fire Monitor
The FOREDE® Brand PS-WE Series Fire Water Monitor with two hand wheels to control the elevation and horizontal movement. It provides good long jet range and stable quality, flow rate from 3000 LPM up to 6000 LPM.
A lightweight and highly durable flow-efficient monitor due to the Aluminum Alloy with Hard Anodized workmanship. PS-WE Series with few and easy maintenance, suitable for good range of Industries.
Technical Parameter
|
Model |
PS8/50W-E | PS8/60W-E | PS10/80W-E | PS10/100W-E |
|
Flow Rate |
3000 LPM
|
3600 LPM
|
4800 LPM
|
6000 LPM
|
|
Working Pressure |
0.85MPa |
0.95 MPa |
1.0 MPa |
1.2 MPa |
|
Water Jetting Range |
≥ 75 meters |
≥ 75 meters |
≥ 85 meters |
≥ 85 meters |
|
Max. Fog Angle |
120° |
|||
|
Horizontal Rotation Angle |
0~360° |
|||
|

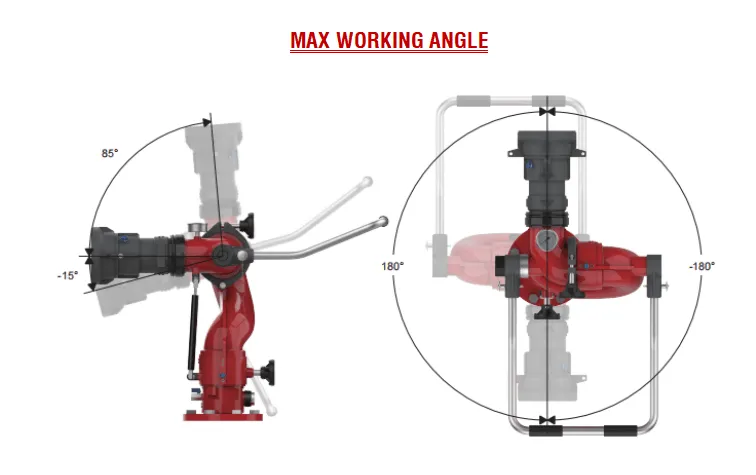

Elevation Rotation Angle |
-15° to +85° Vertically
|
|||
|
Waterway Size |
3"(80mm)
|
|||
|
Outlet |
3" (80mm) NH male thread
|
|||
|
Inlet |
Flange 4" BS4504 is standard ( other sizes & standards are available ) |
|||

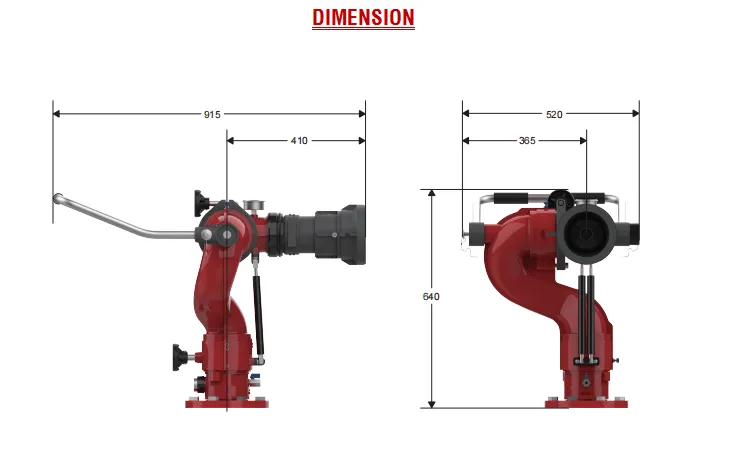

Detail View
FAQ
Frequently Asked Questions
Q: How water cannon works?
+
-
A: A water cannon works by pressurizing water through a high-pressure pump and expelling it through a specialized nozzle. The water can be used for various purposes, such as dispersing crowds, fighting fires, and washing streets and buildings. It is an efficient and effective tool that helps protect citizens and property from harm.
Q: How to mail the samples?
+
-
A: Small samples are usually sent by express (DHL, UPS, FEDEX, TNT). If the buyer has other opinions, both parties can discuss with each other.
Q: Whether the product supports OEM customization
+
-
A: Yes. Please inform us formally before our production and confirm the design and other requirements firstly .
Q: What is the production time of the sample?
-
A:Generally speaking, it isn't a large-scale purchase, and the lead time about 15 working days.Of course, having an urgent order, please reconfirm with us.
Q: Is the sample provided for free?
+
-
A: A few small products like sprinkler decorative covers can be provided for free, but the buyer needs to pay for the shipping. Other products need to be confirmed according to the specific situation.
Factory View
Our factory & Warehouse
Recommend Product
Forede Main Product
Main Products
Nozzles
Monitors
Foam System
Fire Sprinkler
General Valves
Fire Hydrant
Contact Us
Hot Tags: forede fixed fire monitor, China, manufacturers, suppliers, wholesale, price, Automatic Fire Monitor, Manual Foam Monitor, Foam Monitor, Foam Water Cannon, Cast Iron Fire Hydrant, Fire Truck Monitor
Forede Fixed Fire Monitor
Features:
* Aluminium alloy construction,hard coated anodized;
* Flow Rate: 50/60/80/100 LPS (Optional);
* Jetting Pattern: Straight stream,Fog;
* Flange standard: BS4504,ANSI150,GB,etc.
