Products Description

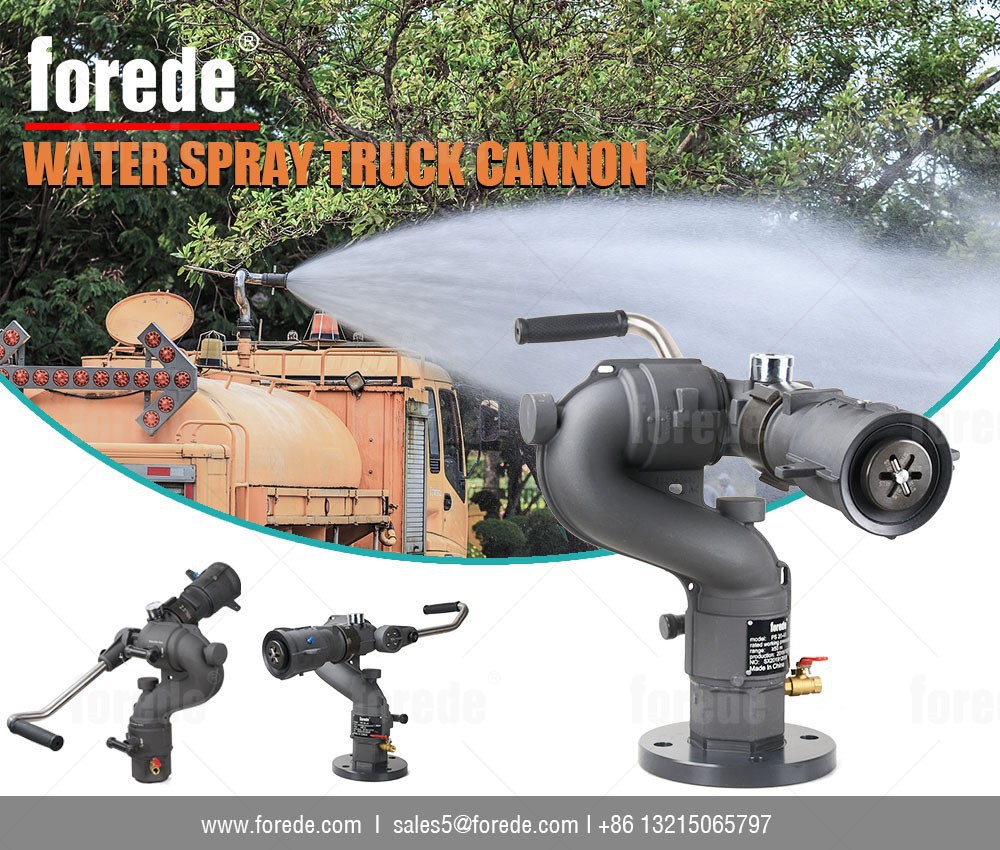

The FOREDE® Brand PS-B as Fire Fighting Monitor, it provides good long jet range and stable quality, the fire monitor nozzle can be adjustable(1200-1800-2400 LPM) or constant nozzle(1200 LPM or 1800 LPM or 2400 LPM).
Products Parameters
|
Model |
PS20A |
PS30A |
PS40A |
PS20-40A |
|
Flow Rate |
1200LPM (Adjustable) |
1800LPM (Adjustable) |
2400LPM (Adjustable) |
1200-1800-2400LPM (Adjustable) |
|
Working Pressure |
0.8 MPa |
0.8 MPa |
0.8 MPa |
0.8 MPa |
|
Water Jetting Range |
≥ 45 meters |
≥ 55 meters |
≥ 60 meters |
≥ 60 meters |
|
Max. Fog Angle |
120° |
|||
|
Horizontal Rotation Angle |
0~360° |
|||
|
Elevation Rotation Angle |
-45° ~ +75° |
|||
|
Waterway Size |
2.5" (65mm) |
|||
|
Outlet |
2.5" NH Connection |
|||
|
Inlet |
3" BS 4504 Flange is standard (Thread inlet, other sizes & std. are available) |
|||
Material Monitor & Nozzle - Hard coated anodized aluminium alloy
Tiller - SS304 Stainless steel
FAQ
Q:Do you have any MOQ limit?
A:For conventional products, Low MOQ, OEM products request 30-40days.
Q:What about the lead time?
A:Sample needs 7-15 days, mass production time needs 30-40 weeks for order quantity more than 1 container.
Q: How To Order ?
A: Step 1, please tell us what model and quantity you need;
Step 2, then we will make a Pl for you to confirm the order details; Step 3, when we confirmedeverything, can arrange the payment; Step 4, finally we deliver the goods within the stipulated time.
