The specification please see following:

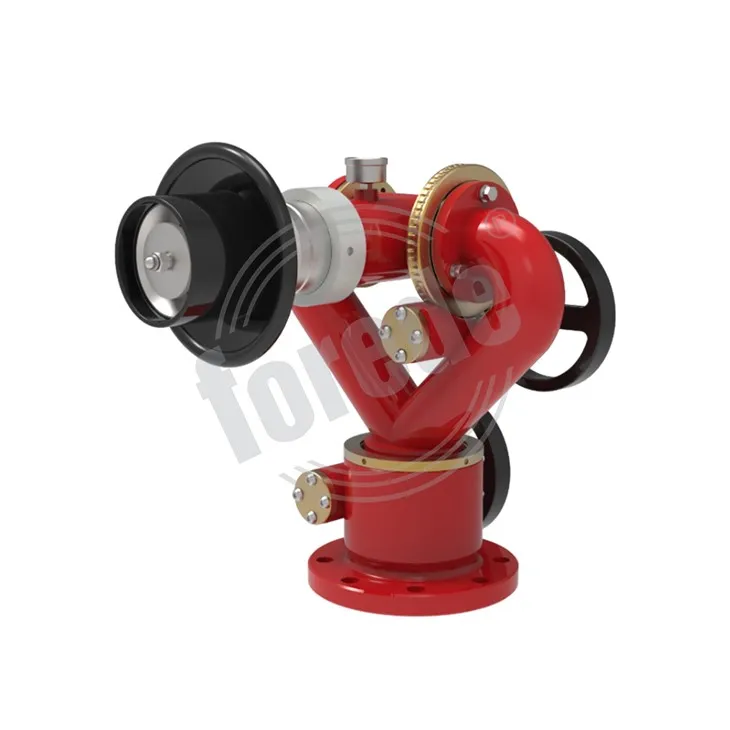

Model Number | PS10/30-50W-H | |
Material | Aluminum alloy | |
Flow Rate | 1800-2400-3000LPM Adjustable Nozzle | |
Working pressure | 10 bar | |
Max. Reach@10 bar | 65meters@3000LPM | |
Max. Fog angle | 120° | |
Range of the monitor | 360°horizontal rotation,-45°/+90°vertical elevate | |
Water way | 2.5(65mm)" | |
Inlet | Flange 4''BS4504 is standard ,other standard flange is available | |
Outlet | 2.5"(65mm) NH male thread | |
Material | Monitor＆Nozzle-aluminium alloy Handwheel-Aluminium or Ductile Iron | |
FAQ :
Q: What is the minimum order quantity of the product?
A:For conventional products, Low MOQ.
Q:Can I have a sample order?
A:Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: How do you deliver the goods and how long does it take to arrive?
A:We usually deliver mass order by sea and air, delivery time is depended on the carrier,urgent trail order usually deliver by DHL, UPS, FedEx or TNT. It usually takes 5-7 days to arrive. Railway also optional. In fact, the delivery method depends on the quantity.
Hot Tags: manualfire water monitor, China, manufacturers, suppliers, wholesale, price, Fixed Fire Monitor, Industrial Fire Monitors, Jet Water Cannon, Fixed Manual Water Monitor, Foam Water Cannon, Fire Water Cannon
1) Aluminium alloy construction.
2) Flow Rate ajustable.
3) Jetting Patternl :Straight Stream,Fog.
4) 360°Rotation horizontally,-45°/+90°Elevate vertically
5) Easy to service and repair.
6) Flange standard:BS4504,ANSI150,GB,etc
