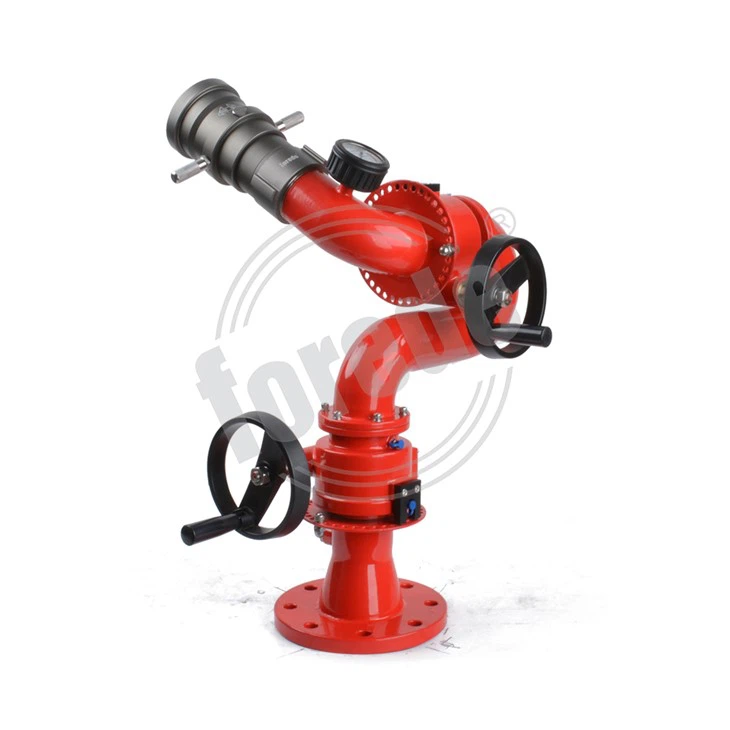

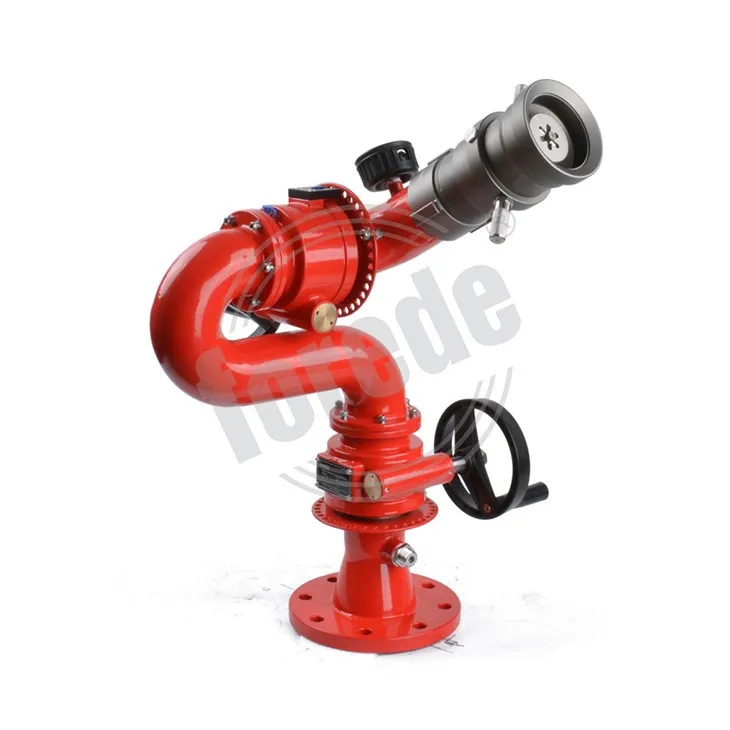

Forede PS30-50H Series fire monitor construction by aluminium alloy. Fire Water Manual Type Monitor is a high volume flow rate manual control fixed fire water monitor with handwheel, operator can change the direction of this fire water monitor by vertically elevate or horizontal rotate.
The specification please see following:
Model Number | PS10/30-50W-H | |
Material | Aluminum alloy | |
Flow Rate | 1800-2400-3000LPM Adjustable Nozzle | |
Working pressure | 10 bar | |
Max. Reach@10 bar | 65meters@3000LPM | |
Max. Fog angle | 120° | |
Range of the monitor | 360°horizontal rotation,-45°/+90°vertical elevate | |
Water way | 2.5(65mm)" | |
Inlet | Flange 4''BS4504 is standard ,other standard flange is available | |
Outlet | 2.5"(65mm) NH male thread | |
Material | Monitor＆Nozzle-aluminium alloy Handwheel-Aluminium or Ductile Iron | |
FAQ for Fire Water Manual Type Monitorr:
Q. Can you accept OEM?
A:Yes, we do customized design for our clients.
Q. Do you have warranty?
A: Yes, all products have one year warranty.
Q:What about the lead time?
A:Most of samples need 7-15 days, mass production time needs 30-40 weeks for order quantity more than 1 container.
Hot Tags: fire water manual type monitor, China, manufacturers, suppliers, wholesale, price, Foam Monitor Fire Fighting, Fixed Fire Water Monitor, Foam Monitor, Water Monitor Fire Fighting System, Fixed Water Monitor, Foam Monitor System
1) Aluminium alloy construction.
2) Flow Rate ajustable.
3) Jetting Patternl :Straight Stream,Fog.
4) 360°Rotation horizontally,-45°/+90°Elevate vertically
5) Easy to service and repair.
6) Flange standard:BS4504,ANSI150,GB,etc
